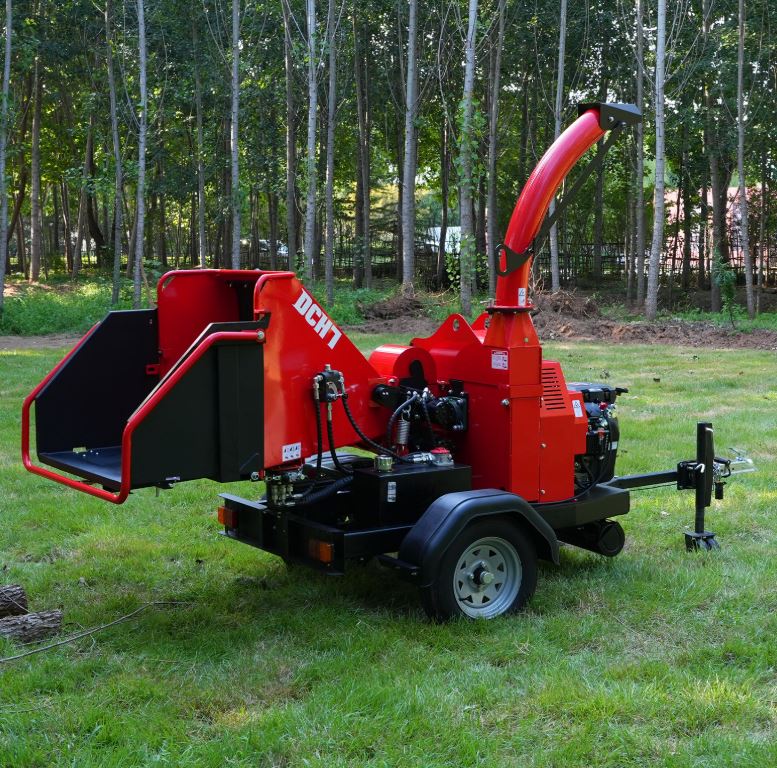

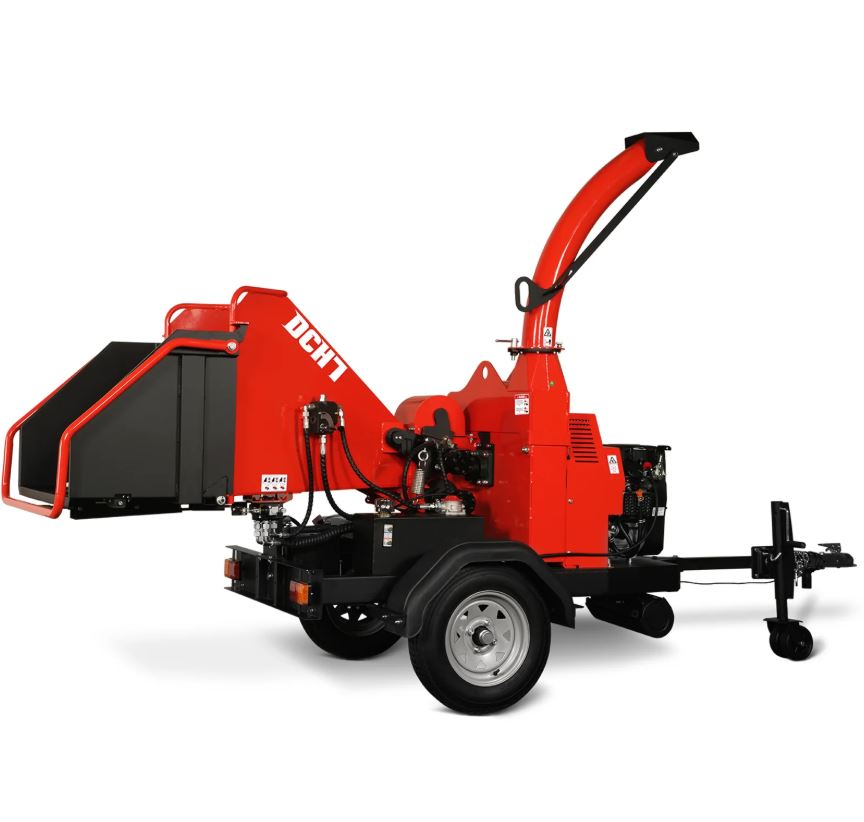

25hp 750cc Twin Cylinder ZONSEN Petrol Engine 7" Hydraulic Feeding Wood Chipper, DCH7
2
sold in last
8
hours

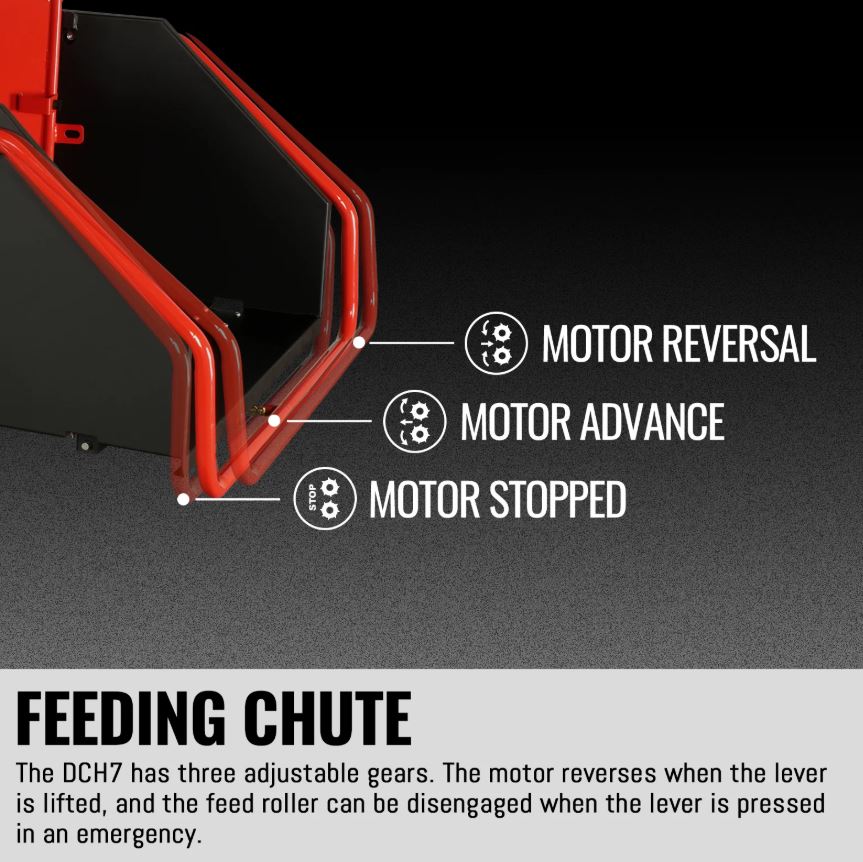

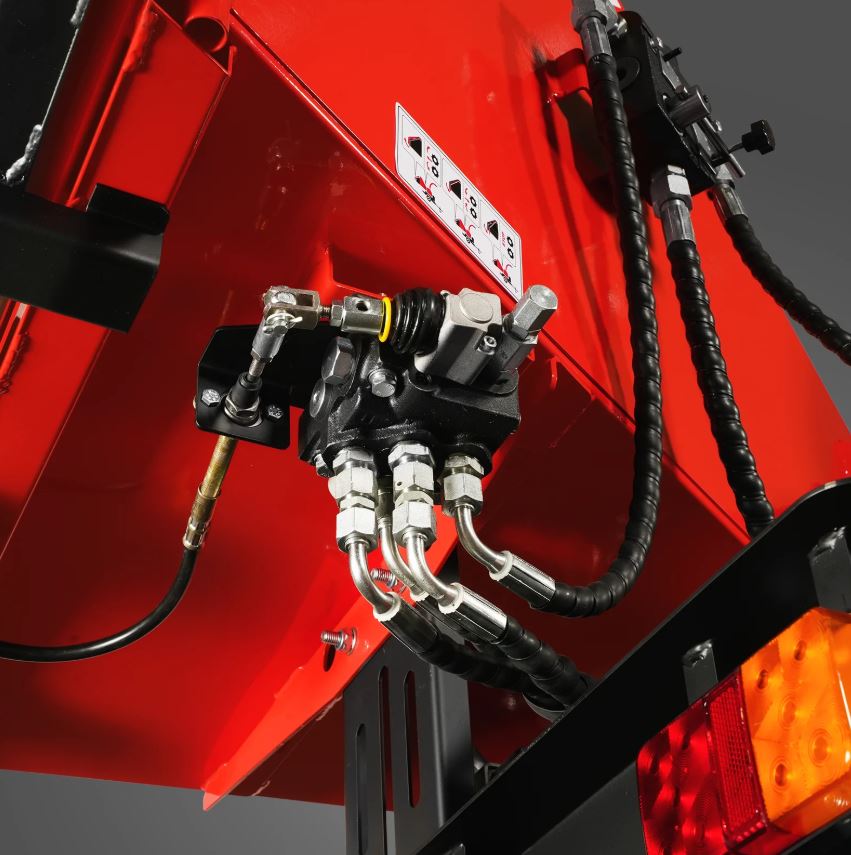

- MechMaxx 7" Disc Brush Chipper, Highway Towable with torsion axles and Lights, Electric Start, Dual Variable Speed Hydraulic Infeed
- This 7" chipper can stand up to commercial use. Great for Landscapers, Small Tree Service Jobs, Homeowners, Orchards, Rental Yards.
- Gasoline/Petrol: Clean, fresh, unleaded gasoline
- Applicable hydraulic oil type: ISO VG 46 hydraulic oil.
- Engine oil type: 10W-30
- *Shipped with NO fluids. Must add own fluid
Specifications

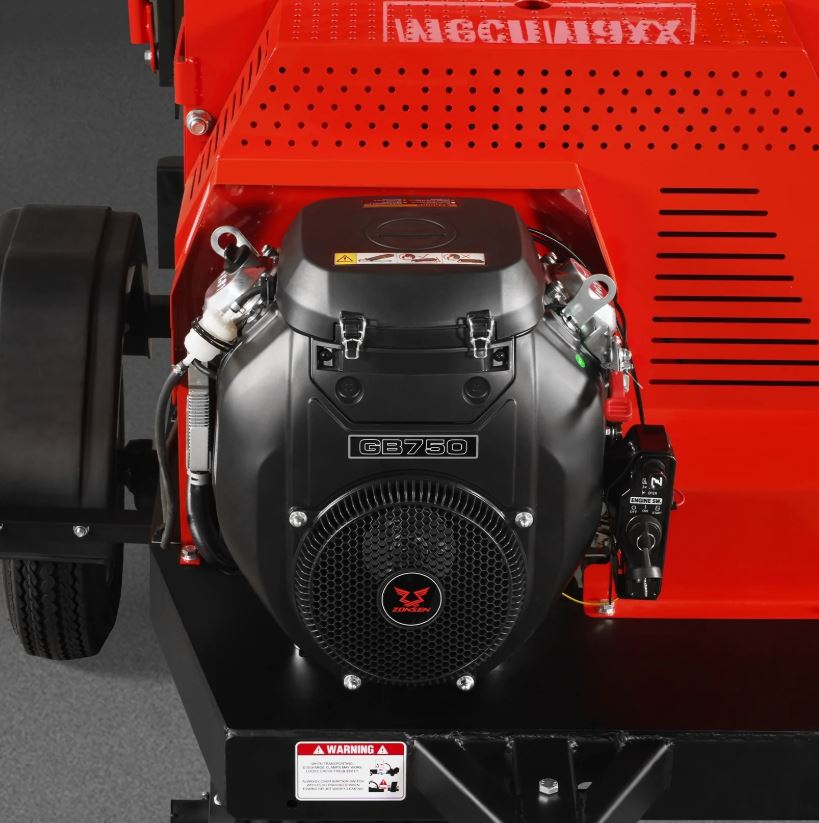

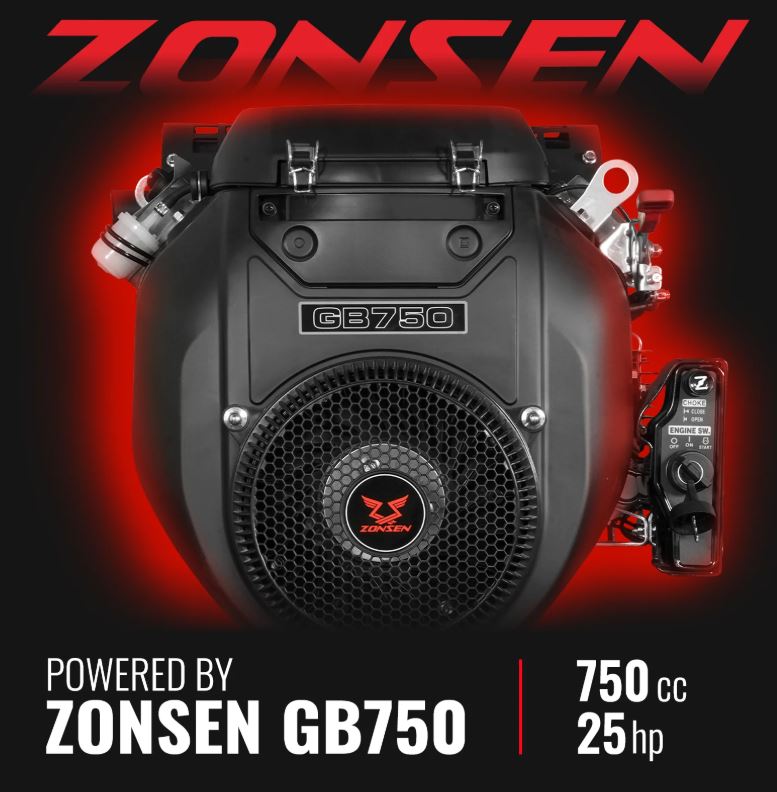

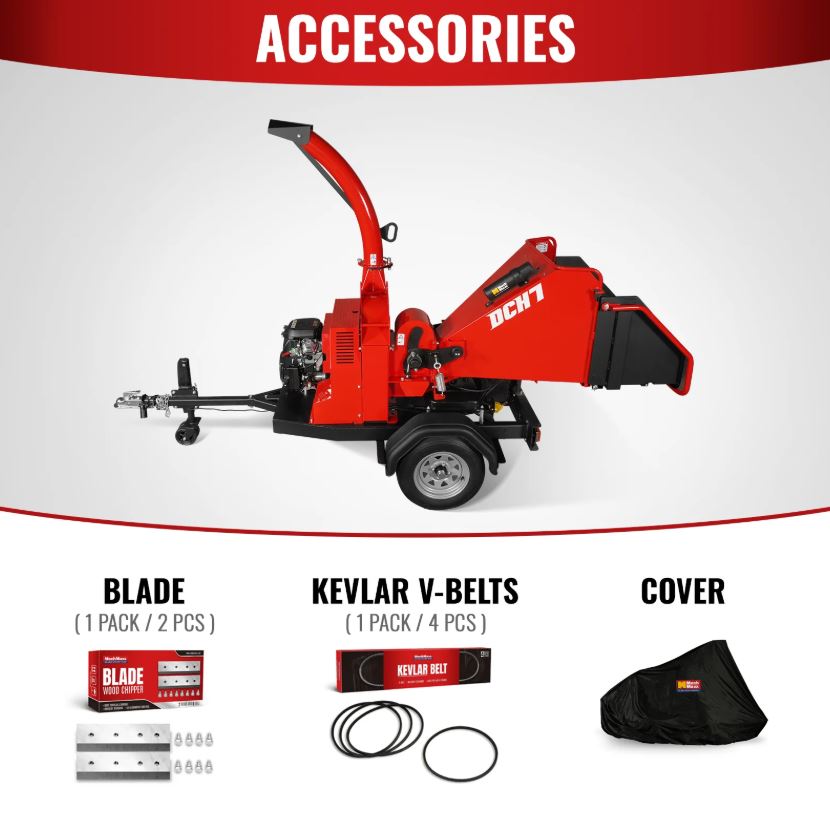

| Engine | ZONSEN GB750 | Blade | 2 x 8 in Blades; 2 x 6 in Anvil |
| Engine Type | Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling | Blade Material | A8 （5Cr8MoVSi） |
| Displacement | 750 cc; 25 HP | Blades Type | Double Edge Blade |

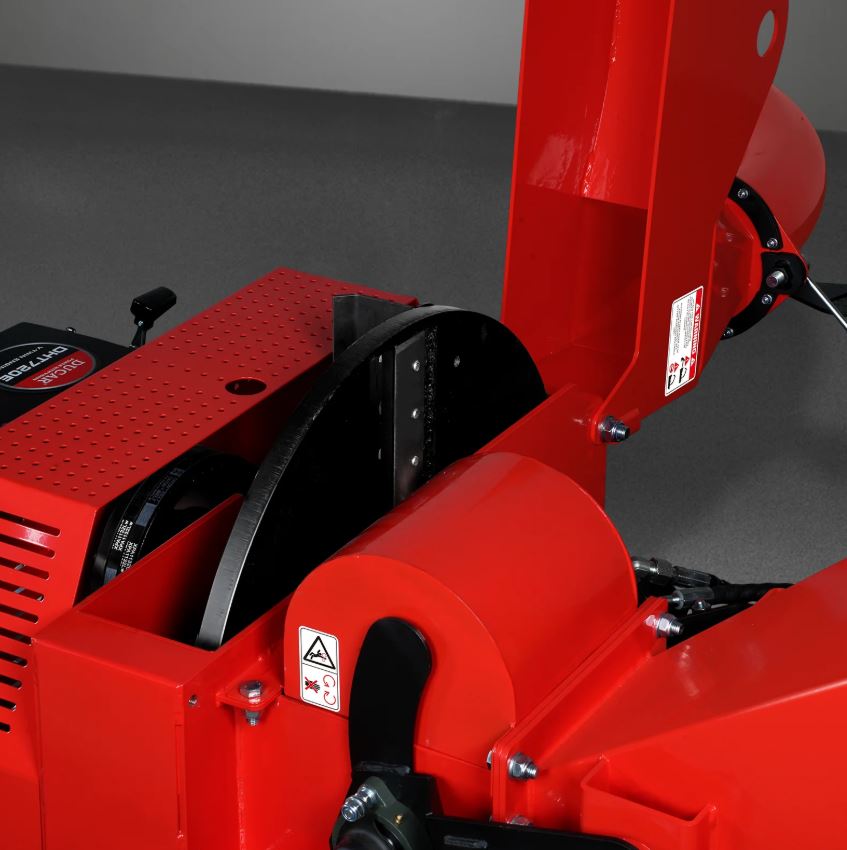

| Rated Power | 15.5 kw / 3600 RPM | Flywheel System | Open Top Flywheel 26 in x 1 in Twin |
| Max. Net Torque | 45 N·m / 2800 RPM | Discharge Chute | 360 Degree Rotating |
| Fuel Capacity | 3.17 gal | Emergency Stop | Stop Bar |

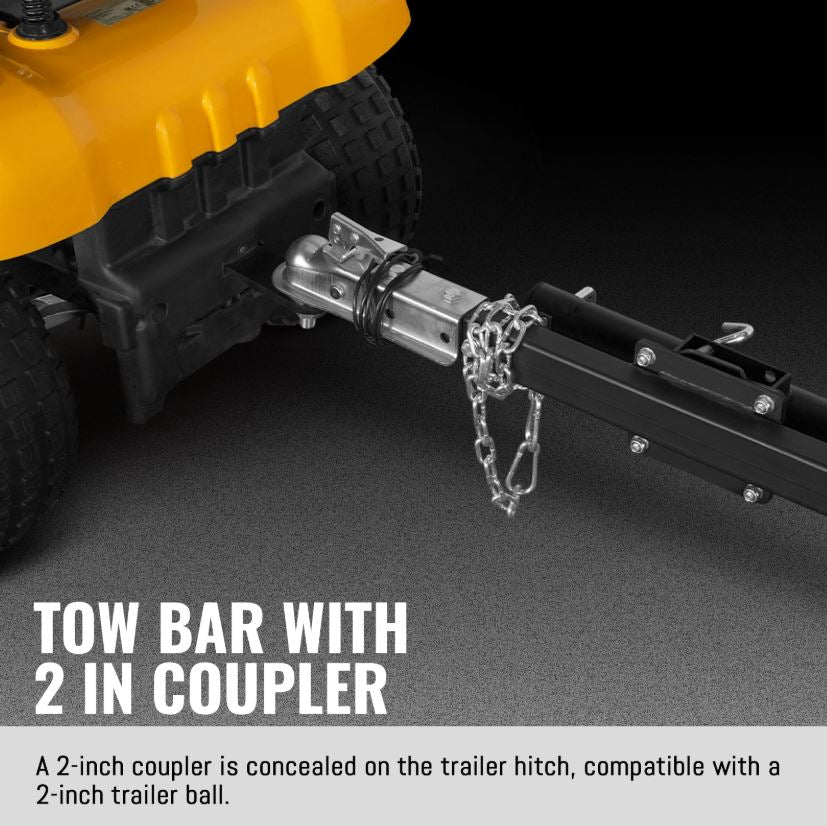

| Recommended Oil | SAE 10W-30 Classification SE or Higher | Towing Length | Tow Bar With 2 in Coupler |

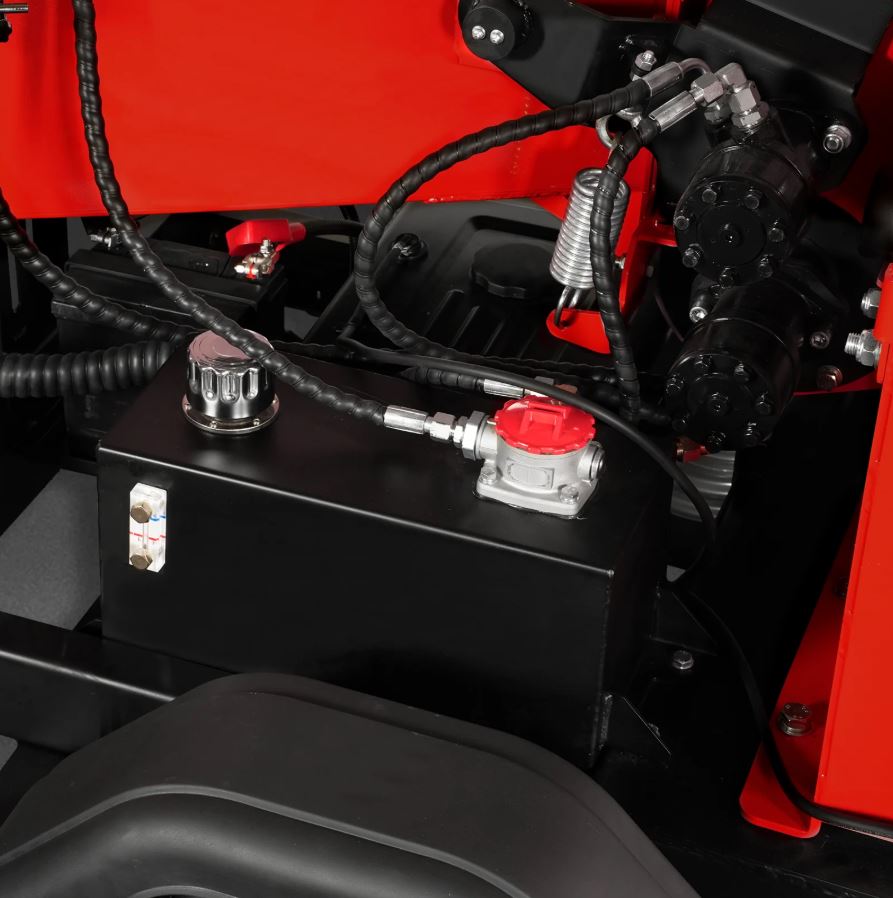

| Hydraulic Tank | 6.87 gal | Wheel | 5.3-12 Tubeless |
| Starting | Electric Starting | Wheelbase | 52.5 in |
| Battery | 36Ah 12V Lead-Acid Battery | Axle | Damping Torsion Axle |
| Ignition System | CDI | Max. Speed | 50 mph |
| Governor System | Mechanical Centrifugal Type | Chassis | Channel Steel Welded Frame |
| Belt | 2 x V-Belts | Package Method | Iron Fram With Black Film |
| Belts Material | Kevlar | Weight (N.W./G.W.) | 1389 / 1587 lbs |

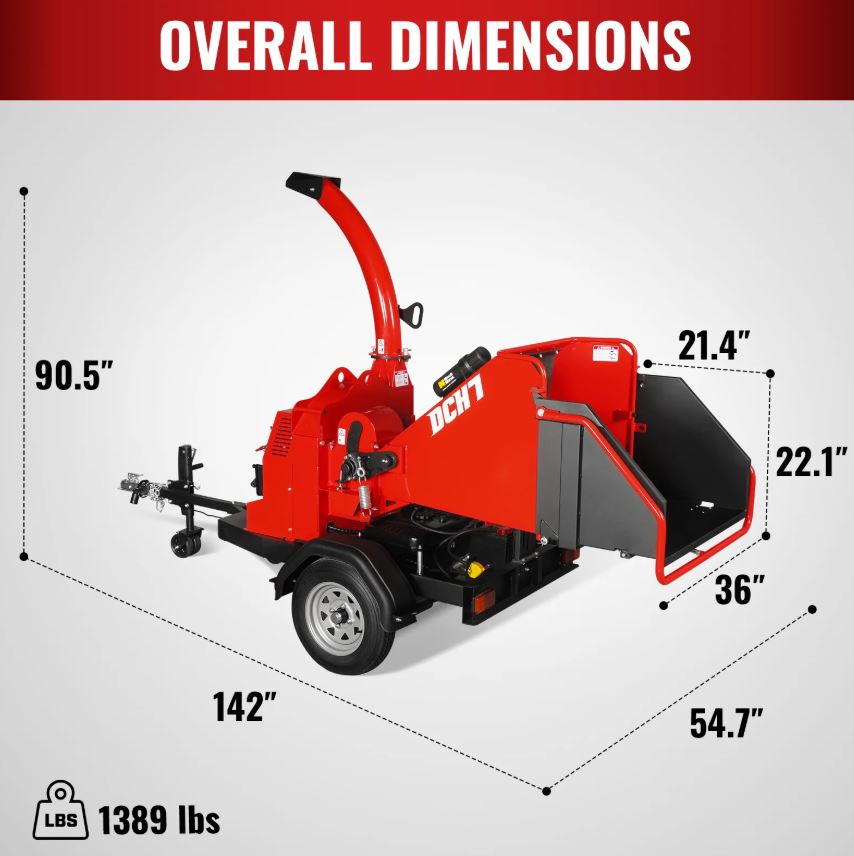

| Clutch | Centrifugal Clutch | Product Size (L*W*H) | 137 x 55 x 90 in |
| Cutting Method | Disc | Packing Size (L*W*H) | 87 x 46 x 51 in |

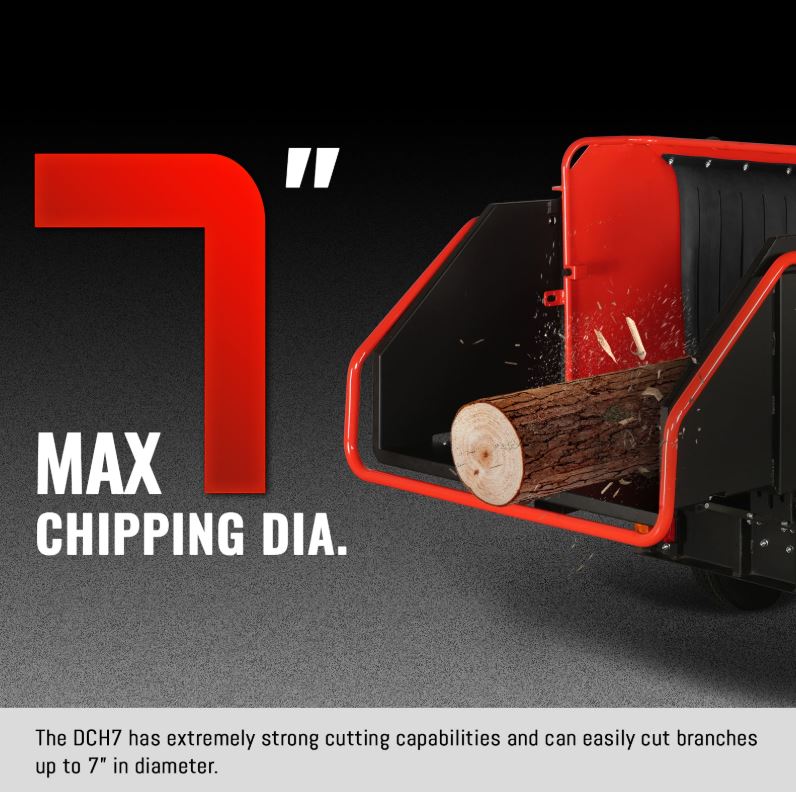

| Max. Chipping Dia. | 7 in | Machine Warranty | 2 Years |

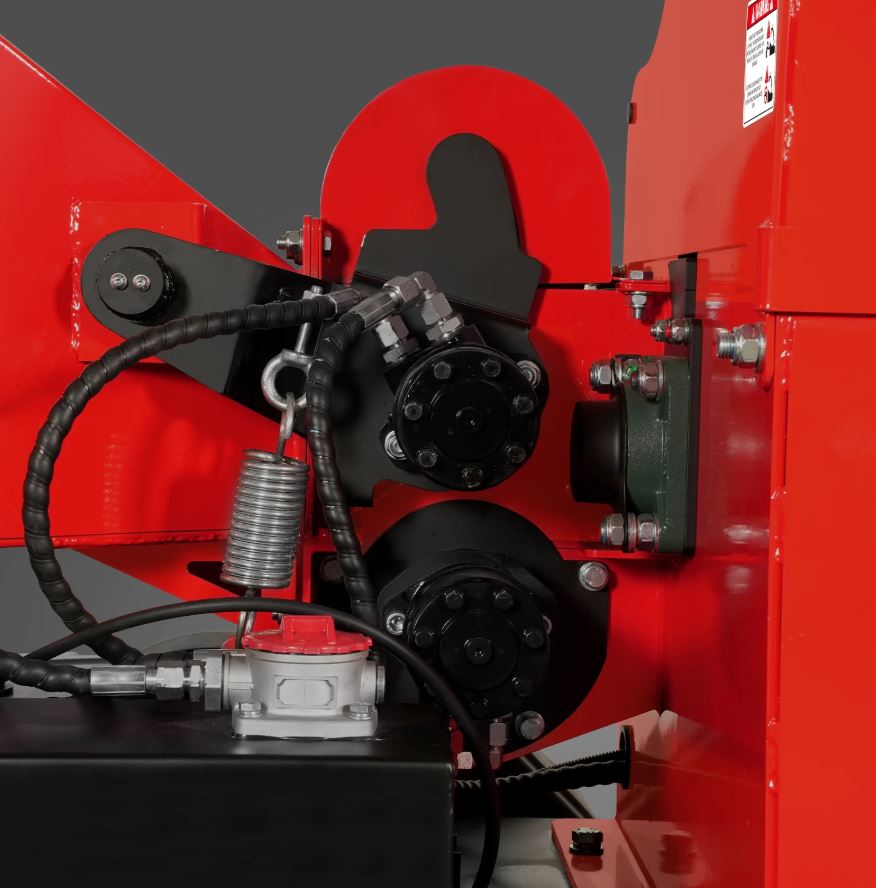

| Feed Roller | 7.5 in x 6.5 in | Engine Warranty | 2 Years |
