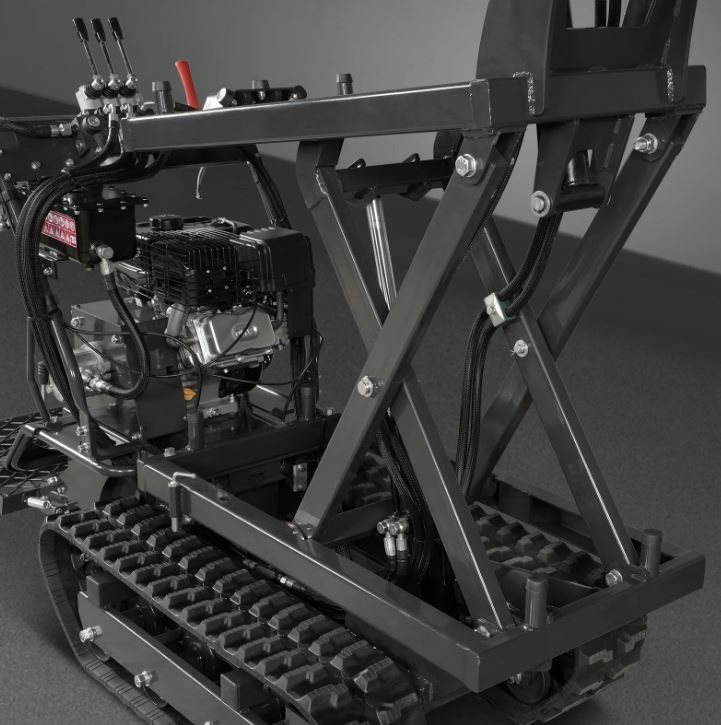

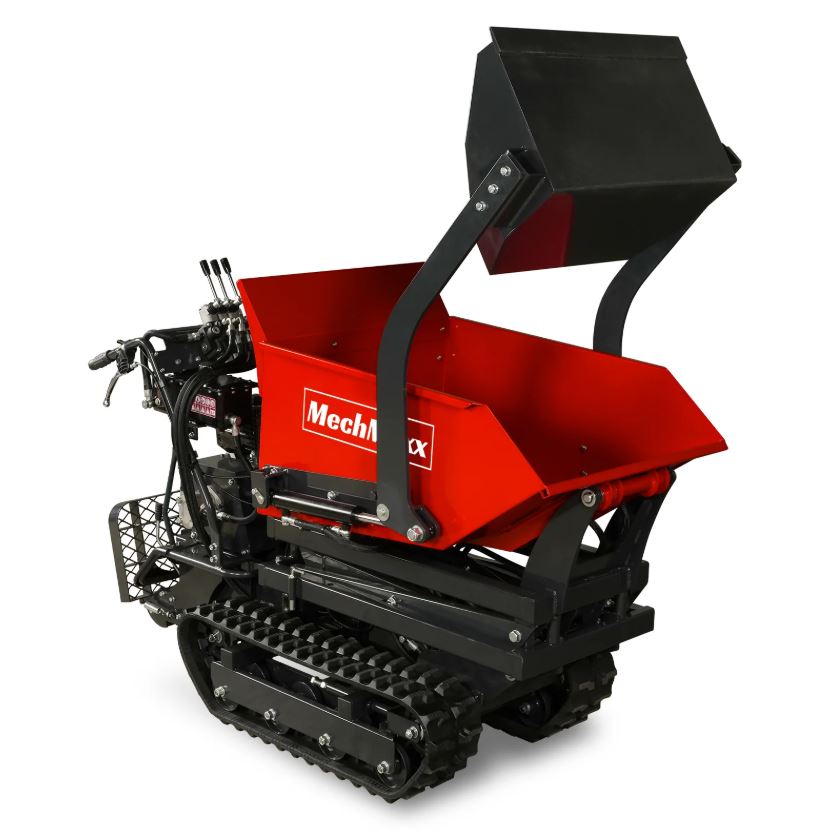

Built with heavy-duty steel and a powerful hydraulic system, this dumper delivers strong lifting and dumping performance. The self-loading shovel and high-tipping bucket make material handling easy and efficient. Compact yet powerful, it runs on a 10HP engine with 6 forward and 2 reverse gears—ideal for tight, tough worksites.

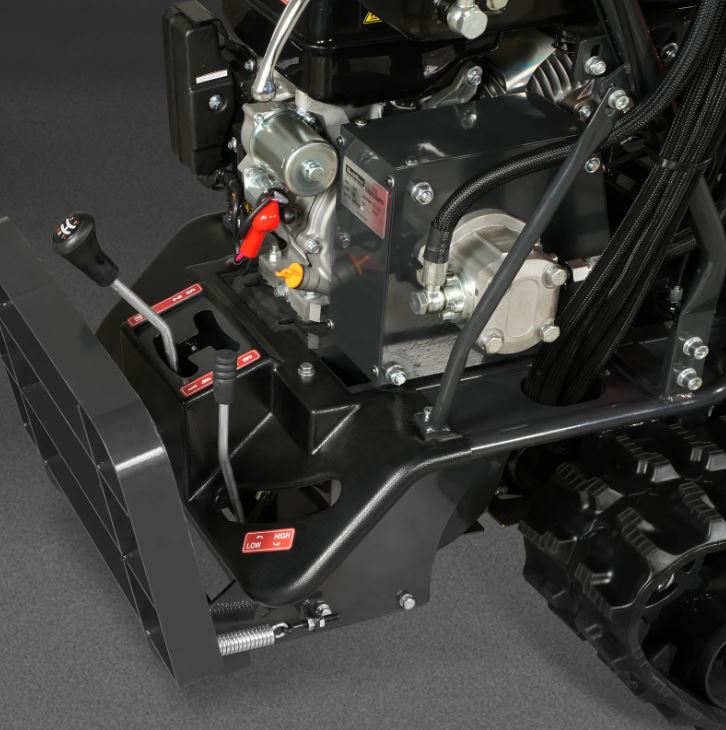

- UNIQUE DESIGN: This tracked dumper is equipped with 6 forward and 2 reverse transmission, which offers an advantage over friction driven designs used on similar machines.

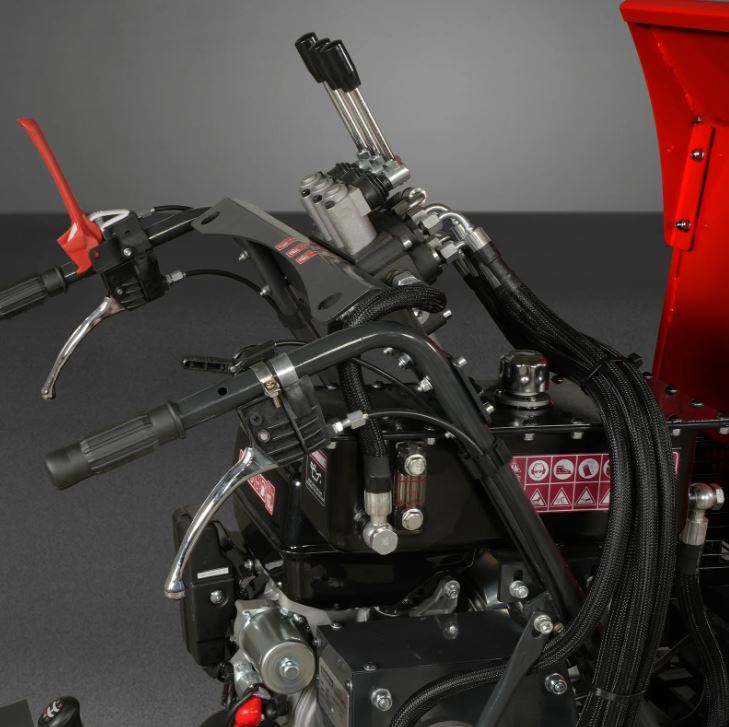

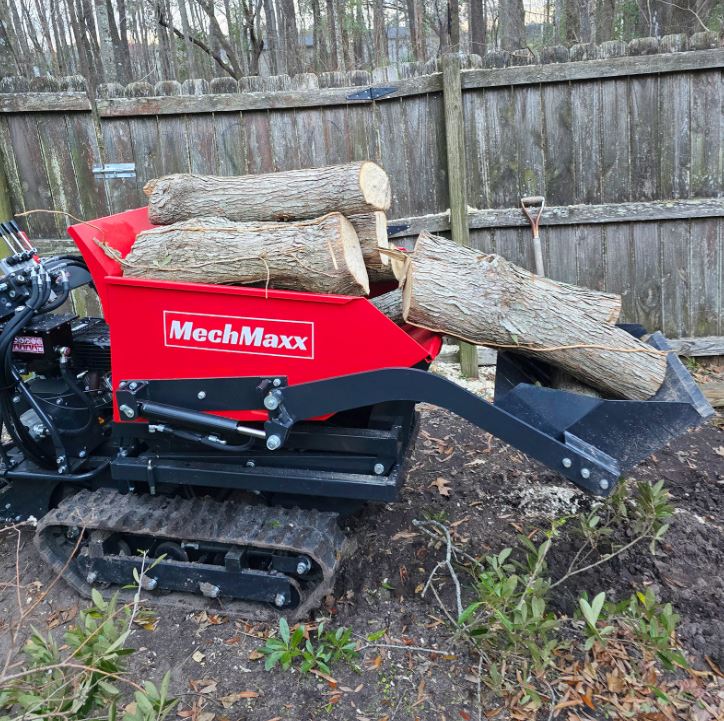

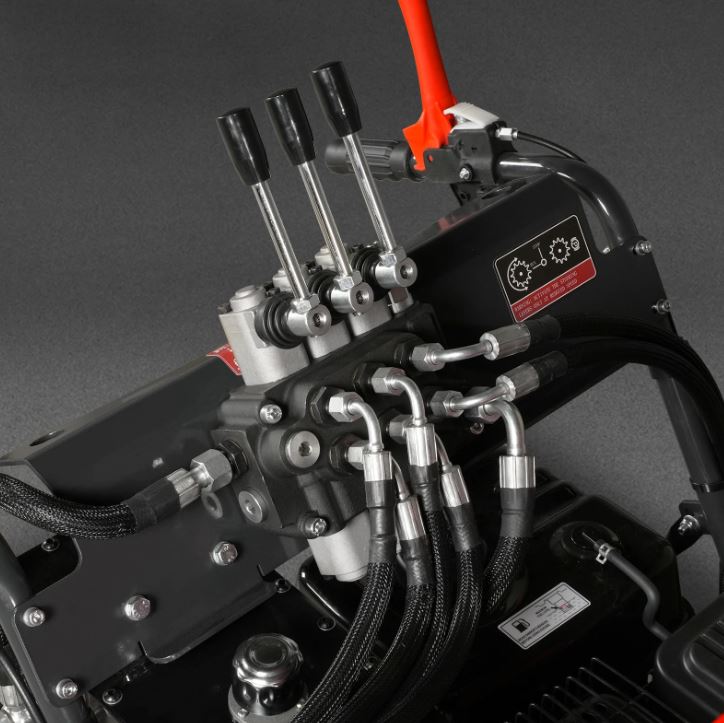

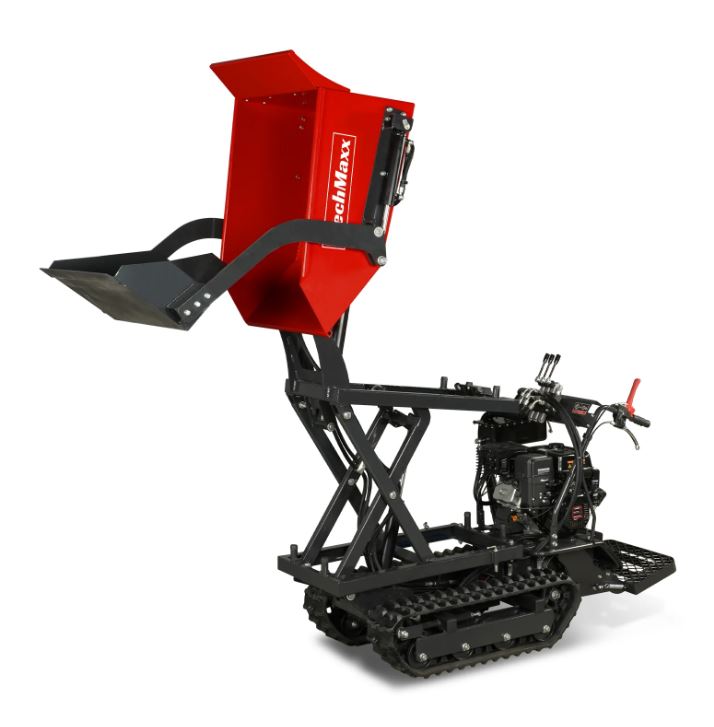

- EASY OPERATION: Hydraulic self-loading and high-tipping function. Stand-alone loading without the need for another machine transport materials from worksites efficiently, saving money and time.

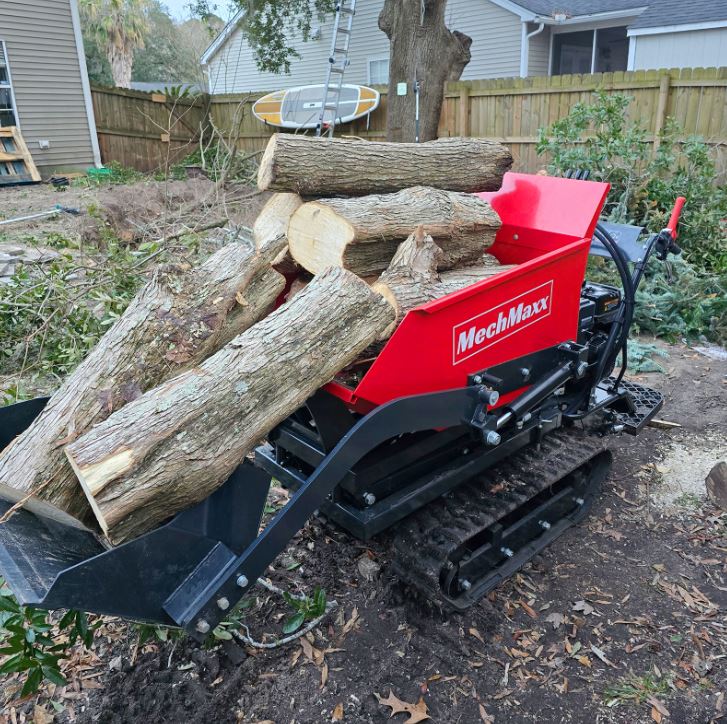

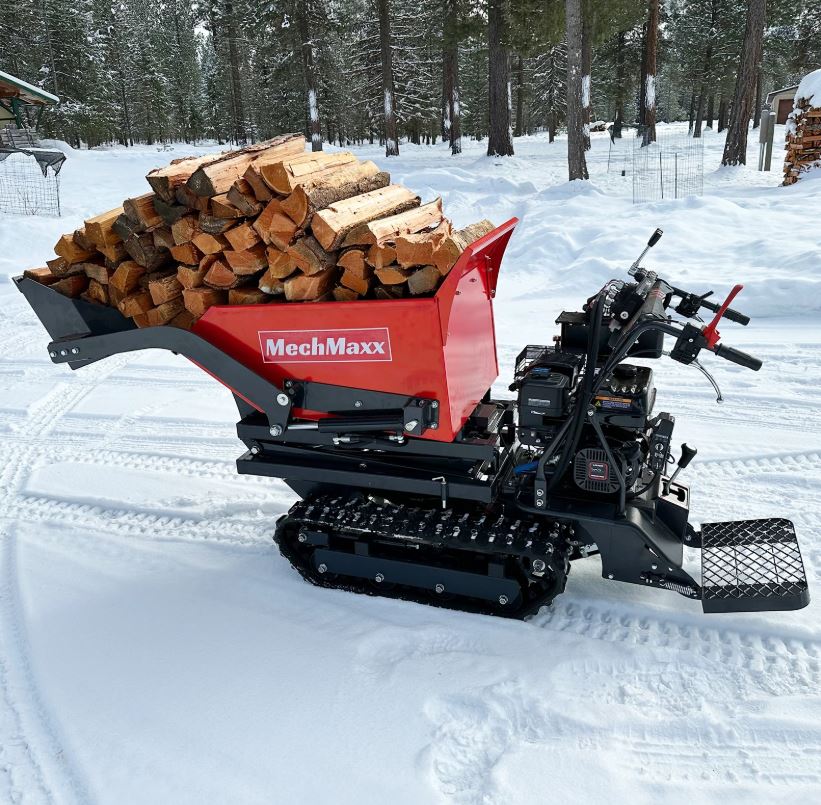

- BEST APPLICATION: The robust steel bucket has a large 1100 lbs & 10 cu.ft. capacity for transportation of a wide variety of materials. The track drive and about 4.3" ground clearance makes this dumper suitable for smooth, slippery or muddy terrain.
- COMPACTNESS: The narrow design helps you to navigate through hard-to-reach spaces. And there is a smart turning circle as well, for maximum maneuverability in tight spaces.

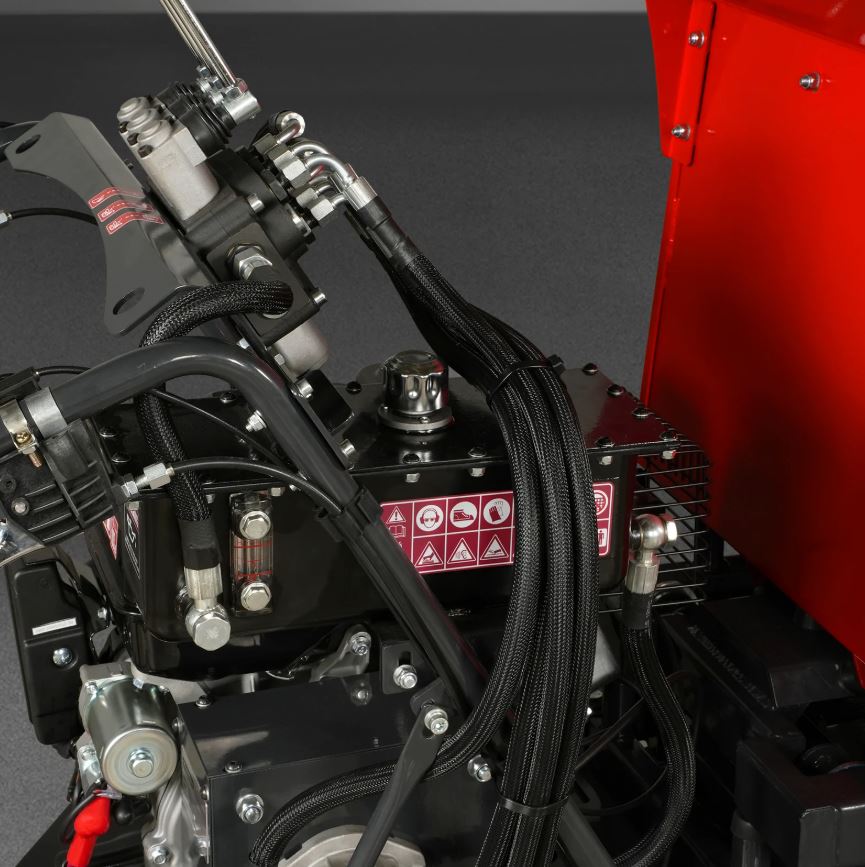

- POWERFUL: 10 HP, 302cc, Single Cylinder, 4 Stroke, Air-Cooled, OHV, ELECTRIC START gas engine.
- Gasoline/Petrol: Clean, fresh, unleaded gasoline
- Engine Oil: 10W-30
- Hydraulic Oil: AW 46 Hydraulic Oil
NOTE!
- This machine doesn't come with oil and fuel in the engine. Before starting the engine, fill the engine with oil and fuel. Read the engine manual.
- This machine doesn't come with hydraulic oil. Please make sure to fill it with hydraulic oil before use.
Specifications
|
Engine |
LONCIN G300FD Gasoline Engine |
Bucket Capacity |
10 cu.ft. |
|
Engine Type |
Single Cylinder, 4 Stroke, Air-Cooled, OHV |
Shovel Capacity |
1.8 cu.ft. 550lbs |
|
Engine Displacement |
302 cc |

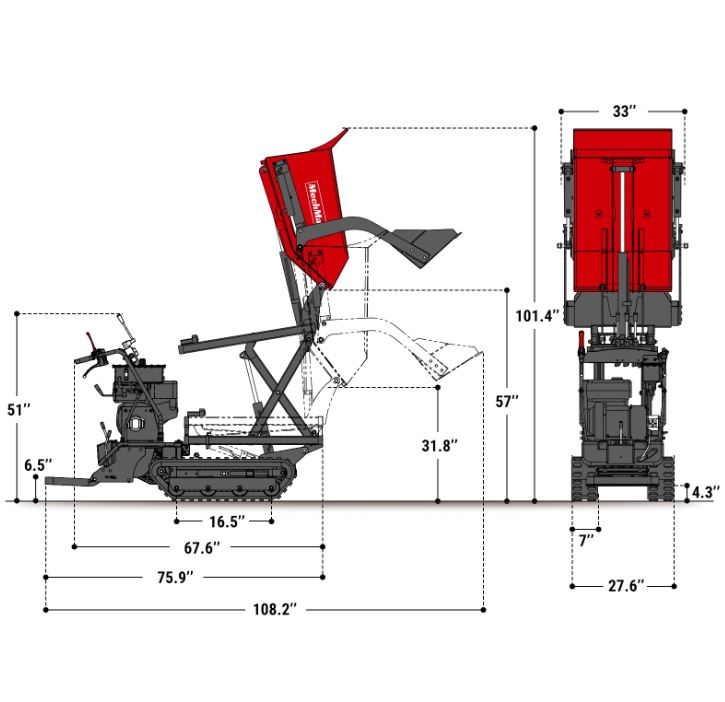

Overall Width |
33 in |
|
Horsepower |
10 HP |
Max. Dumping Height |
57 in |
|
Start |
Electric Start (battery included) |
Bucket Size |
37.8 x 28 x 18.1 in |
|
Fuel Tank Capacity |
1.59 gal (6L) |
Track Width |
7 in |
|
Engine Oil Capacity |
0.25 gal (0.95L) |
Ground Clearance |
4.3 in |
|
Hydraulic Oil Capacity |
0.79 gal (3L) |
Working Pressure |
16 Mpa |
|
Transmission |
Transaxle 6 Forward / 2 Reverse Speed |
Track Roller |
8 Pcs |
|
Forward Speed |
0-4.47 mph |
Track Size |
180W x 60P x 38L |
|
Reverse Speed |
0-1.49 mph |
Package Method |
Iron Frame |
|
Max. Gradeability |
30% |
Packing Size |
75.5 x 30 x 51 in |
|
Loading Capacity |
1100 lbs |
Weight (N.W / G.W.) |
930 / 1012 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
