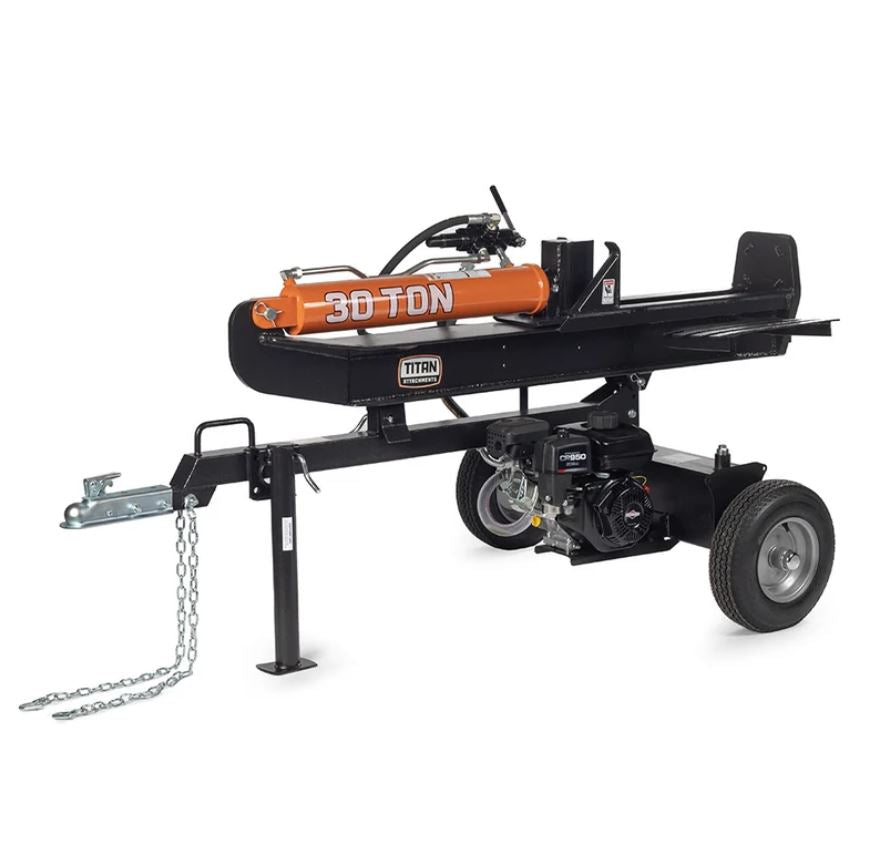

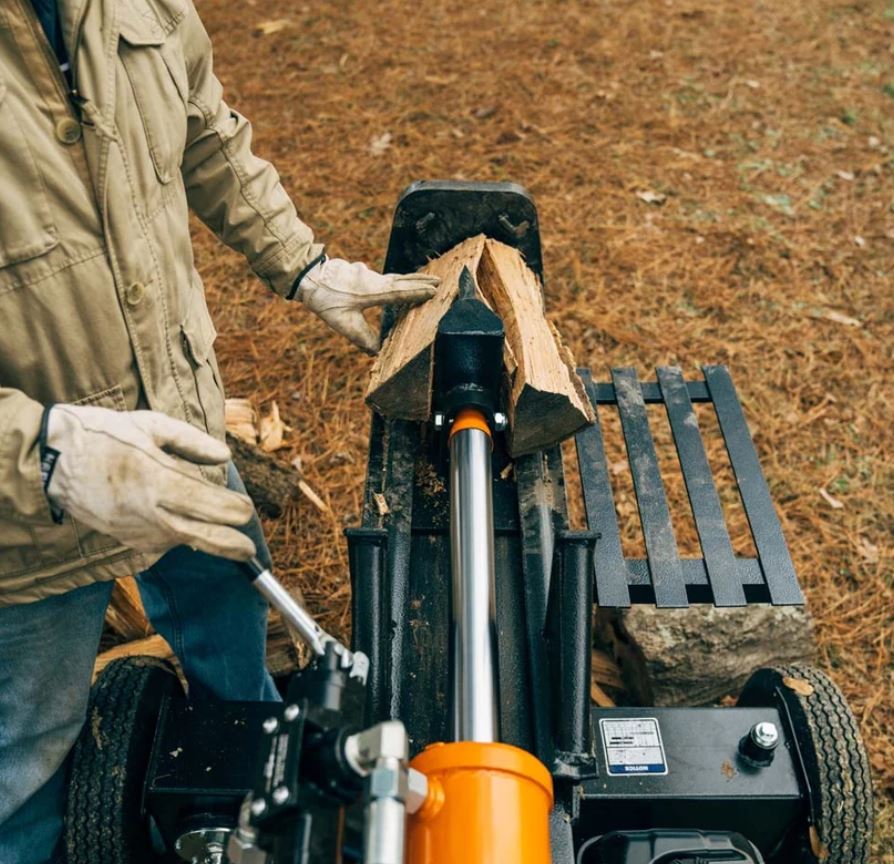

Equipped with a powerful engine, this industrial log splitter delivers up to 30 tons of splitting force, handling tough logs with ease. Use the implement horizontally to split small logs at waist height or vertically to roll larger logs onto the splitter. This attachment accommodates logs up to 24" long and 16" in diameter, including hard woods like oak, elm, walnut, and cherry. Featuring its own single cylinder hydraulic system and powered by a 208cc Briggs and Stratton engine, this splitter has a 13.5 second cycle time for quick and effective log processing. Attach it to any ATV, UTV, or smaller tractor with a 2" ball tow hitch for easy transport around the home, cabin, or lodge. Built from heavy-gauge steel and an industrial-strength I-beam design, this splitter offers exceptional strength and longevity for even the toughest woodcutting needs.
Specifications
Overall Height
44-in.Overall Length
90-in.Overall Width
47-in.Max Log Length
24-in.Max Log Diameter
16-in.Log Catcher Dimensions
18-in. x 11.5-in.Log Cradle
25-in. x 10-in.Cylinder Length
29.75-in.Cylinder Diameter
4.25-in.Wedge Height
8-in.Wedge Length
3.5-in.Wedge Width
0.75-in.Power
Cycle Time
13.5 Sec.Engine Horsepower
208ccHydraulic Capacity
8 GalMax Splitting Force
30 TonMaterial
Finish
Powder-Coated Black/OrangeMaterial
SteelWeight
Product Weight
502 lb.- Up to 30 tons of splitting force
- 208cc Briggs and Stratton engine
- Vertical or horizontal orientation
- 13.5 second cycle time
- Accepts logs up to 24" long and 16" in diameter
- Square log cradle for quicker, easier, and safer splitting
- Single cylinder hydraulic system
- Auto return valve with adjustable detent
- Rear tires for easy transport
- Industrial-strength I-beam with heavy plate steel reinforcement
- Kickstand to keep the implement level

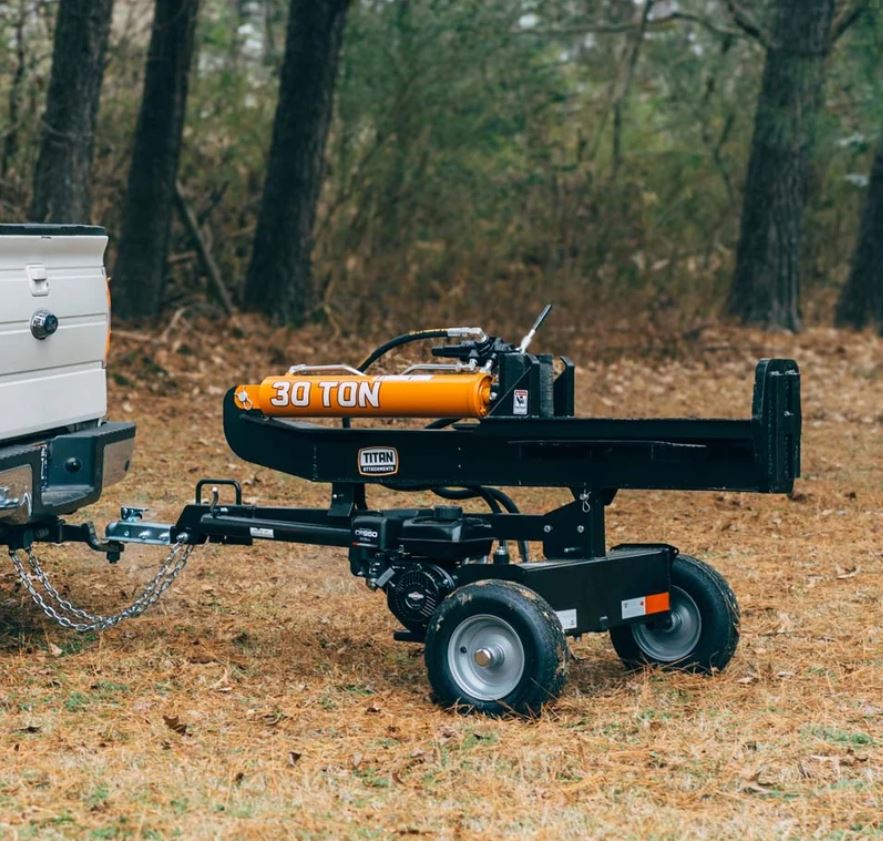

- Fits ATV/UTV/small tractor with 2" ball tow hitch
