Product Overview

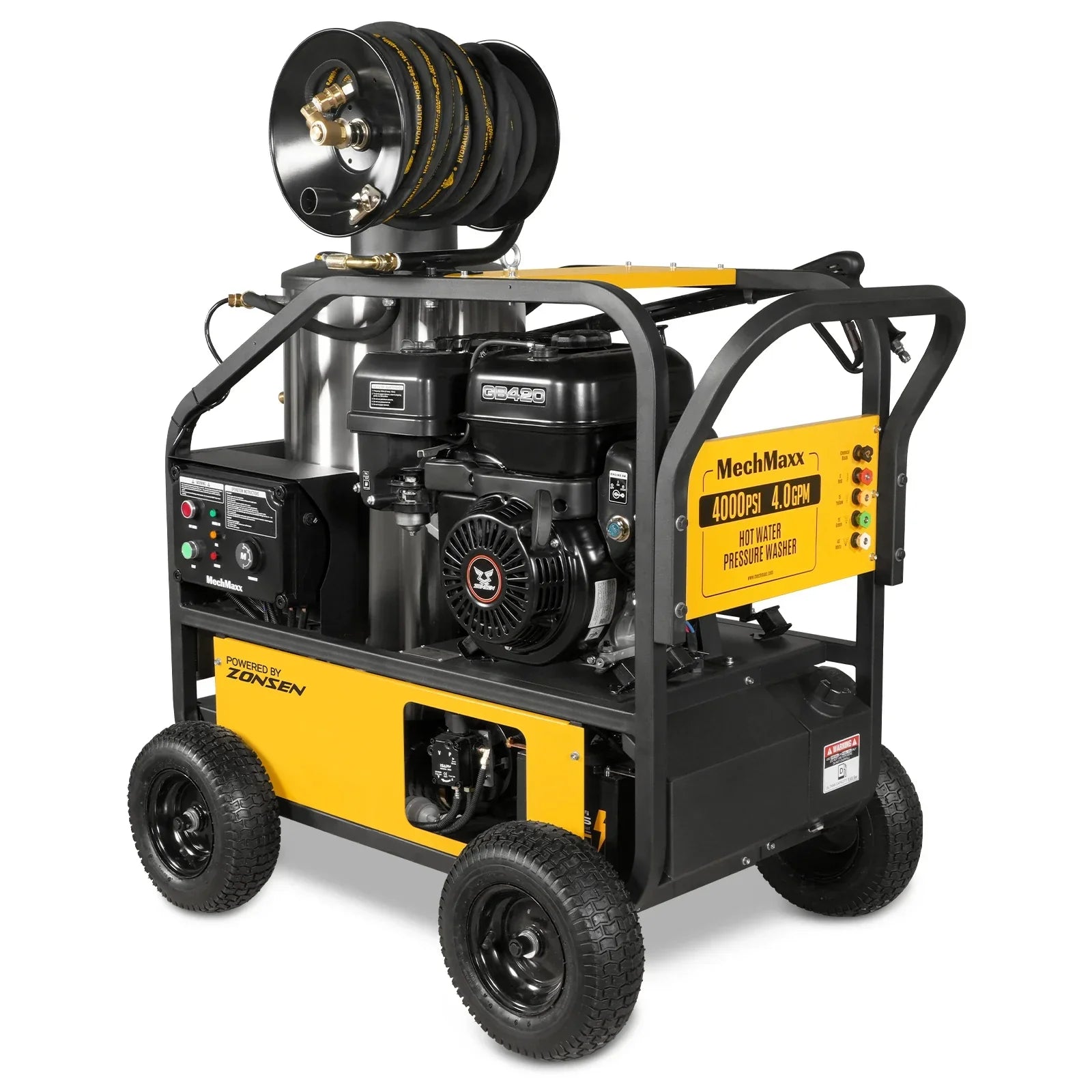

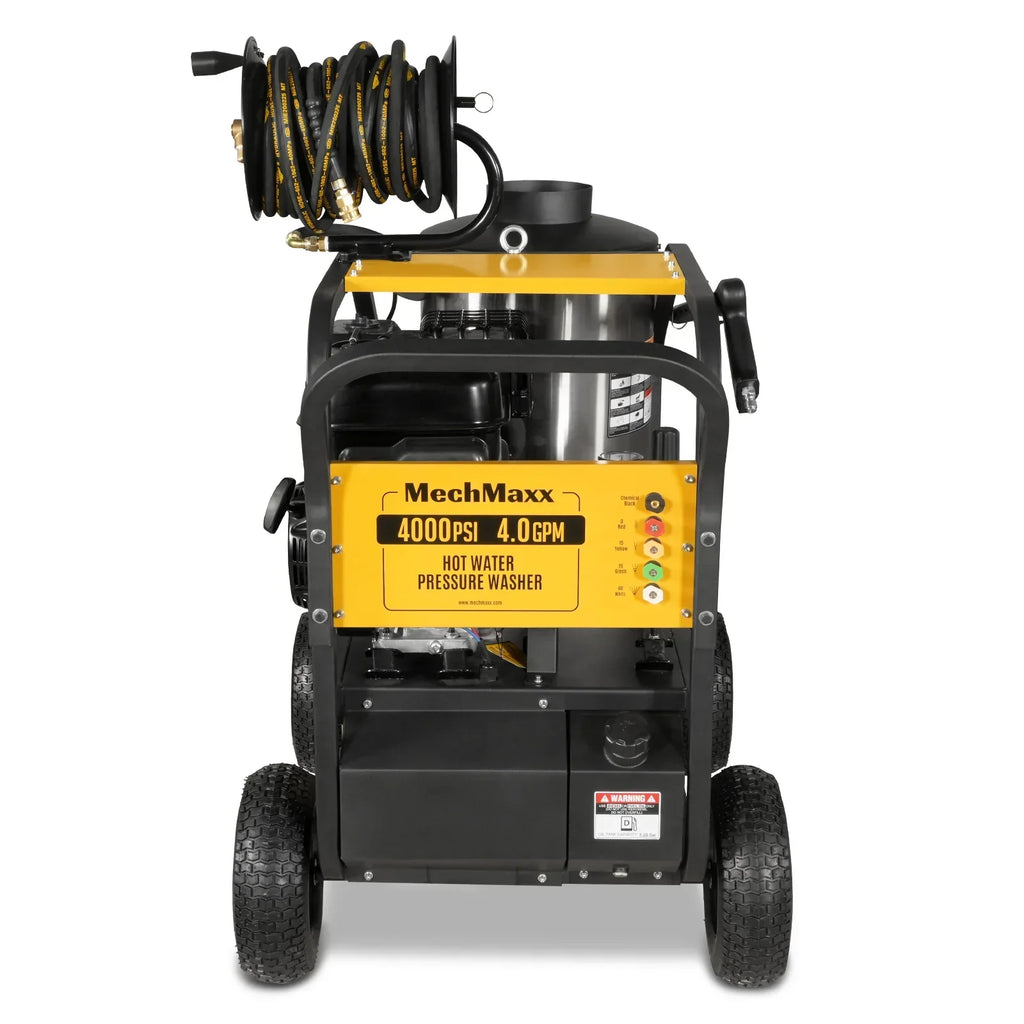

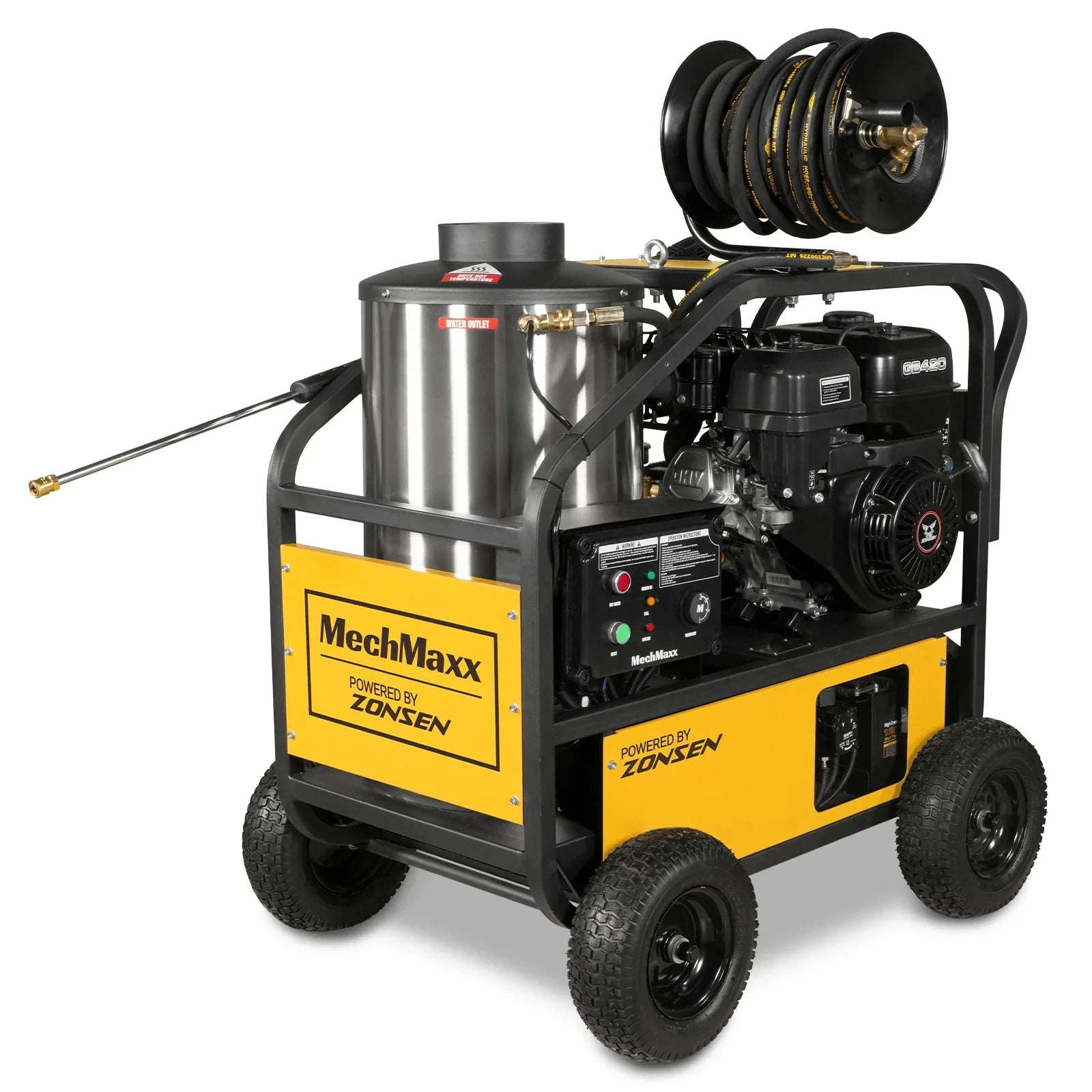

Powered by a ZONSEN GB420 electric-start engine, the MechMaxx HPW40D Hot Water Pressure Washer delivers dependable power and strong hot water cleaning performance for demanding washdown jobs. With 3,500–4,000 PSI pressure, 4.0 GPM flow, and water temperature up to 200°F, it helps remove grease, oil, mud, grime, and heavy buildup more effectively than cold water alone.

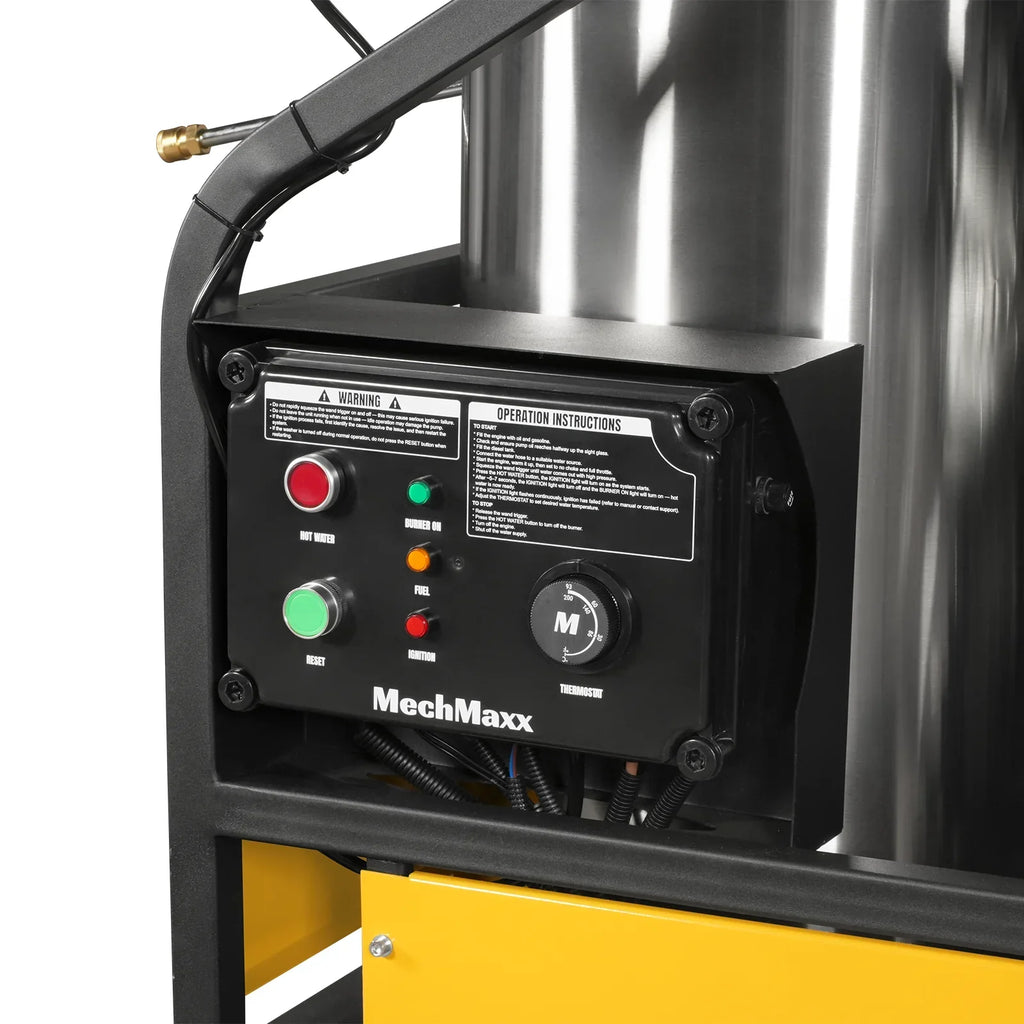

The unit is equipped with a triplex plunger pump, diesel-fired heating system, and integrated control panel for stable pressure output and convenient hot water operation. It is suitable for farm, construction, industrial, fleet, and equipment maintenance applications.

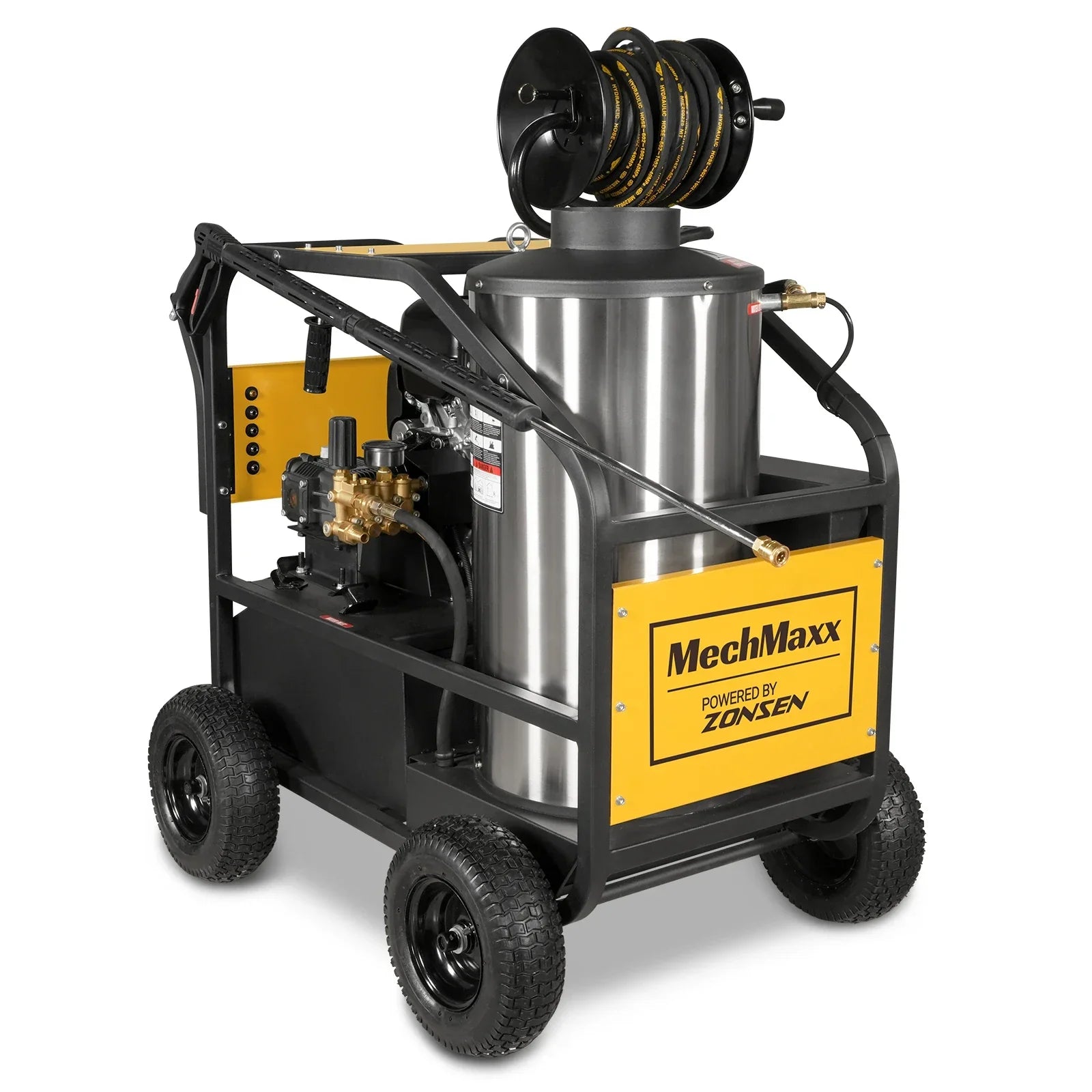

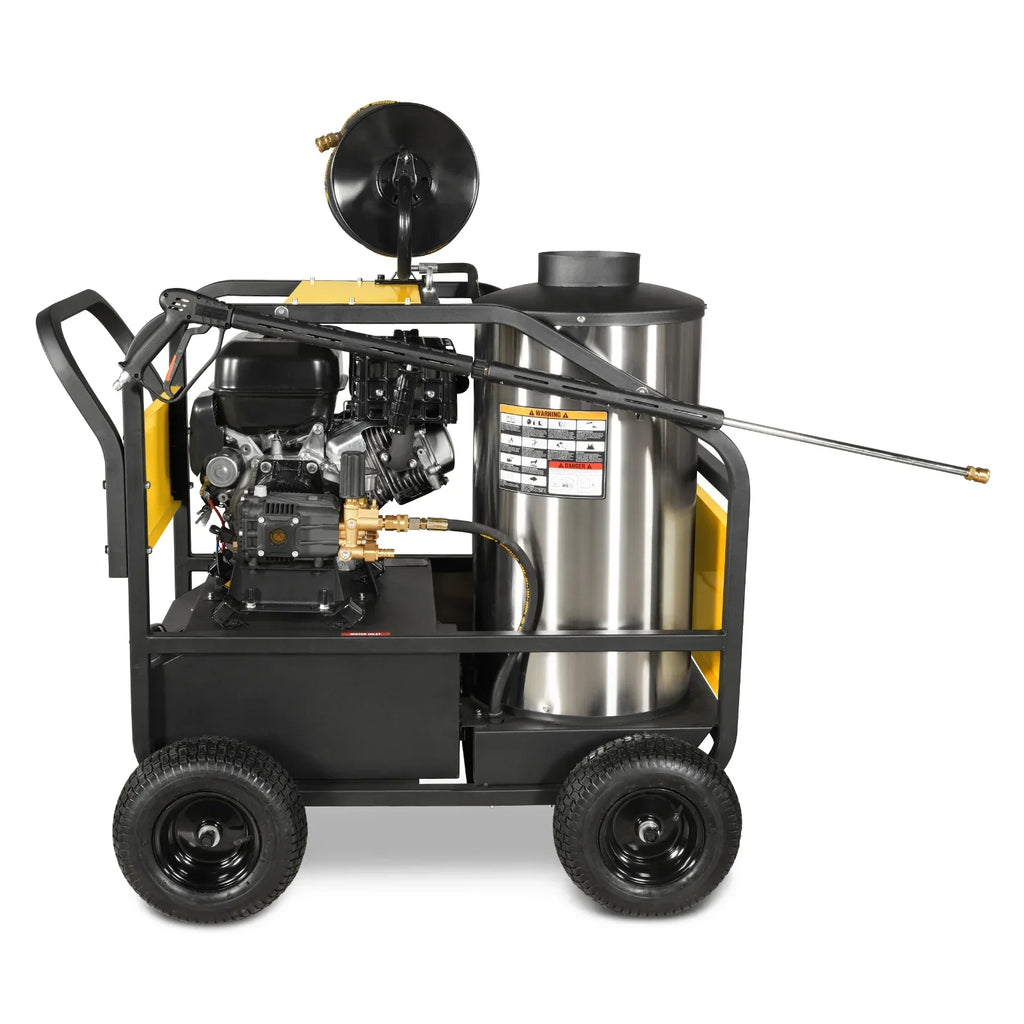

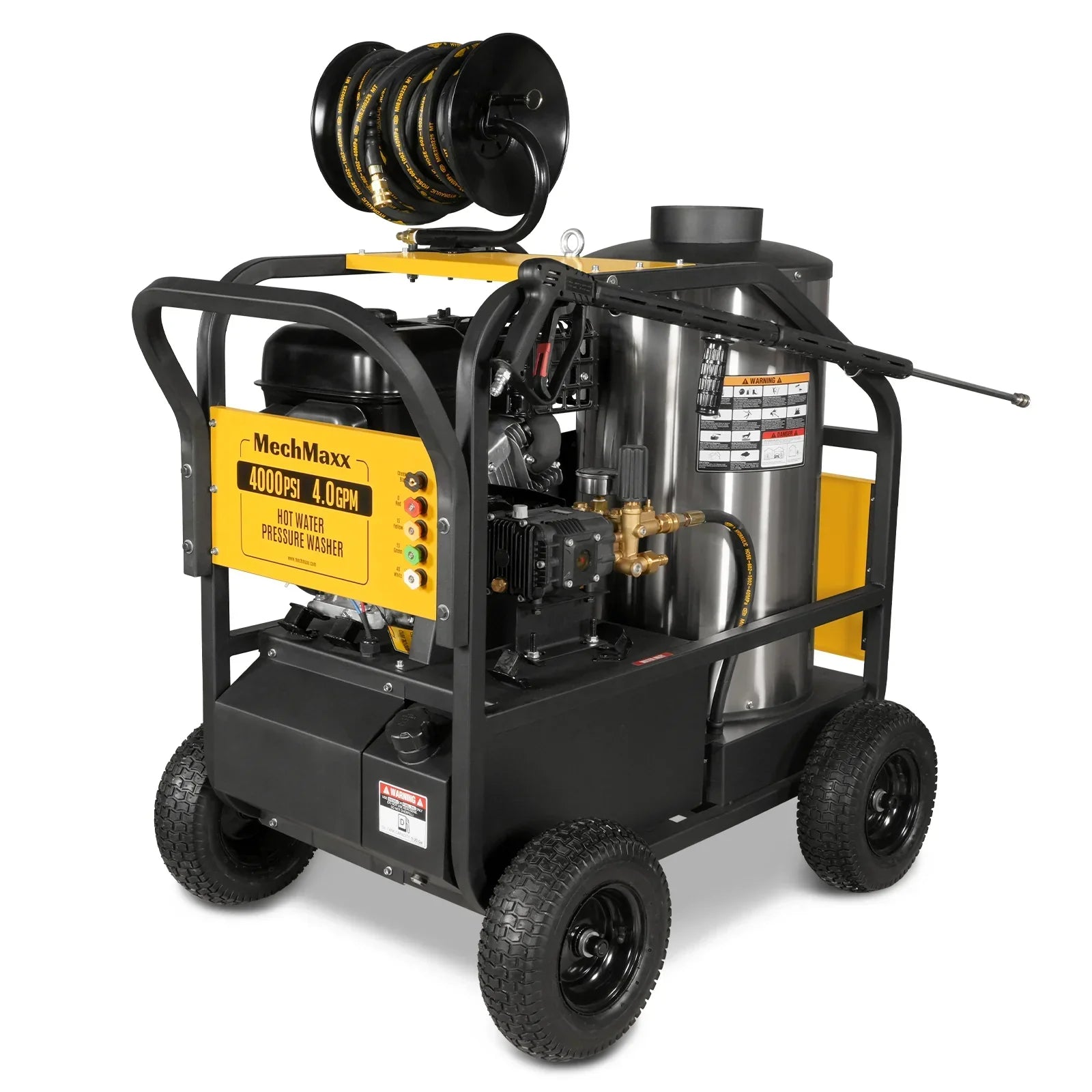

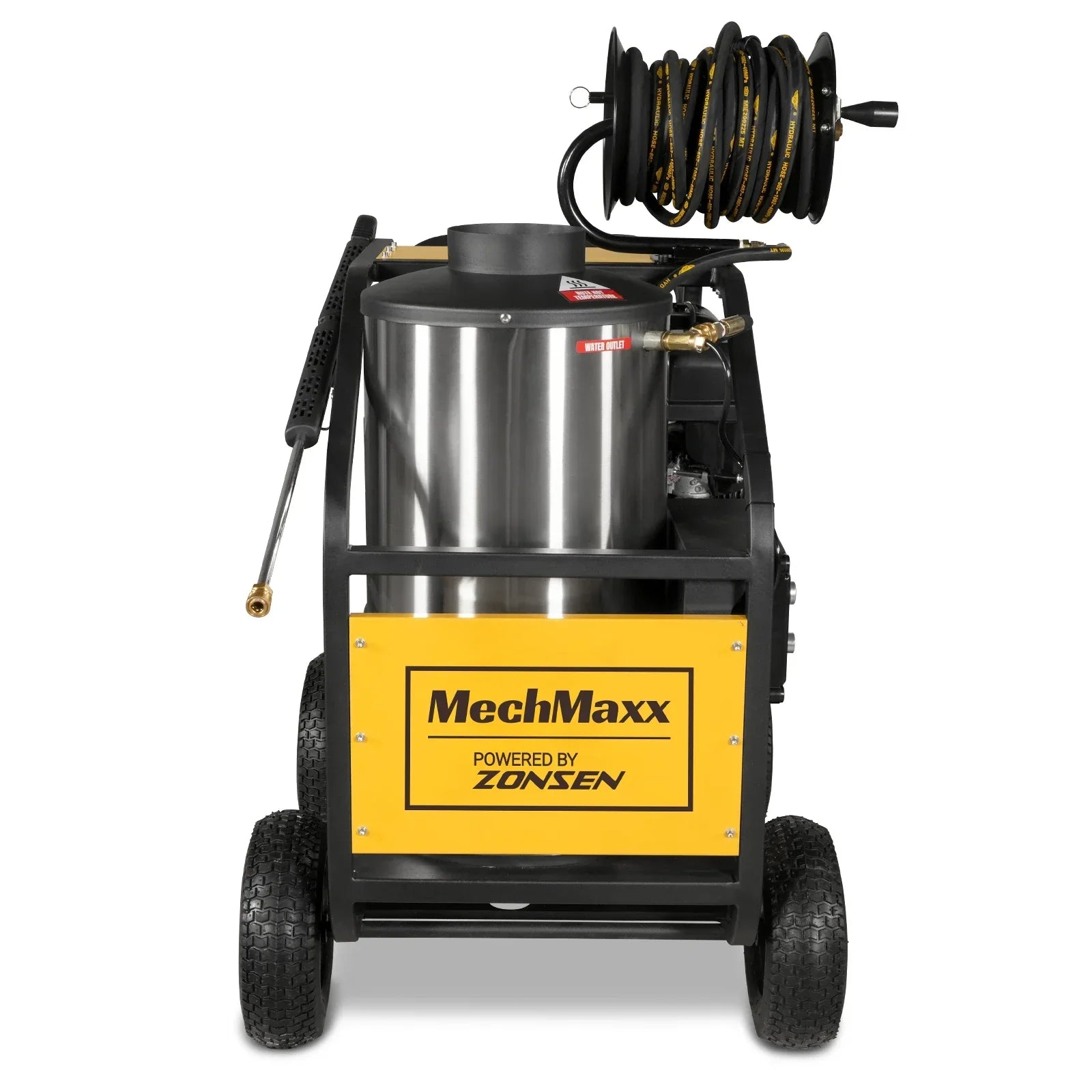

Designed as a portable model, this pressure washer features a rugged powder-coated steel frame, 13" pneumatic tires, a handlebar, and a lift hook for easier movement, loading, and transport. Since it runs on gasoline, it can be used wherever a suitable water supply is available, with no external electrical power required.
NOTE!
- This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.
- Maximum pump pressure is 4000 PSI, with the factory working pressure preset to about 3500 PSI.
- Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation.

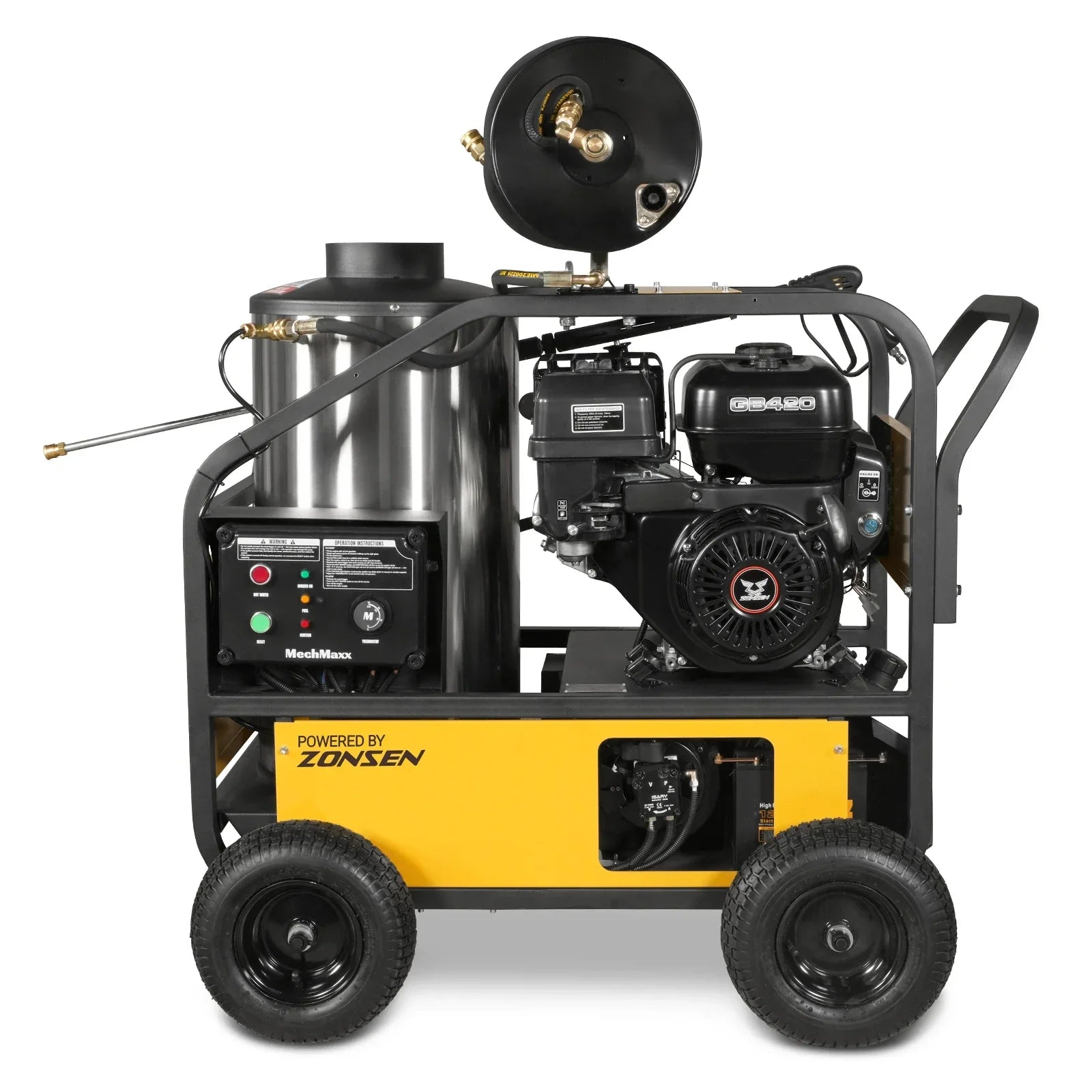

A portable hot-water washer for pros who need to wheel it in and start cutting grime. The HPW40D runs a 13.4 HP ZONSEN GB420 electric-start engine and a triplex plunger pump for 3500-4000 PSI at 4.0 GPM, with a 350,700 BTU diesel burner heating water to 200°F for grease, tar, and stuck-on buildup. It rolls on 13-inch pneumatic tires and includes a hose reel to keep the line managed on the job.
- 3500-4000 PSI at 4.0 GPM

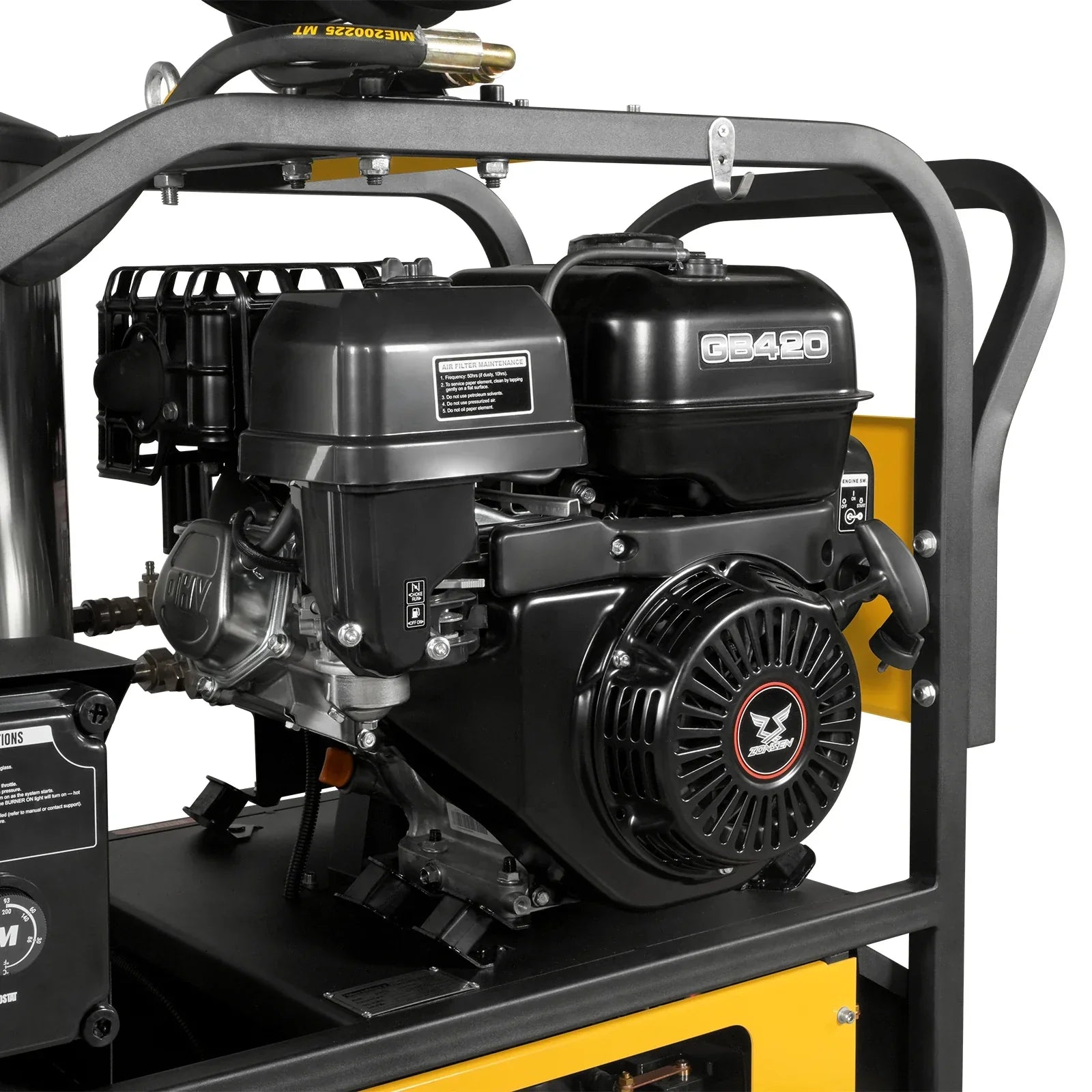

- 13.4 HP ZONSEN GB420 electric-start engine, battery included

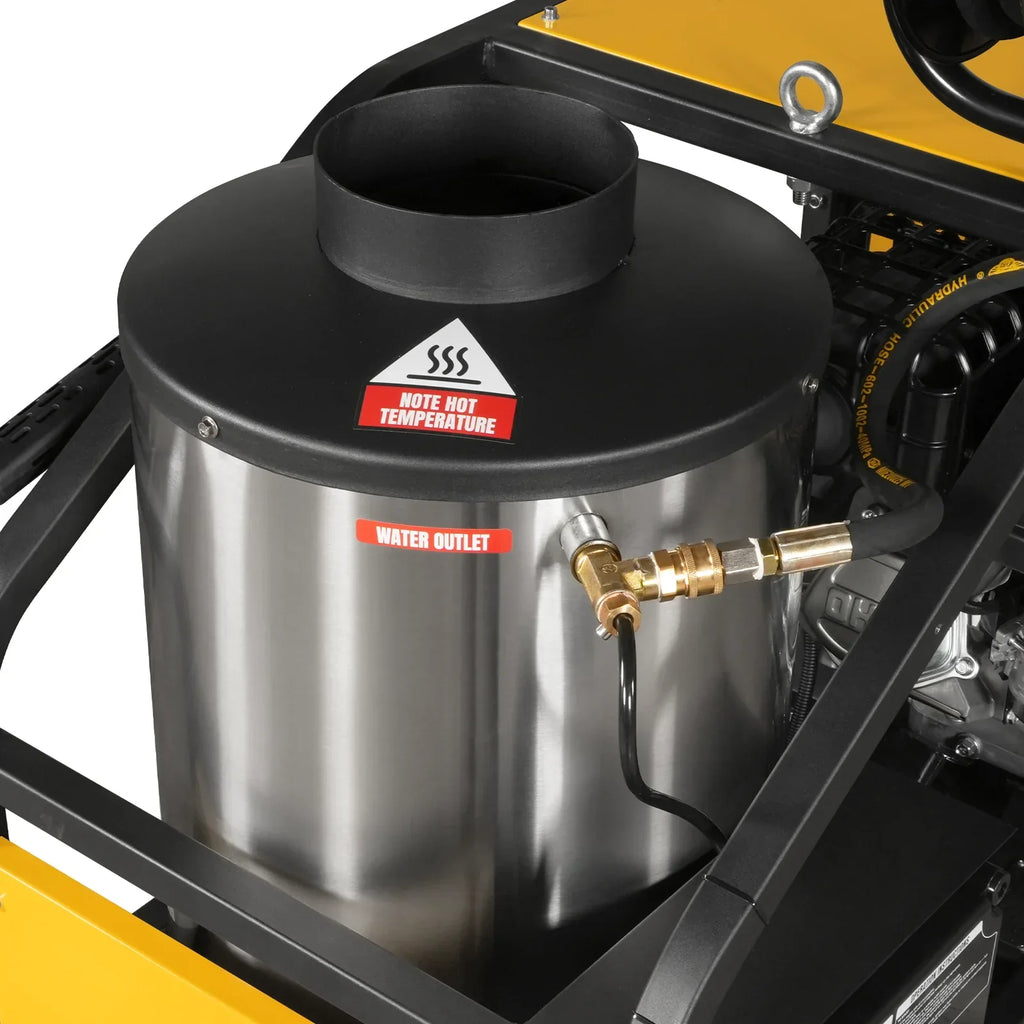

- Hot water to 200°F via 350,700 BTU diesel burner

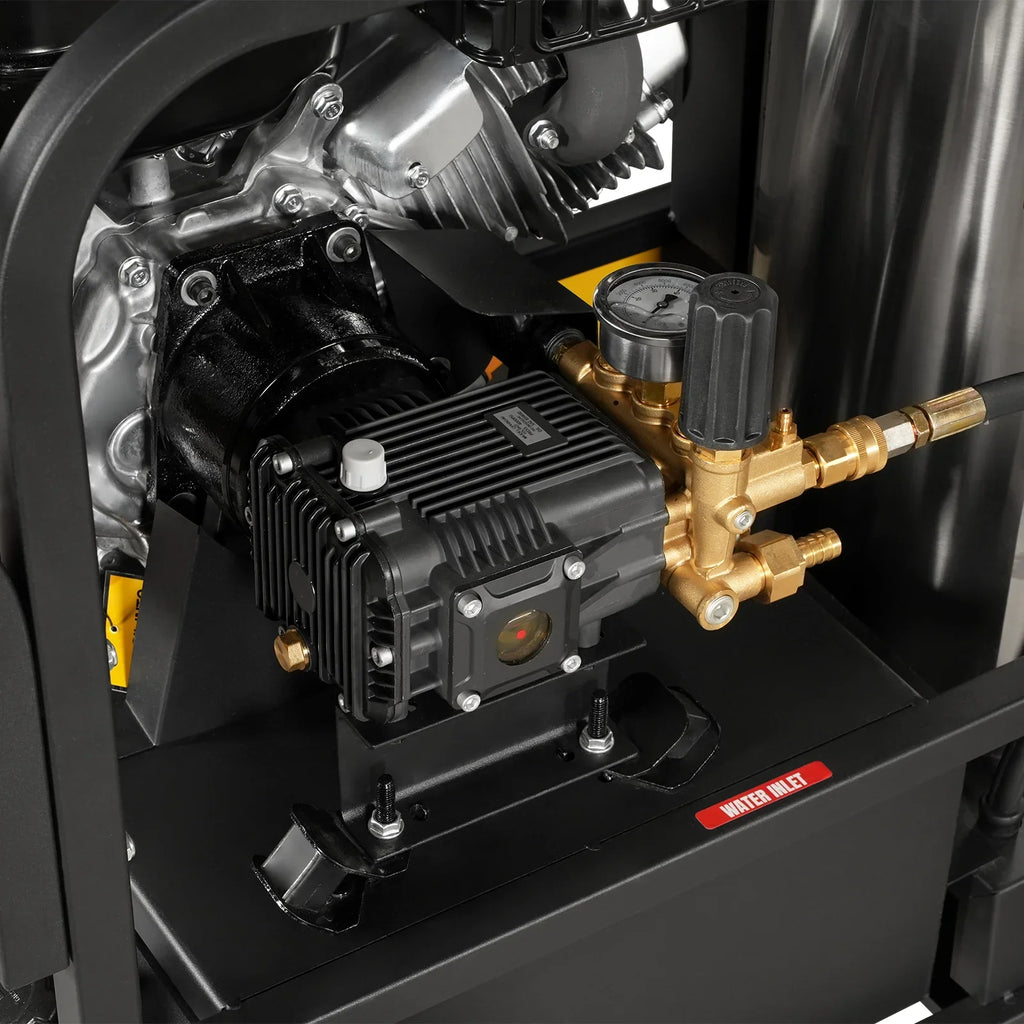

- Triplex plunger pump with oil-bath crankcase

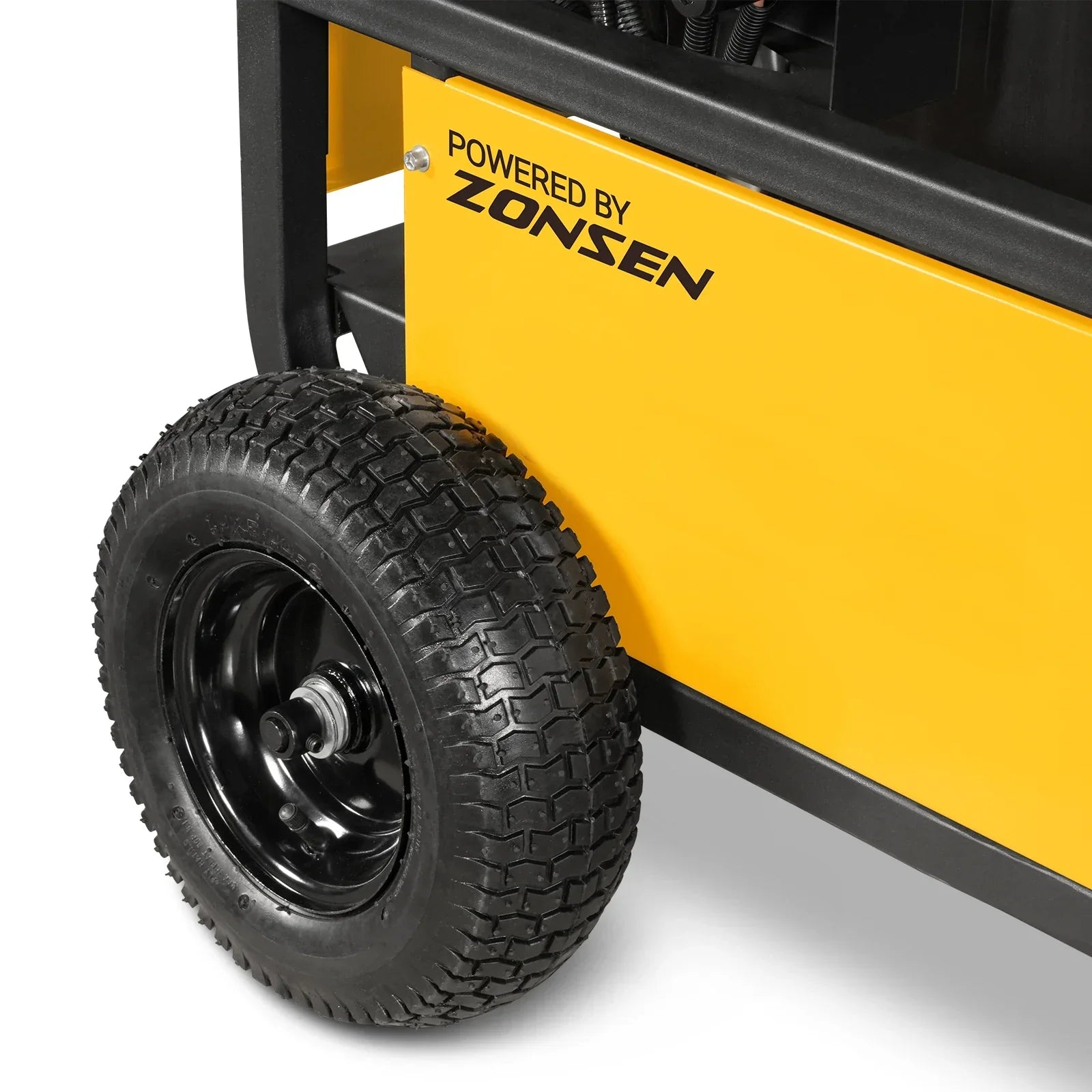

- Portable frame on 13-inch pneumatic tires

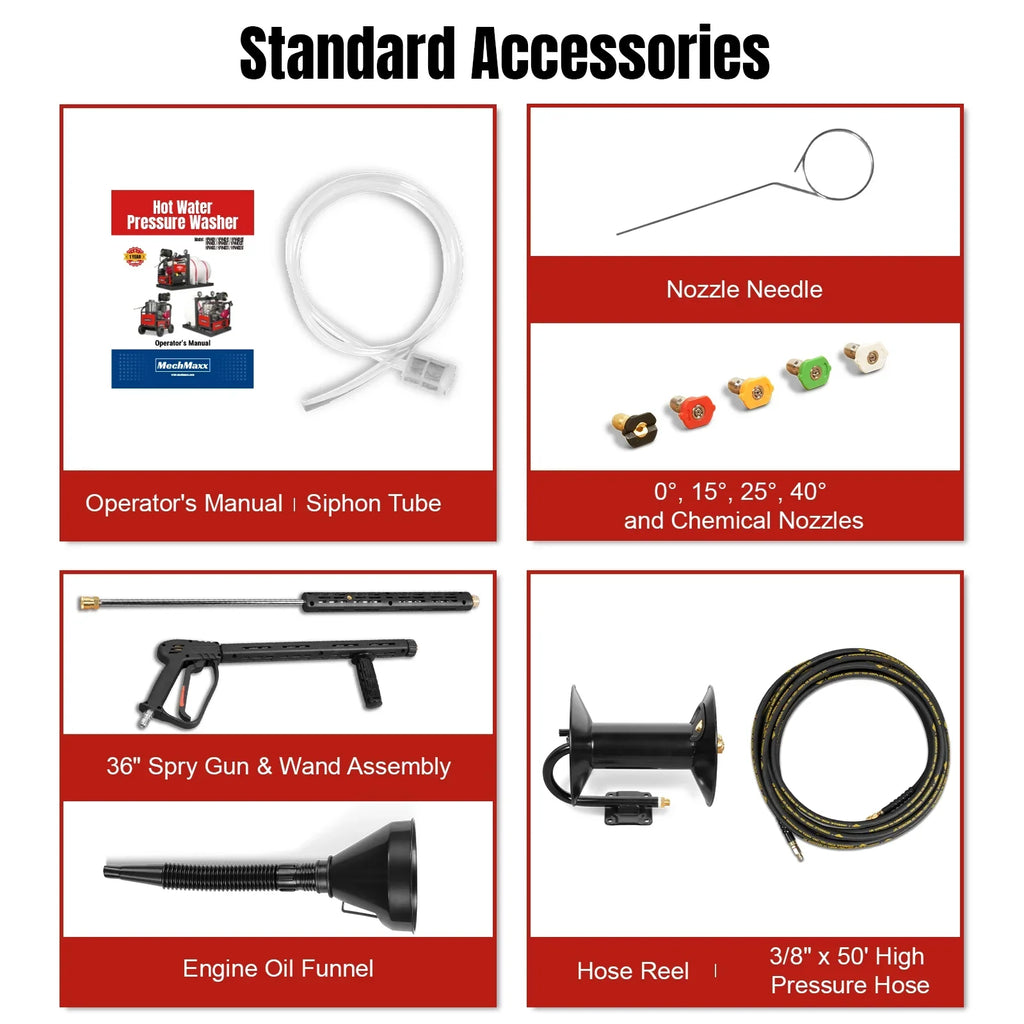

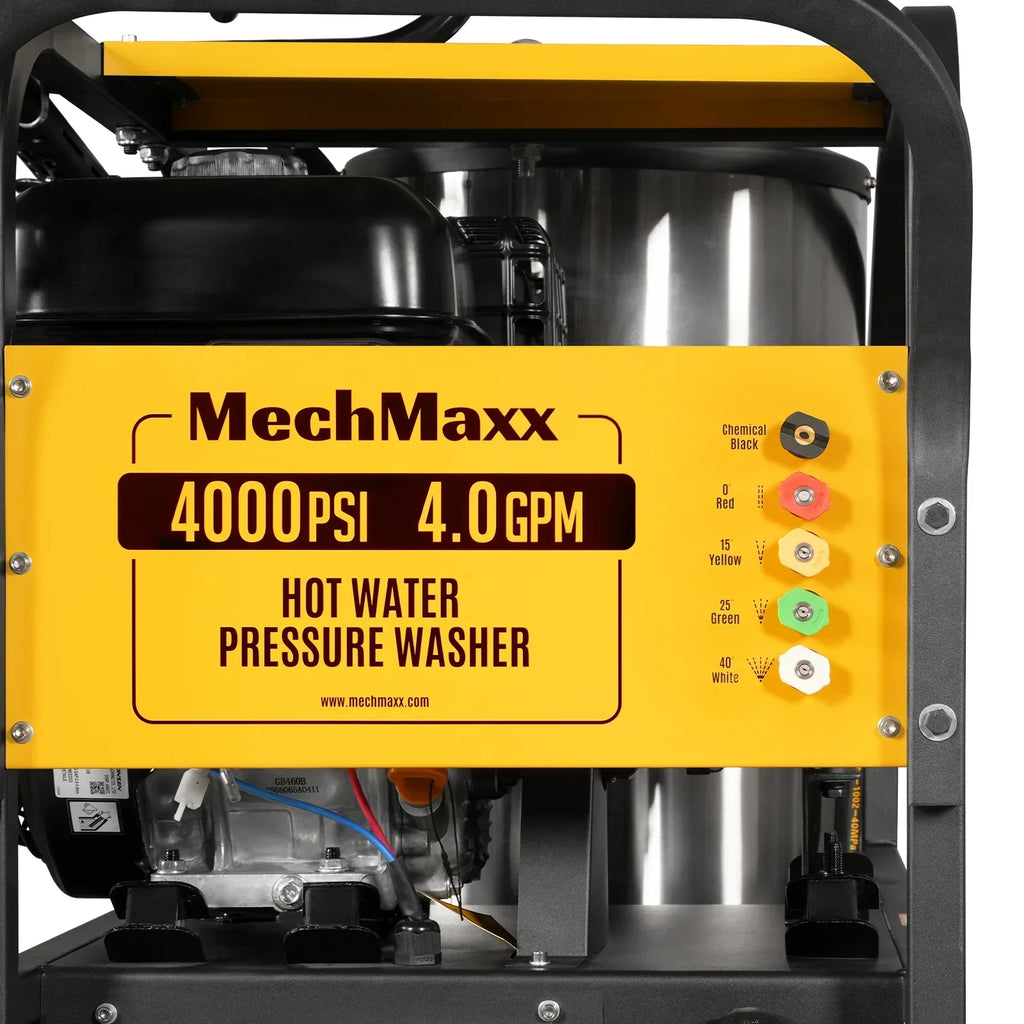

- Hose reel, 3/8" x 50' hose and full nozzle set included
Specifications
| Engine | ZONSEN GB420 | Max Temperature | 200℉ (93℃) |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Igniter | 12V |

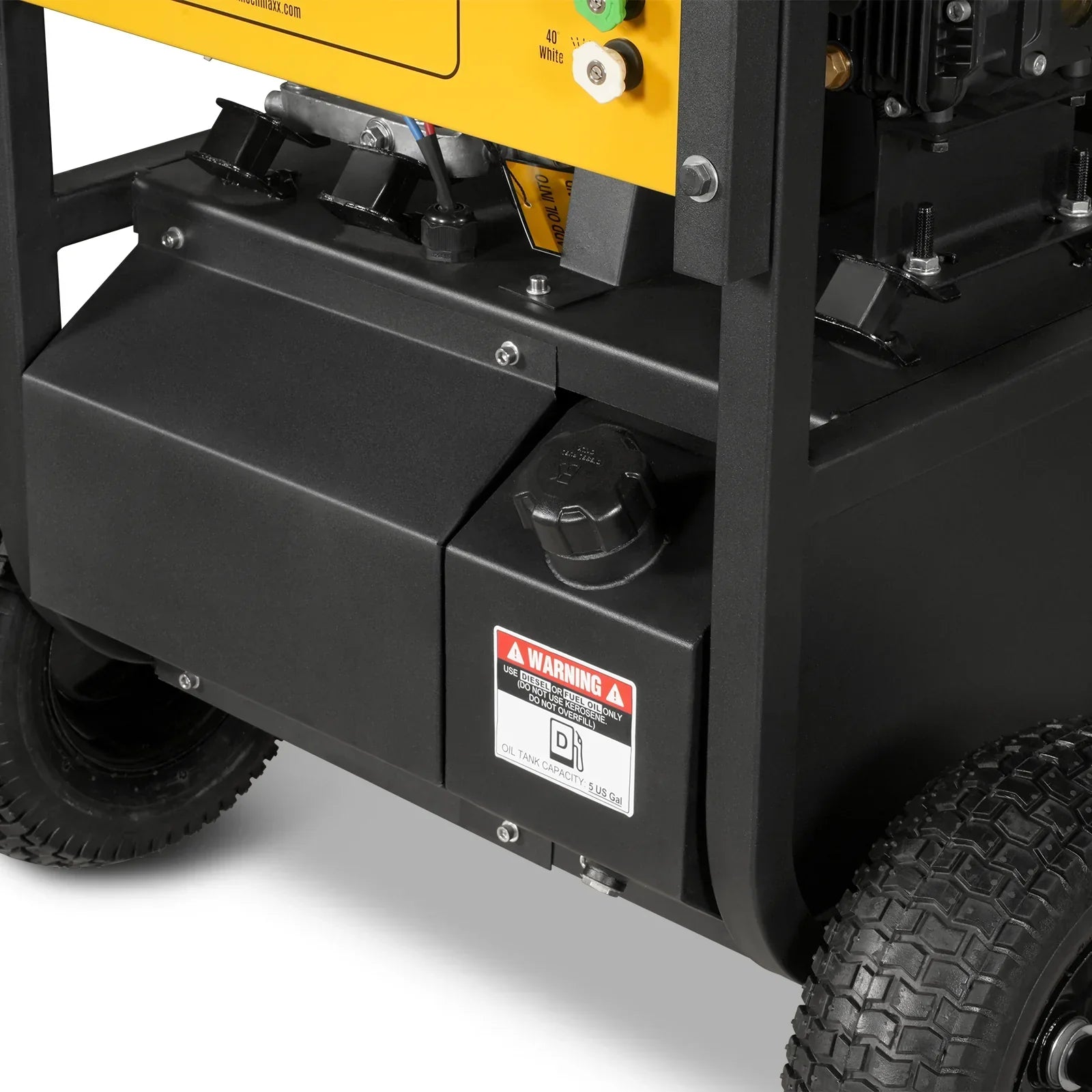

| Displacement | 420 cc; 13.4 HP | Burner Fuel | 5 US gal (19L) Diesel |
| Start Type | Electric Start (battery included) | Drive | Direct |
| Engine Fuel | 1.6 US gal Clean, fresh, unleaded gasoline | Pump Type | Triplex Plunger Pump / Oil Bath Crankcase |
| Engine Oil | 0.3 US gal SAE 10W-30 | Pump Oil | SAE 10W/30 or 15W/40 Non-detergent Oil |
| Machine Type | Portable with 13" Pneumatic Tires | Standard Accessories | 3/8" x 50' High Pressure Hose; 0°, 15°, 25°, 40° and Chemical Nozzles; 36" Spray Gun & Wand Assembly; Hose Reel; Siphon Tube |
| Pressure Range | 3500-4000 PSI | Package Method | Iron Frame |

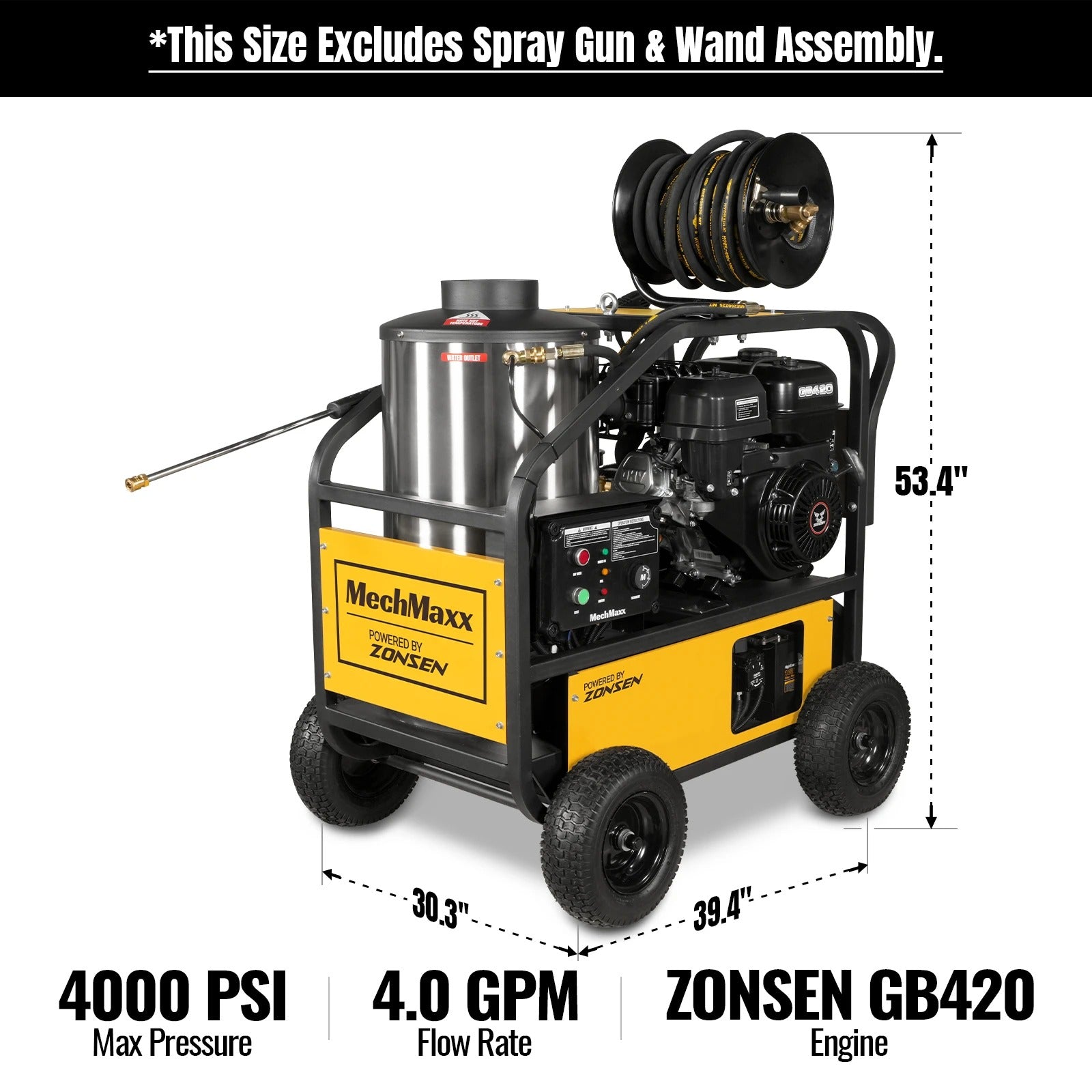

| Flow Rate | 4.0 GPM | Packing Size | 43.7 x 25.6 x 49.8 in |
| BTU Per Hour | 350,700 BTU | Weight (N.W / G.W.) | 450 / 507 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
