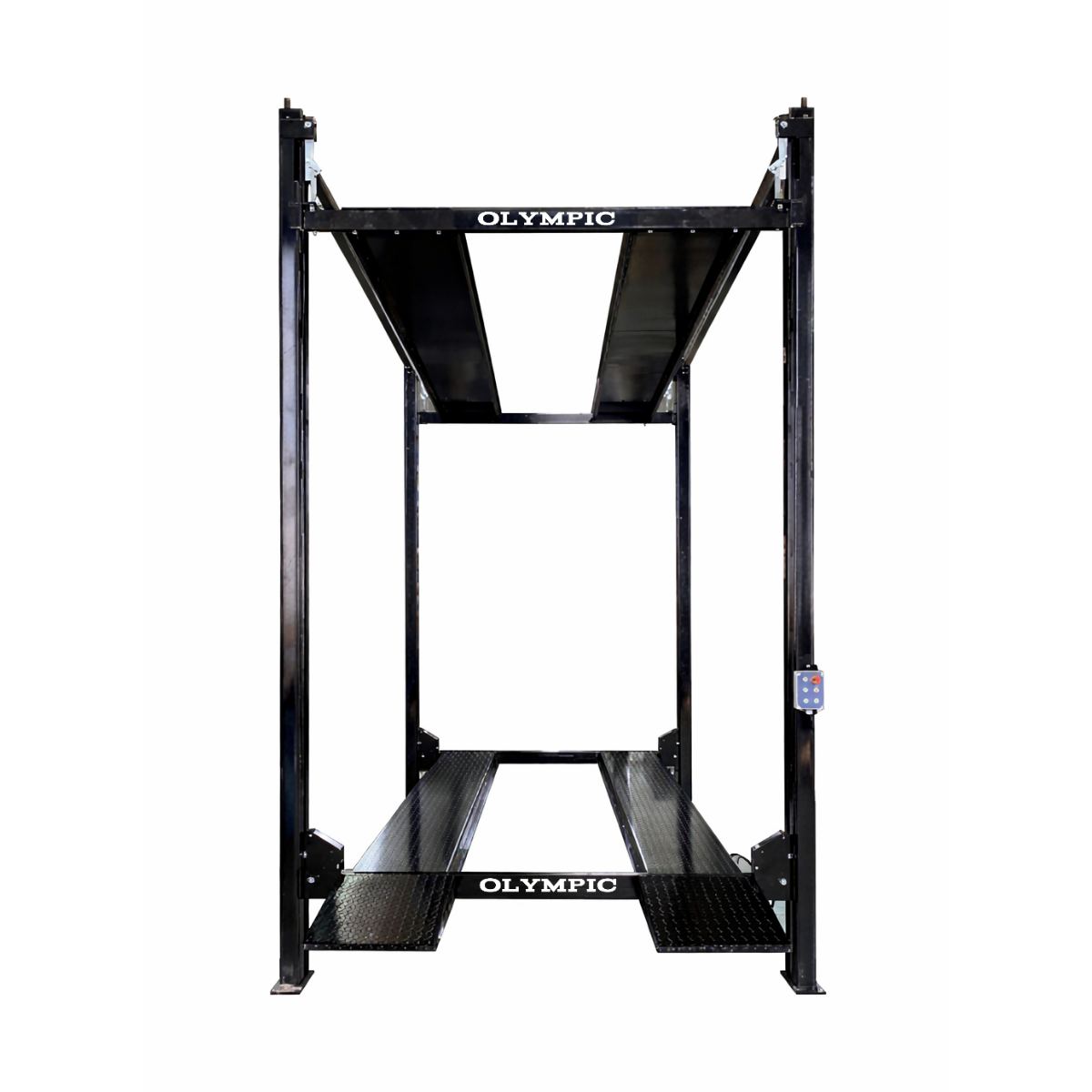

"The Triple-Stacker-XL" Car Storage Lift
Model: 4032-XL. "The Triple-Stacker-XL" Three Car Storage Lift is designed for multi-vehicle storage. Features Olympic's exclusive heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety.
Specifically designed to accommodate the largest classic cars and trucks from the golden age of American automotive manufacturing.
The "Triple-Stacker-XL" is designed to stack and store three vehicles in a single parking footprint, making it ideal for garages, dealerships, and storage facilities in one parking space.
Total Capacity: 16,000 lbs. (Upper 7,000 / Lower 9,000) | Max Lift Height: 154.4″ (Upper) | Warranty: 10 Years
*Special Order Only. See Company Policies for more details.
Key Features

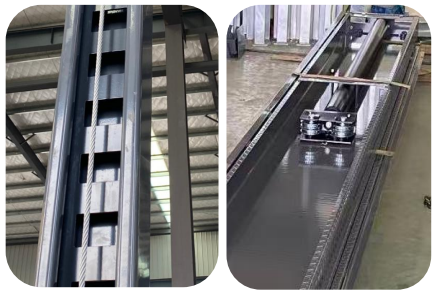

- Heavy-duty 4-post design for triple vehicle storage
- 16,000 lb. total lifting capacity (7,000 upper / 9,000 lower)
- Powerful 3KW 60Hz three-horsepower 1ph motor

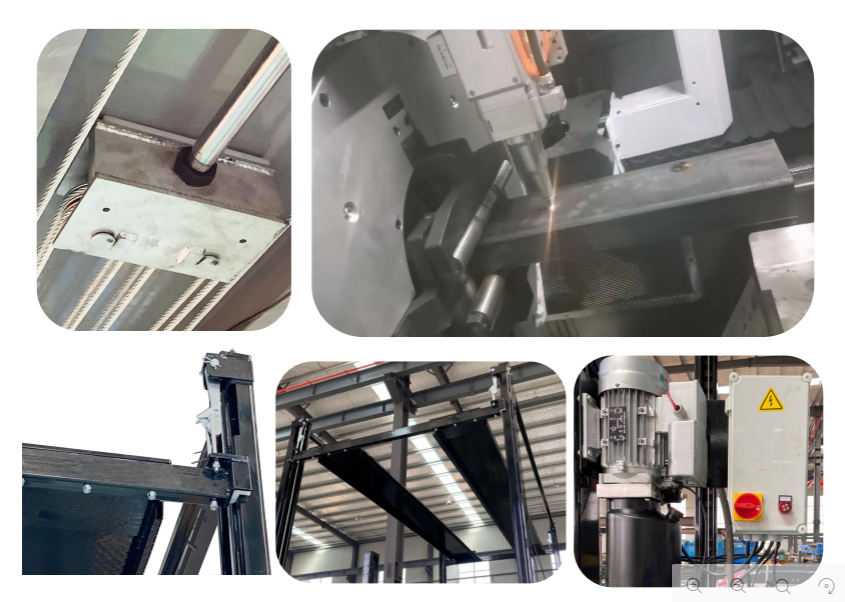

- Manufactured from durable Q235 spec steel
- Wide platform design for larger vehicles
- Smooth and stable lifting operation
- Efficient space-saving vertical parking system
- Includes plastic oil trays (6 pcs)
- Includes heavy-duty steel ramps (2 pcs)

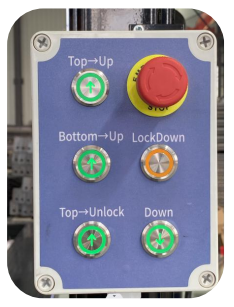

- User-friendly control box included
- Ideal for residential and commercial applications

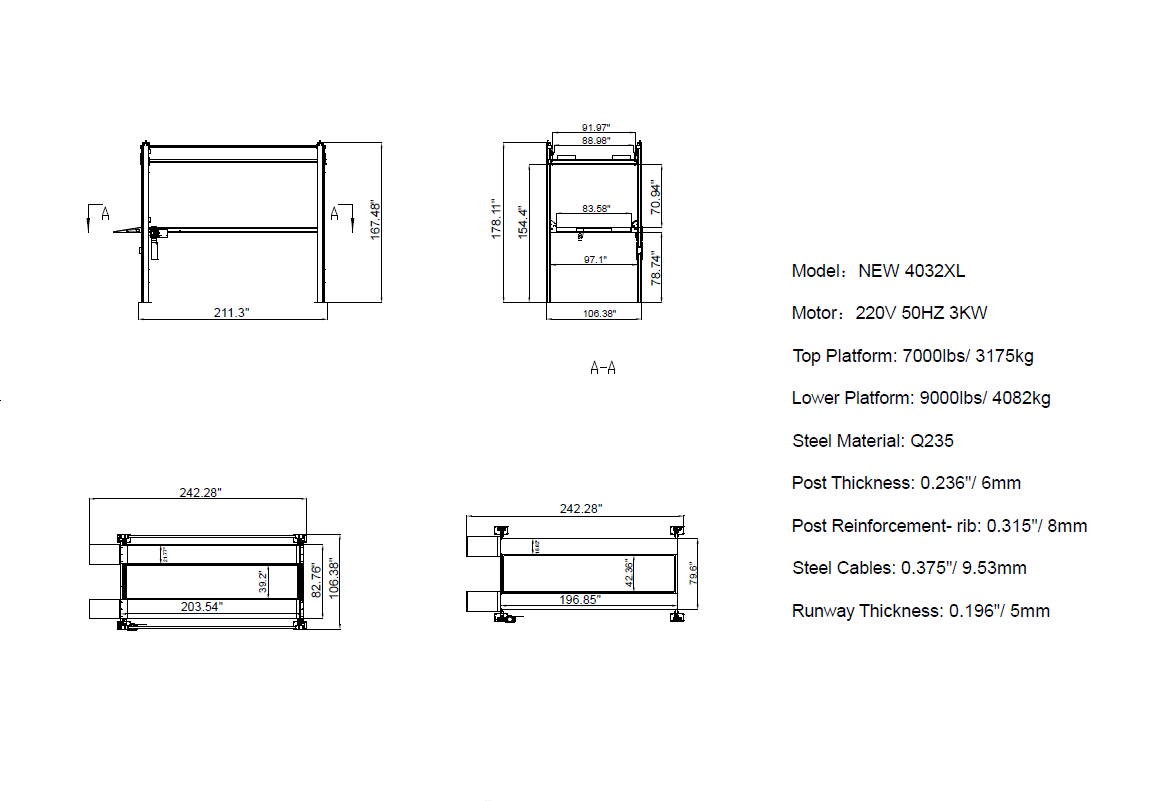

Specifications
| Model | NEW 4032XL |
|---|---|
| Lift Type | 4-Post Triple Car Storage Lift |
| Upper Platforms Capacity | 7,000 lbs. each |
| Lower Platform Capacity | 9,000 lbs. |
| Max Rise (Upper) | 154.4″ |
| Max Rise (Lower) | 78.74″ |
| Clearance Between Platforms | 70.94″ |
| Overall Width | 106.38″ |
| Overall Length | 242.28″ |
| Column Height | 178.11″ |
| Motor | 3KW |
Why Choose This Lift?
This triple car storage lift is designed for customers who demand maximum space efficiency without compromising on strength or safety. Its robust construction, high load capacity, and reliable performance make it a dependable solution for long-term vehicle storage.
Whether for personal collections or commercial use, this lift delivers exceptional value and performance.
