TECHNICAL SPECIFICATIONS

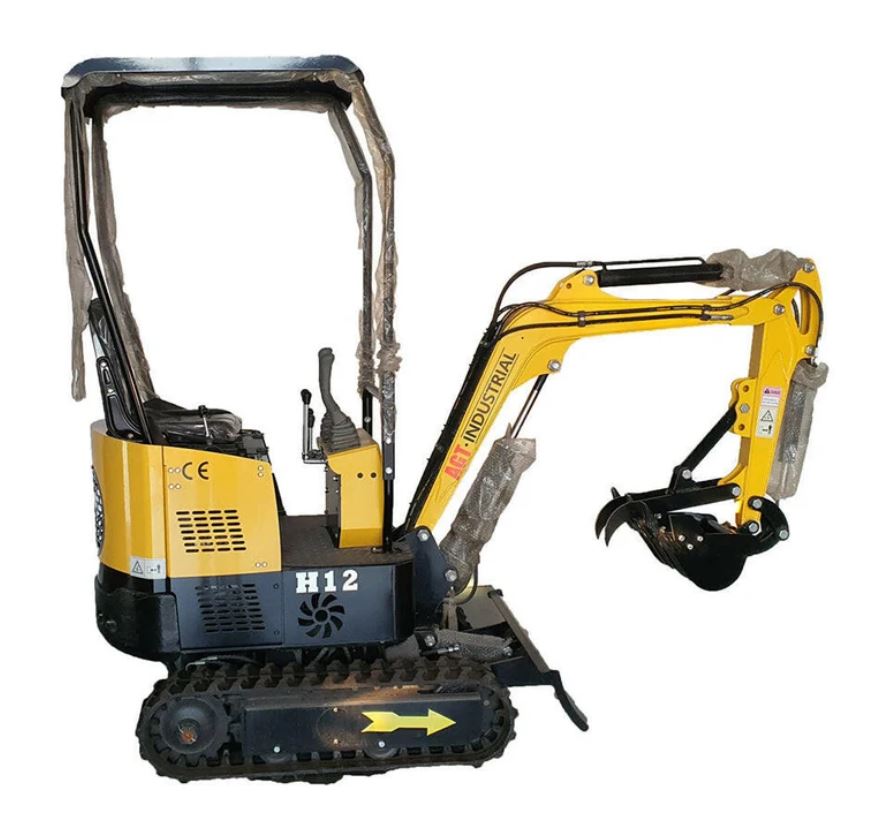

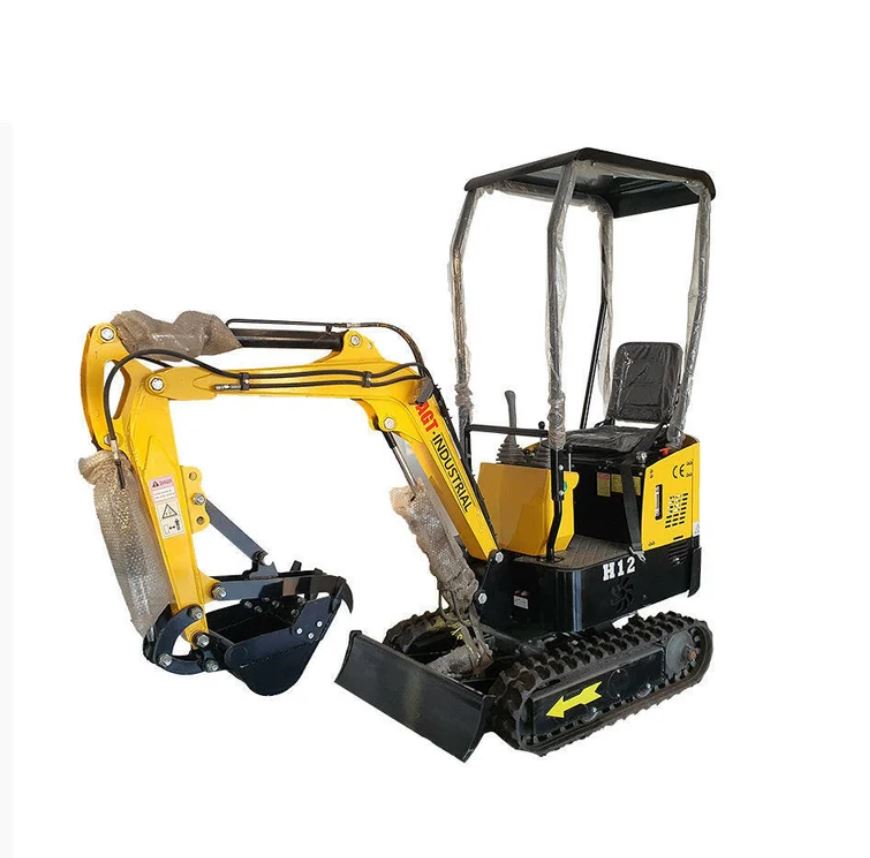

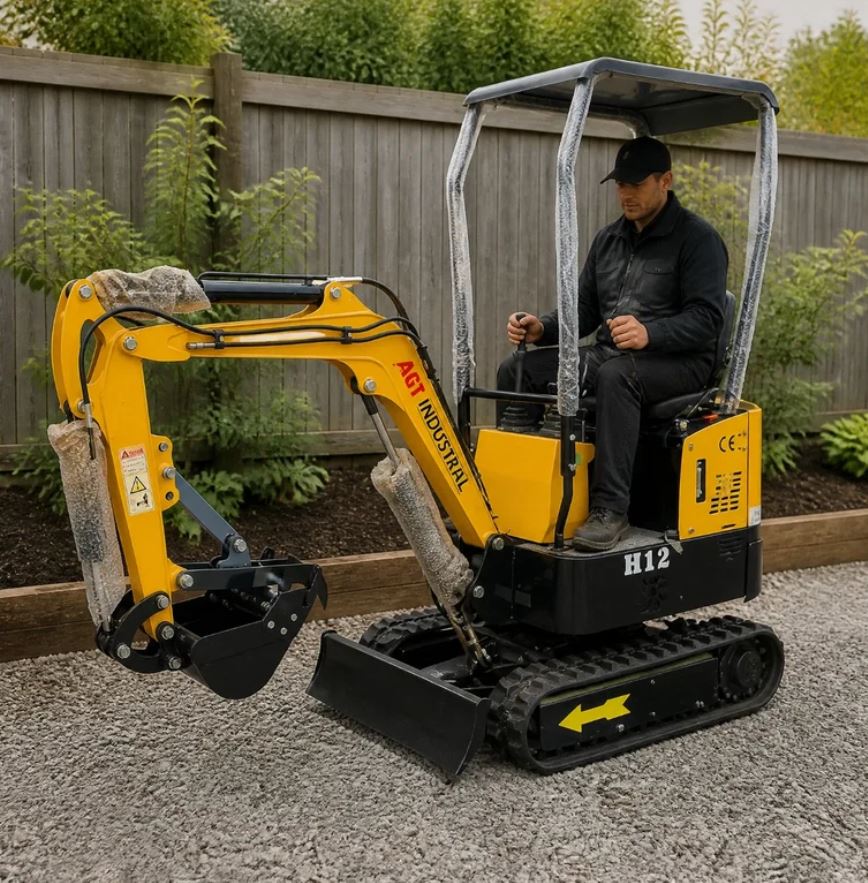

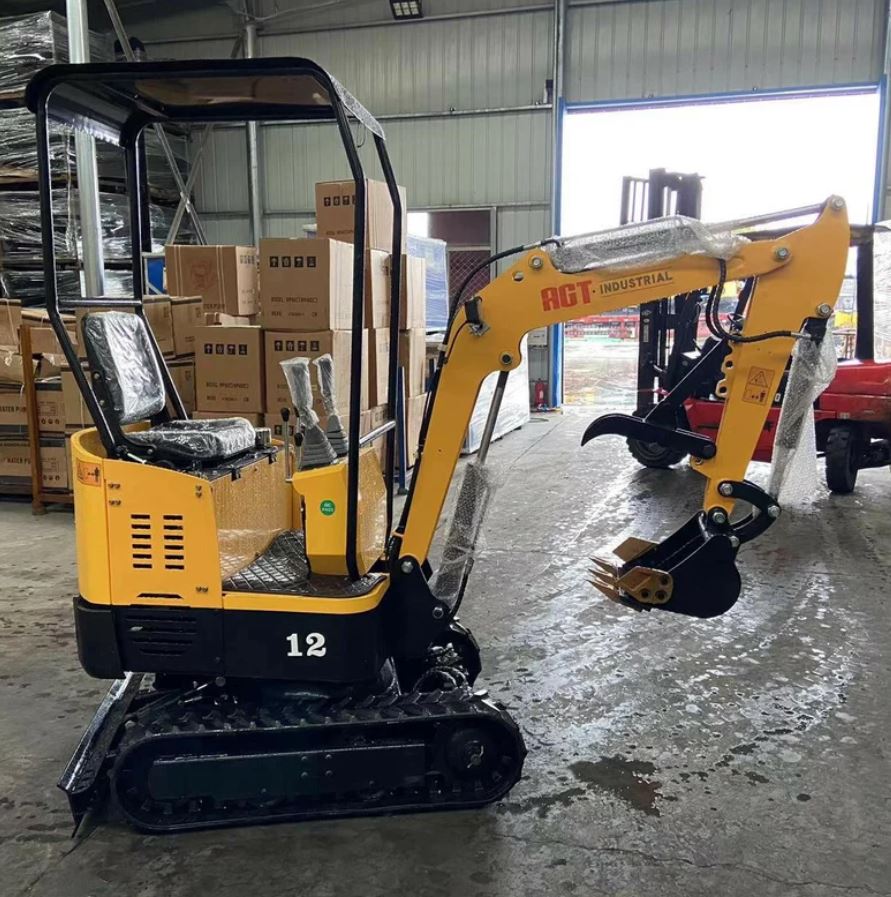

- Equipment Type: Mini Crawler Excavator
- Operating Weight: 1 Ton (2,094 lbs / 950 kg)
- Standard Bucket Capacity: 0.025 m³ (0.88 cu.ft)
- Bucket Digging Force: 6 kN (1,348 lbf)
- Arm Digging Force: 4 kN (899 lbf)
- Swing Speed: 10 rpm
- Travel Speed: 0–1.8 km/h (0–1.12 mph)
- Climbing Ability / Max Angle: 30% (approx. 16.7°)
DIMENSION
- Transport / Overall Length: 2,240 mm (88.2 in)
- Overall Width / Chassis Width: 930–958 mm (36.6–37.7 in)
- Overall Height: 2,200 mm (86.6 in)
- Wheelbase: 900 mm (35.4 in)
- Track Gauge / Track Width: 758 mm (29.8 in)
- Track Size: 180*72*37 (Width*Pitch Length*Links)
- Minimum Front Swing Radius: 1,330 mm (52.4 in)
- Tail Swing Radius: 800 mm (31.5 in)
WORKING RANGE
- Max Digging Depth: 1,644 mm (64.7 in / 65 in)
- Max Digging Height: 2,565 mm (101 in)
- Max Dumping / Unloading Height: 1,933 mm (76.1 in)
- Max Digging Radius: 2,960 mm (116.5 in)
- Max Vertical Digging Depth: 1,422 mm (56 in)
- Dozer Blade Width: 907 mm (35.7 in)
- Dozer Blade Height: 200 mm (7.9 in)
- Dozer Blade Lift Height: 140 mm (5.5 in)
- Dozer Blade Dig Depth: 270 mm (10.6 in)
ENGINE
- Engine Brand: Briggs & Stratton (B&S)
- Model: 13.5HP XR2100 Series
- Fuel Type: Gasoline (92#)
- Rated Power: 9.8 kW (13.5 HP)
- Rated Speed: 3600 rpm
- Number of Cylinders: 1
- Cooling Method: Forced Air Cooling
- Engine Oil Volume: 1.1 L (0.29 gal)
- Fuel Tank Capacity: 6.6 L (1.74 gal)
HYDRAULIC SYSTEM
- Main Pump Type / Model: Gear Pump / 06 (Tianjin Walking)
- Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSI)

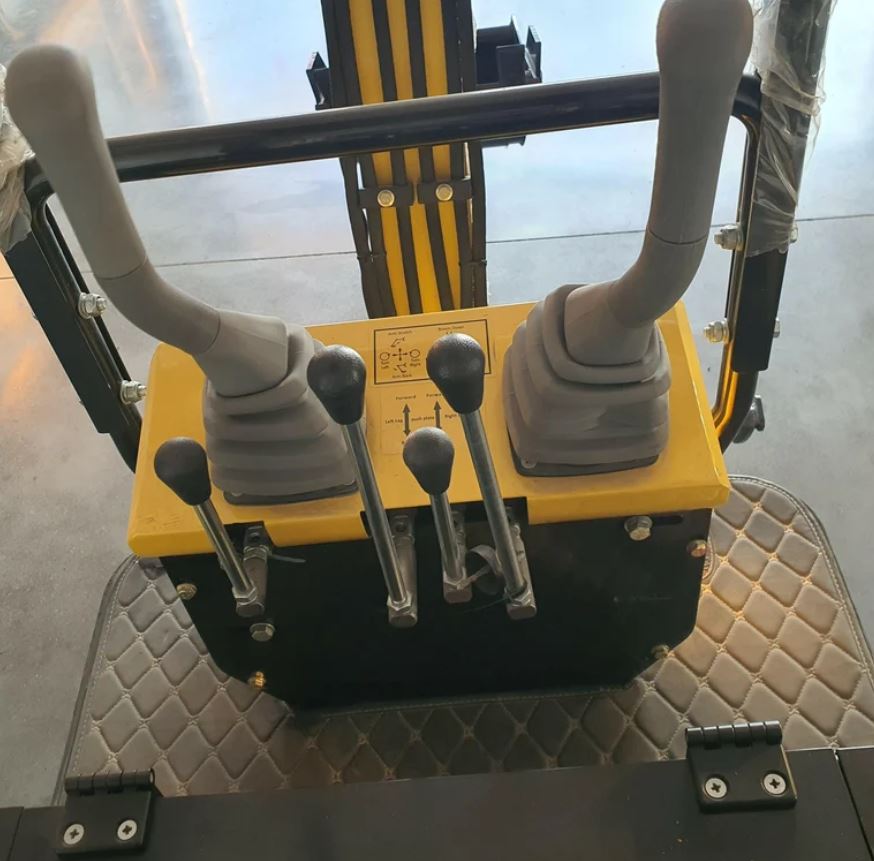

- Control Valve: 8-Way Manual Multi-Way Valve (North)
- Traveling Hydraulic Motor: BM6-315 (Liyuan)
- Rotary Hydraulic Motor: BM2-315
- Hydraulic Tank Capacity: 12 L (3.17 gal)
FEATURES
- Compact Structure Design
- Fan Cooled Gas Engine
- Dozer Blade
- Canopy / Sunshade
- Armrest & Mechanical Tensioning
