Description

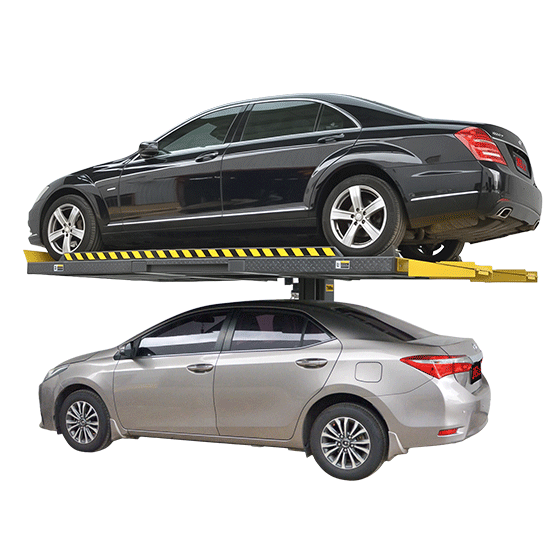

The AMGO SPL-7 is a 7,000-lb single-post parking lift that turns one garage bay into two parking spaces. Drive a vehicle onto the platform, raise it on a single reinforced column, and park a second car underneath — a practical fix for a crowded home garage or a shop that is short on floor space.

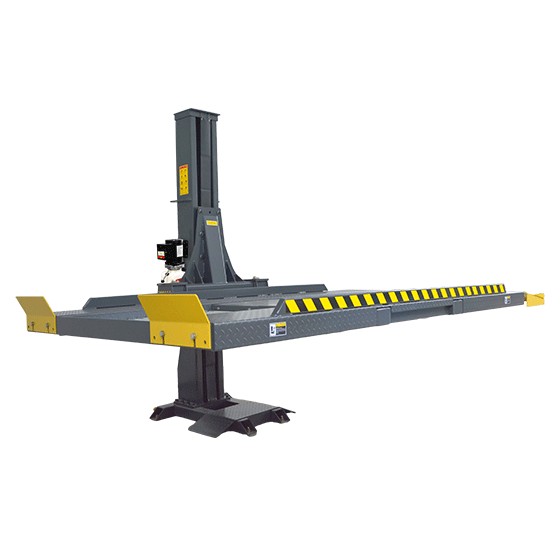

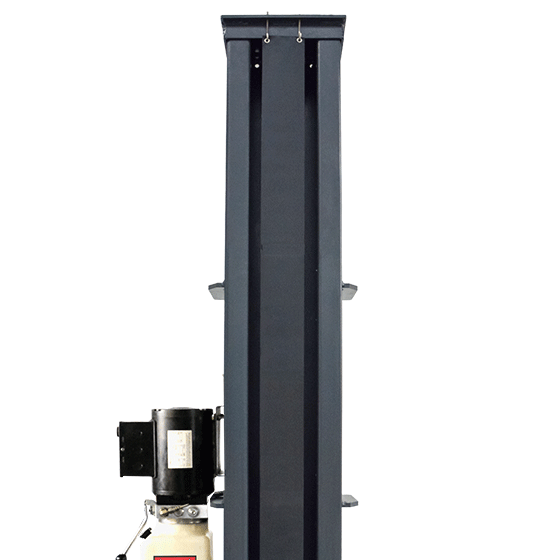

Built on commercial-grade reinforced construction, the SPL-7 is engineered for both professional shops and home garages. Its space-saving single-column design fits ceilings as low as 110 inches, and the ETL-certified AMGO power unit runs on a 1.0 HP, 110V single-phase motor — standard shop power, with no air line or compressor required.
Two safety devices share a single-point release lock, so lowering the lift is one controlled motion. A durable fabric chain cover shields the cylinder, interchangeable H-shaped non-slip platforms carry the load, and foldable drive-on ramps plus a guide ramp come standard for easy drive-on and drive-under access.
Because it ships as large freight, the SPL-7 arrives in two crated packages — a steel rack of base and carriage components, and a long bundle holding the column, platforms, guide ramp, storage wave panels, and power unit. Plan for a forklift or loading dock to unload, or arrange a liftgate delivery.
Features
- 7,000-lb lifting capacity for everyday passenger vehicles up to the rated weight.
- Commercial-grade reinforced construction rated for professional shops and home garages.

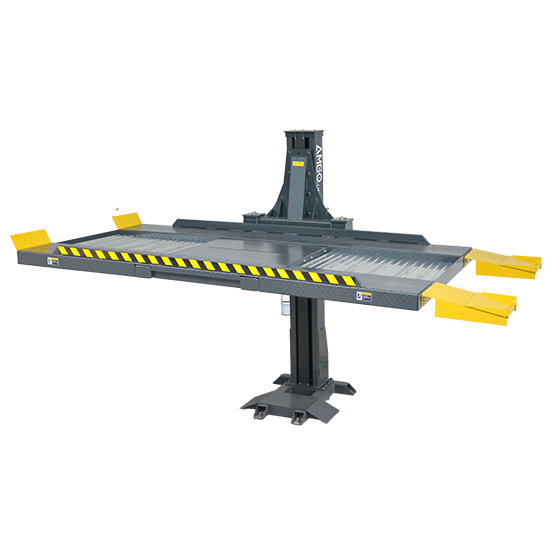

- Space-saving single-column design that fits ceilings as low as 110 inches.
- Dual safety devices with a single-point release lock — no air source needed.
- Interchangeable H-shaped non-slip platforms.

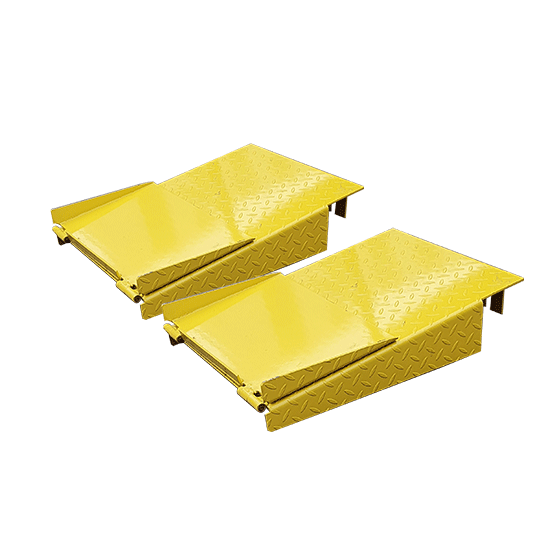

- Foldable drive-on ramps included as standard equipment.
- Guide ramp standard for easy drive-under access to the lower parking space.

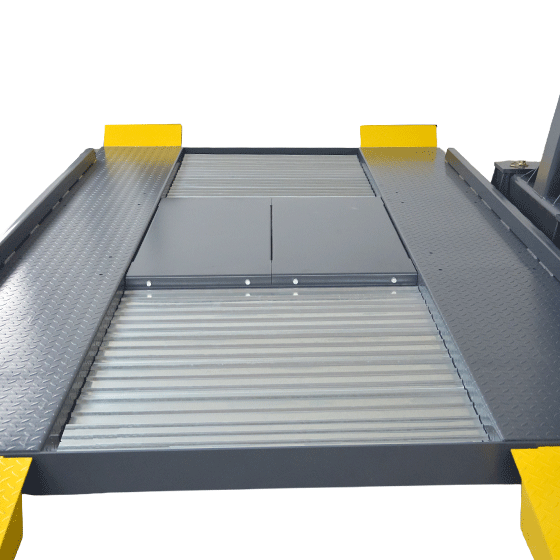

- Storage wave panels standard.

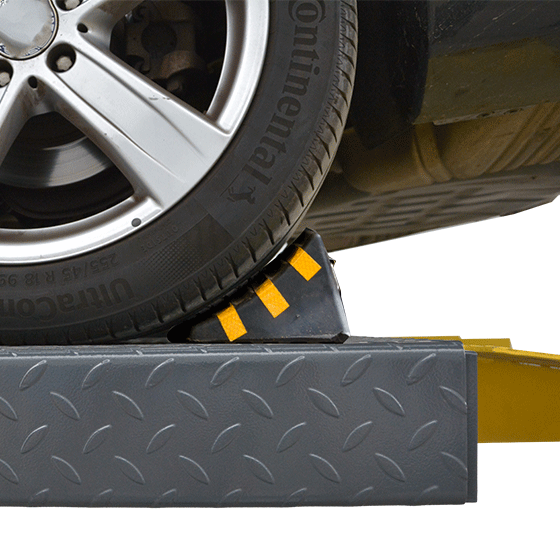

- Rubber wheel chocks standard.
What's Included
Every SPL-7 ships ready to install with:
- Interchangeable H-shaped non-slip platforms
- Foldable drive-on ramps
- Guide ramp for drive-under access
- Storage wave panels
- Rubber wheel chocks
- ETL-certified AMGO power unit
- User manual and warranty card

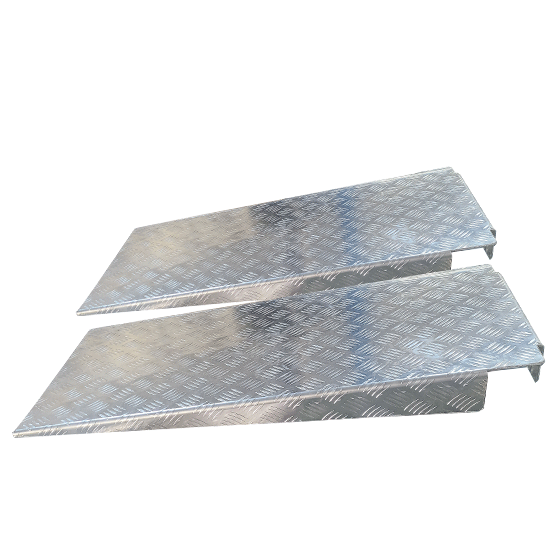

An optional aluminum alloy drive-in ramp (P/N 40815) is available separately.
Specifications

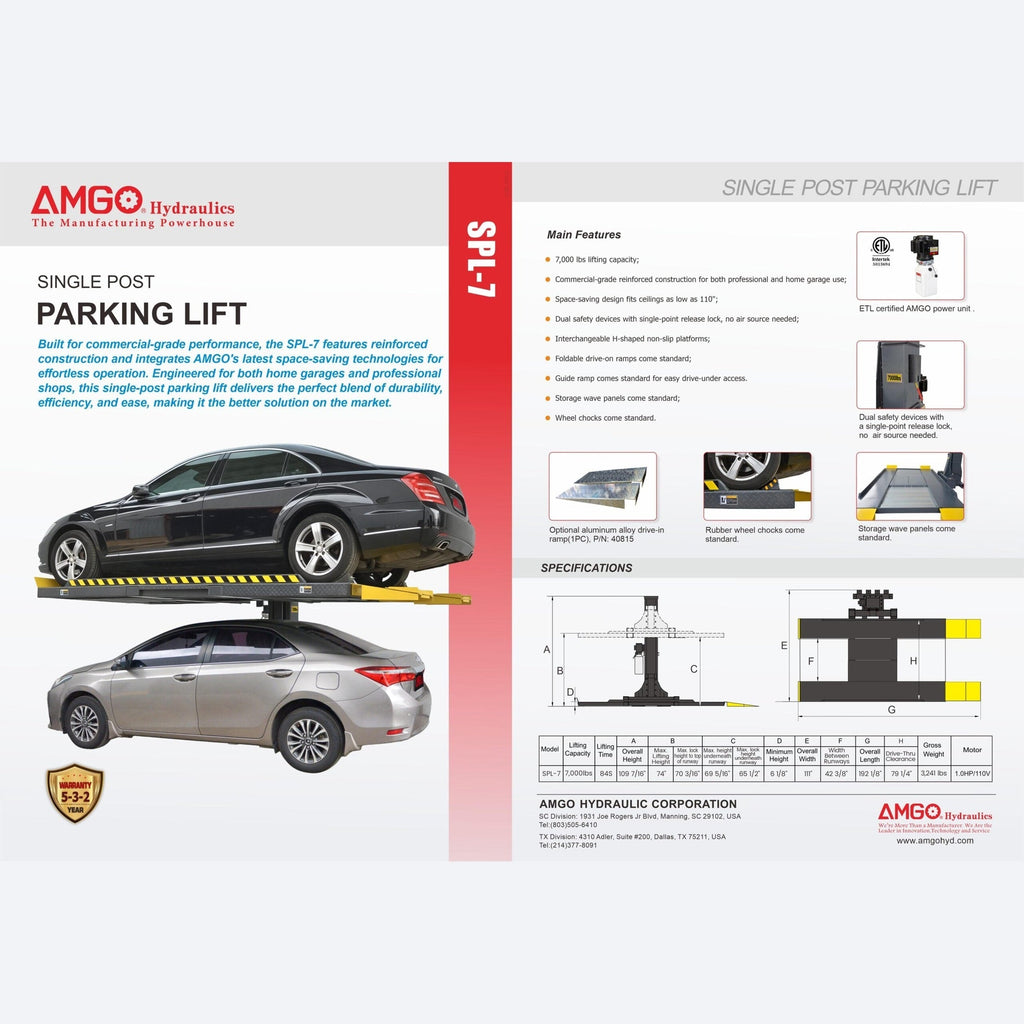

Letter callouts in the table match the dimension diagram below.
| AMGO SPL-7 Single-Post Parking Lift Specifications | |
|---|---|
| Lifting Capacity | 7,000 lbs |
| Lifting Time | 84 seconds |
| Overall Height (A) | 109 7/16" |
| Max. Lifting Height (B) | 74" |
| Max. Lock Height to Top of Runway | 70 3/16" |
| Max. Height Underneath Runway (C) | 69 5/16" |
| Max. Lock Height Underneath Runway | 65 1/2" |
| Minimum Height (D) | 6 1/8" |
| Overall Width (E) | 111" |
| Width Between Runways (F) | 42 3/8" |
| Overall Length (G) | 192 1/8" |
| Drive-Thru Clearance (H) | 79 1/4" |
| Gross Weight | 3,241 lbs |
| Motor | 1.0 HP, 110V / 60Hz |
Warranty
AMGO backs the SPL-7 with its 5-3-2 warranty:
- 5 years on steel structural components
- 3 years on hydraulic parts
- 2 years on the power unit, electrical, and other parts
Each lift is delivered with a user manual covering installation, maintenance, and troubleshooting, along with an official warranty card.
FAQ
Does the SPL-7 need special electrical service?
No. The power unit runs on a 1.0 HP, 110V/60Hz single-phase motor, so it operates on standard 110V shop power.
Do I need an air line or compressor?
No. The dual safety devices use a single-point mechanical release lock with no air source required.
What ceiling height does it need?
The lift's overall height is 109 7/16", so the structure installs under a 110-inch ceiling. Allow extra headroom above the raised vehicle based on the height of the car you park on top.
How much room is there for the vehicle parked underneath?
Drive-thru clearance is 79 1/4", with up to 69 5/16" of height beneath the runway (65 1/2" at the locked position).
