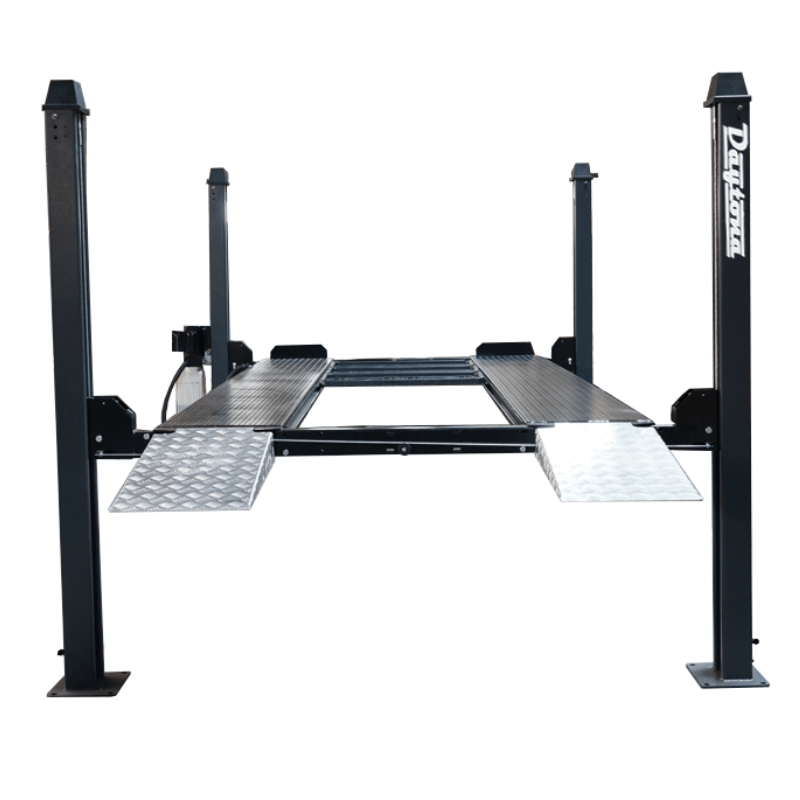

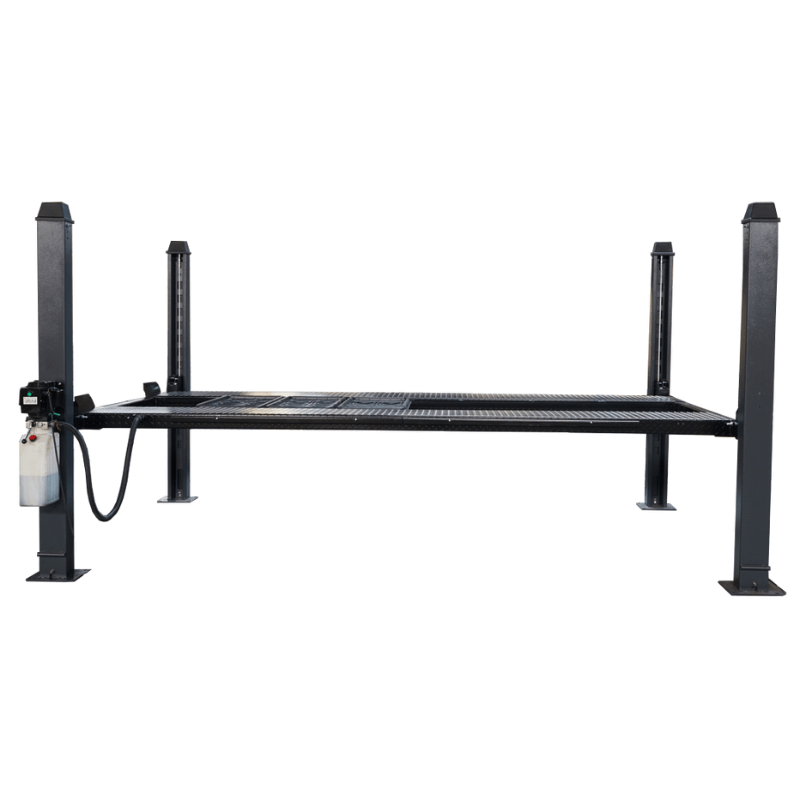

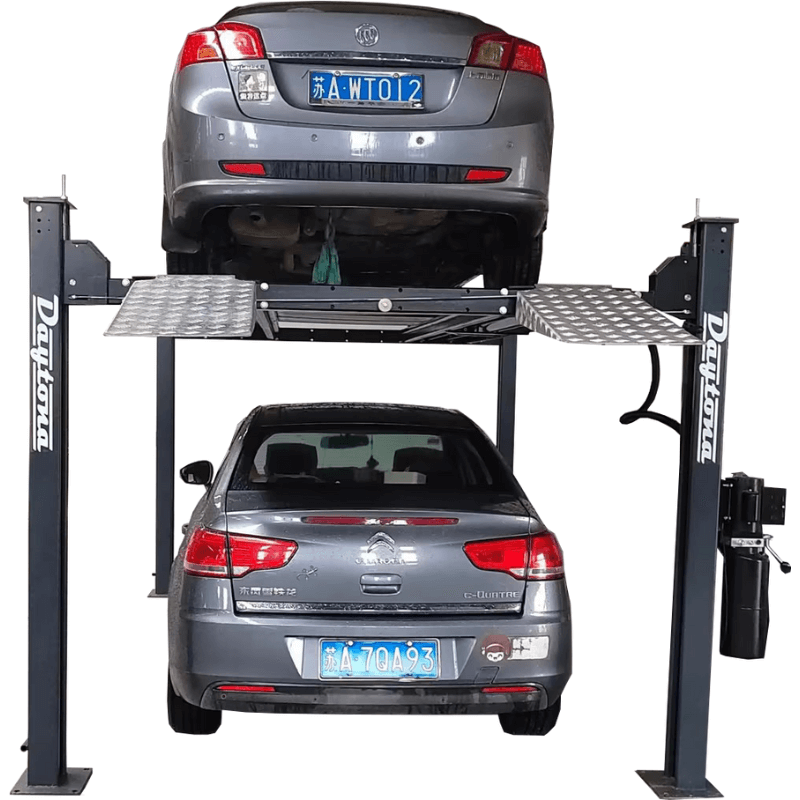

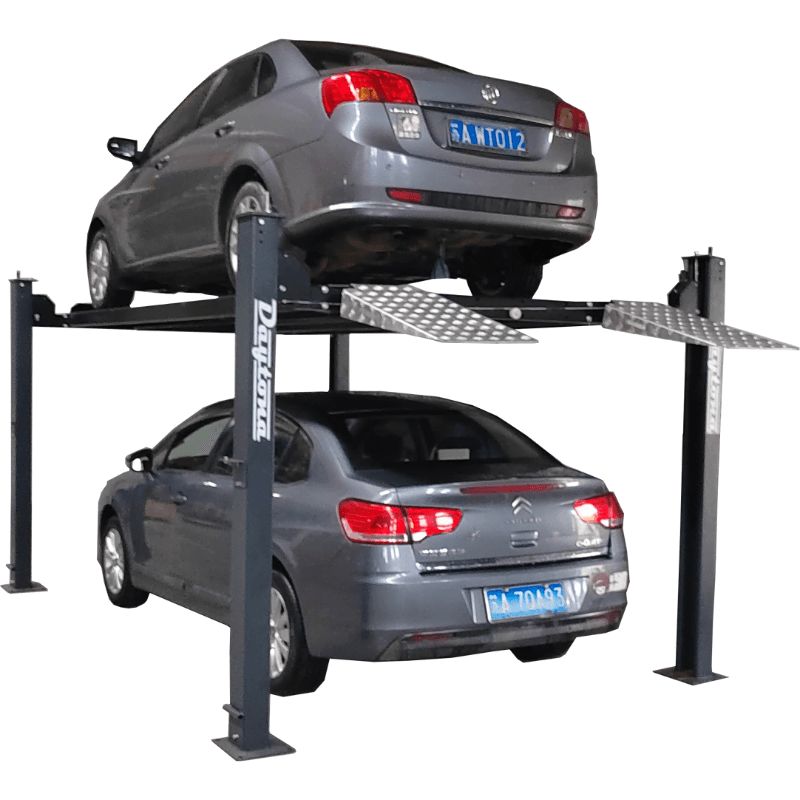

Daytona 10,000 lb 4-Post Parking Lift LFPP10

LFPP10 10,000lb 4-Post Parking Lift

Maximize your garage or commercial shop space with the Daytona LFPP10 10,000lb 4-Post Parking Lift. Designed for both professional and personal use, this heavy-duty lift offers exceptional safety, durability, and convenience. With aircraft-grade lifting cables, a 3.5" heavy-duty cylinder, and dual safety lock mechanisms, you can trust this lift for long-term vehicle storage or maintenance tasks.

This lift includes a removable aluminum approach ramp, adjustable runways, and comes standard with a steel jack tray and three plastic drip trays to keep your garage clean and organized. The powder-coated finish ensures lasting durability, while the pump’s flexible mounting capability gives you installation versatility. Ideal for cars, SUVs, and light-duty trucks, this 4-post lift combines safety and performance in a space-efficient design.

LFPP 10 Specification

• Capacity: 10,000 lbs

• Rise Time: 90 s

• Drop Time: 60 s

• Motor & Power: 110V, 1PH, 20 AMP

• Post Dimensions: 5" x 6"

• Post Bases: 12" x 12"

• Approach Ramp Dimensions: 37" x 19.5"

• Clearance Under Runway at Full Height (A): 77"

• Overall Height (B): 96"

• Overall Length Including Post Bases (C): 197.5"

• Pump Projection from Post (D): 13"

• Overall Width Including Post Bases (E): 126.5"

• Inner Width Inside Posts (F): 113"

• Runway Span (G): 82.5"

• Runway Width (H): 18.5"

• Runway Length (I): 182"

• Inner Length Inside Posts (J): 179"

• Concrete Requirements: Minimum of 4"-3000psi

• Pallet Dimensions:

  • 191” x 24” x 29”

  • Pallet Weight: 2,380 lbs

LFPP10 10,000lb 4-Post Parking Lift Special Features

• Four mechanical locking devices with primary and secondary locks

• Single point manual safety release

• Removable aluminum approach ramp

• Aircraft-grade lifting cables for reliability

• Heavy-duty 3.5" hydraulic cylinder

• Matted powder coat finish for durability

• Adjustable runway widths

• Pump can be mounted on any post for flexible setup

• Includes:

  • Steel jack tray

  • 3 plastic drip trays

• Sold Separately (not included)

  • Rolling Jack - RAJ5

• Daytona 5-2-1 Warranty:

  • 5 Year Structural

  • 2 Year Electric, Cylinders, Seal Kits

  • 1 Year Defective Parts

Daytona LFPP10 Manual

  Daytona LFPP10 Product Brochure
