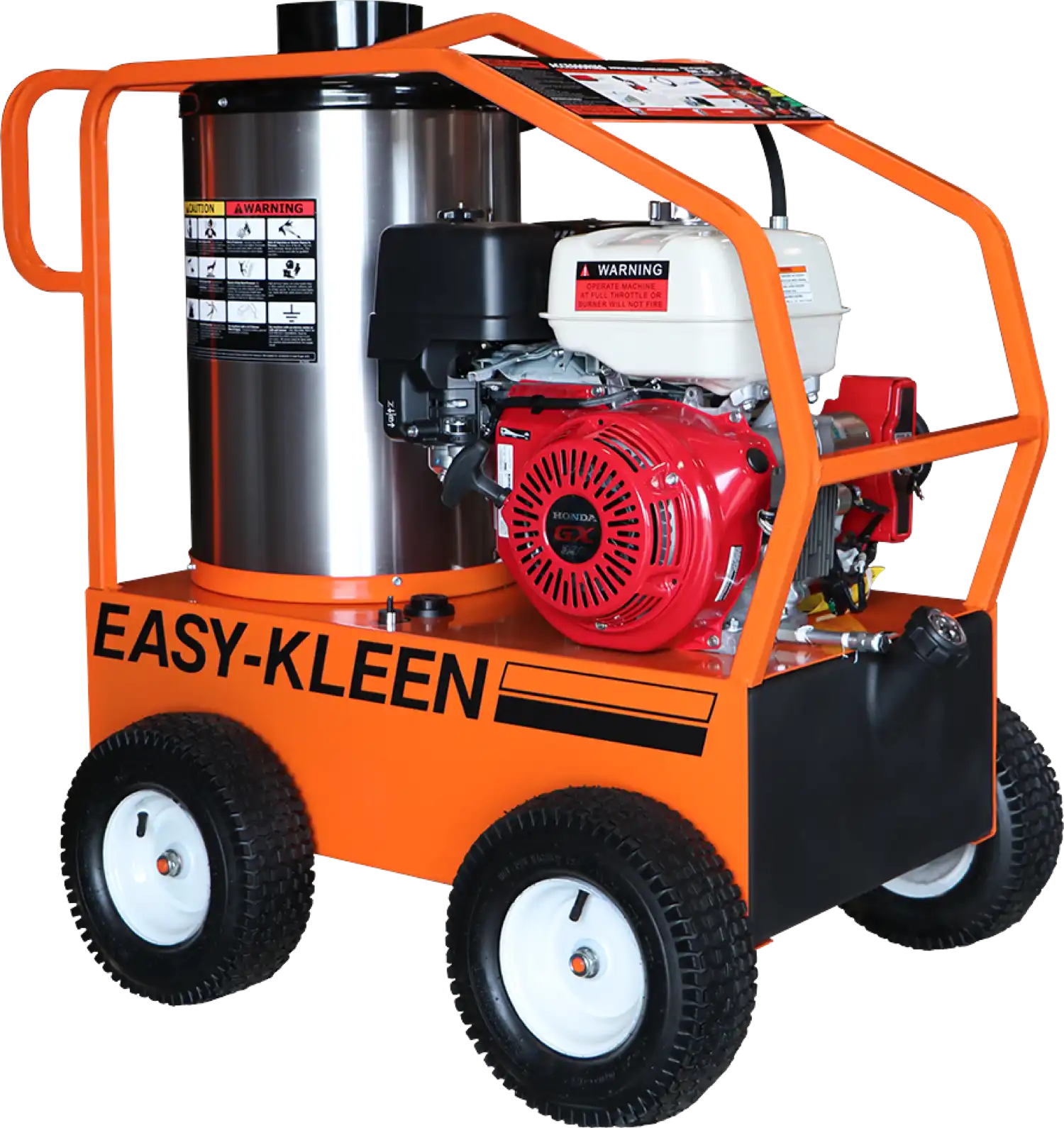

The Honda-powered version of Easy Kleen's 4,000 PSI hot water unit. Same 350,000 BTU burner, same General Pump triplex, same Schedule 80 coil — the difference is the GX390, which is the engine most crews already know how to service and can get parts for anywhere.
Key Features
- 4,000 PSI at 3.5 GPM with a 145–150°F temperature rise

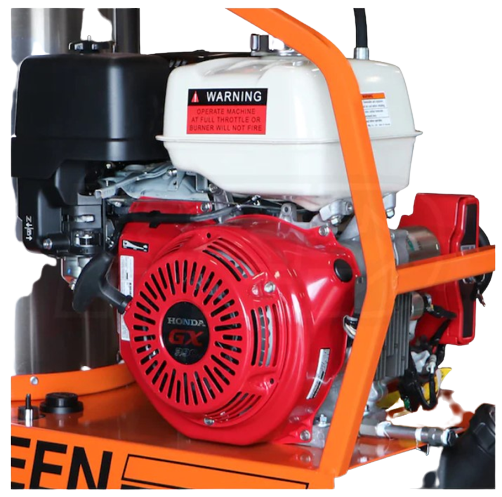

- Honda GX390 389cc, 13 HP with 12-volt electric start and recoil backup
- 350,000 BTU oil-fired burner on its own 12-volt supply — no outlet or generator required
- General Pump direct-drive triplex, carrying Easy Kleen's 5-year pump coverage
- Schedule 80 heating coil in a stainless steel shell, sealed with ceramic blanket insulation
- 12-gauge one-piece roll cage frame, powder coated
- 13 in pneumatic tires on 3/4 in axles
- 10.5 gallon burner fuel tank

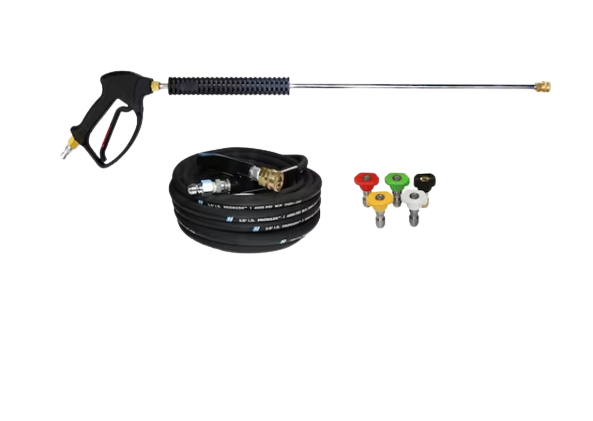

- Ships with 50 ft of rubber hose, a 36 in trigger gun, wand, and five quick-connect tips
Specifications
| Model | EZO4035G-H-GP-12 |
| Water type | Hot |
| Max pressure | 4,000 PSI |
| Flow rate | 3.5 GPM |
| Temperature rise | 145–150°F over ambient |
| Engine | Honda GX390, 389cc, 13 HP |
| Start type | 12V electric, recoil backup |
| Fuel | Gasoline |
| Engine fuel tank | 1.7 gallons |
| Drive | Direct drive |
| Pump | General Pump triplex plunger |
| Burner | Oil-fired (diesel), 12V |
| Burner output | 350,000 BTU |
| Burner fuel tank | 10.5 gallons |
| Burner oil pressure | 130 PSI |
| Coil | Schedule 80, stainless steel shell |
| Thermostat | Adjustable (do not exceed 195°F) |
| Required inlet pressure | 20–60 PSI |
| Frame | 12-gauge steel roll cage, powder coated |
| Wheels | 13 in pneumatic |
| Hose | 50 ft x 3/8 in rubber, quick-connect |
| Nozzles | 5 quick-connect tips |
| Dimensions | 46 x 32 x 48 in |
| Weight | 430 lb |
Warranty
Coverage is by component, as published by Easy Kleen:
- Pump: 5 years (General Pump manifolds and pump)
- Heating coil: 1 year replacement, plus 5 year prorated coverage
- Oil burner: 1 year on burner motor, fuel pump, solenoid, igniters and electrodes
- Frame and welds: Limited warranty against manufacturing defect
- Wear items: 90 days on unloader, valves, injectors, hose and trigger gun
- Engine: Covered separately under the engine manufacturer's own warranty
Fuel filters, nozzles, o-rings and thermal relief valves are not covered.
Every Easy Kleen unit ships free to the lower 48 and is backed by our price match guarantee. Call or text 331-272-5655 and we will match pressure, flow and power supply to the work you actually do.
