- Fully capable of cutting large 32" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
- It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.
- The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
- Can withstand heavy workloads for long hours, even in remote areas.
- The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
- You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.

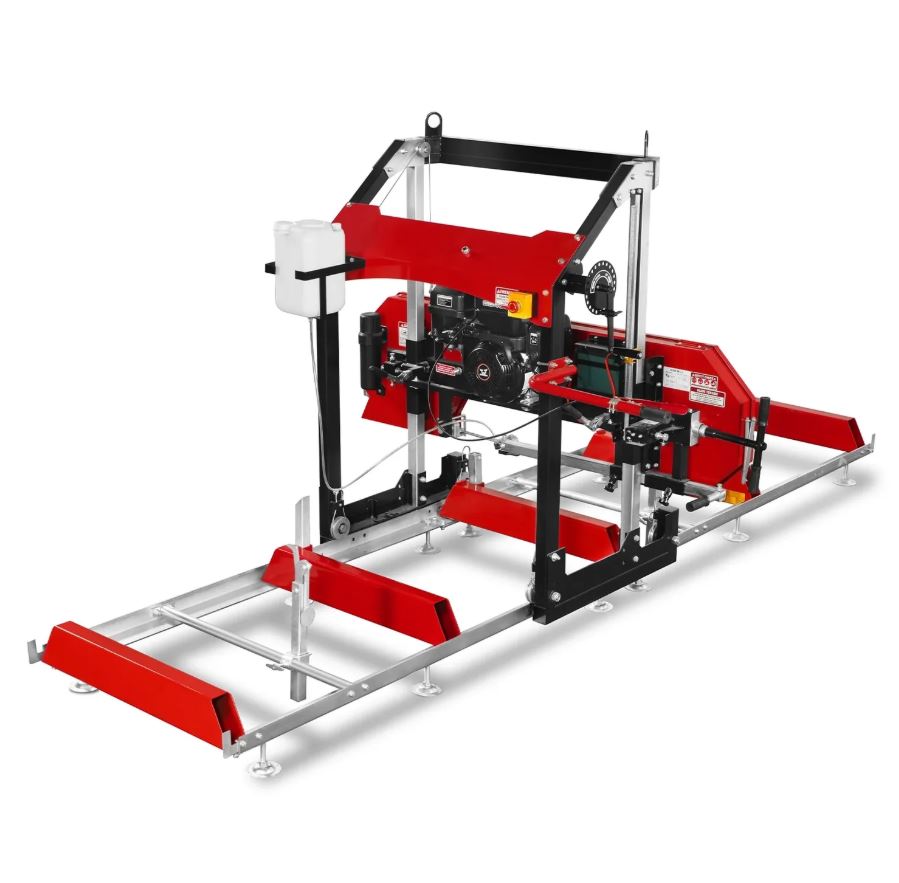

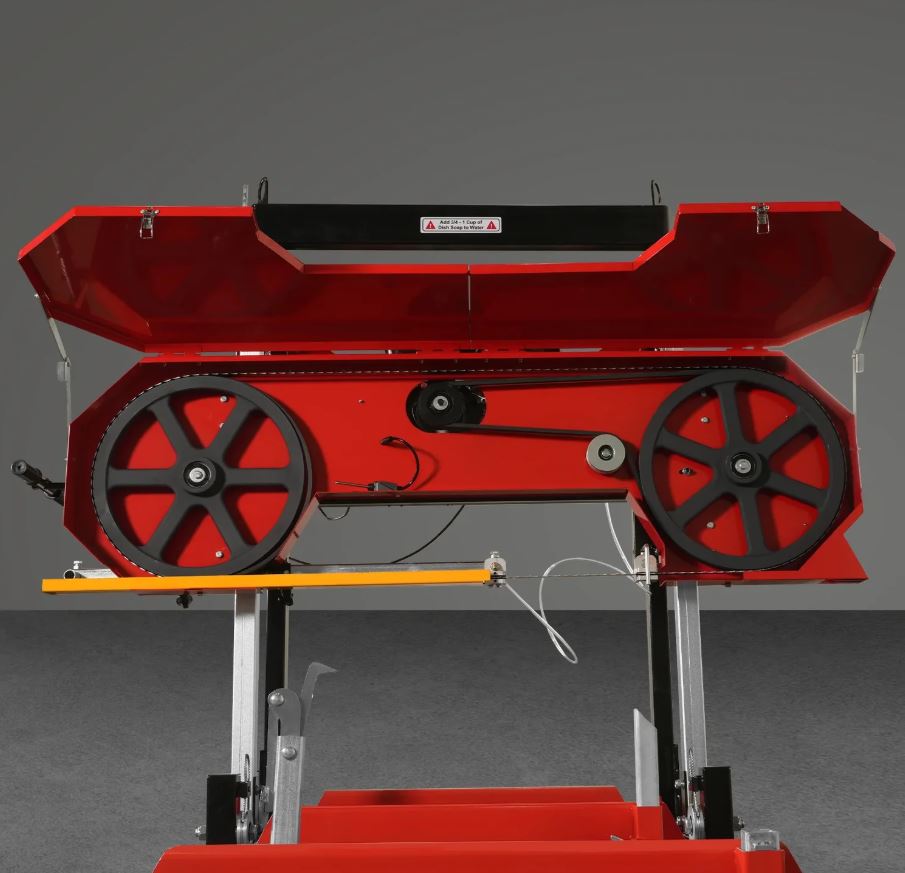

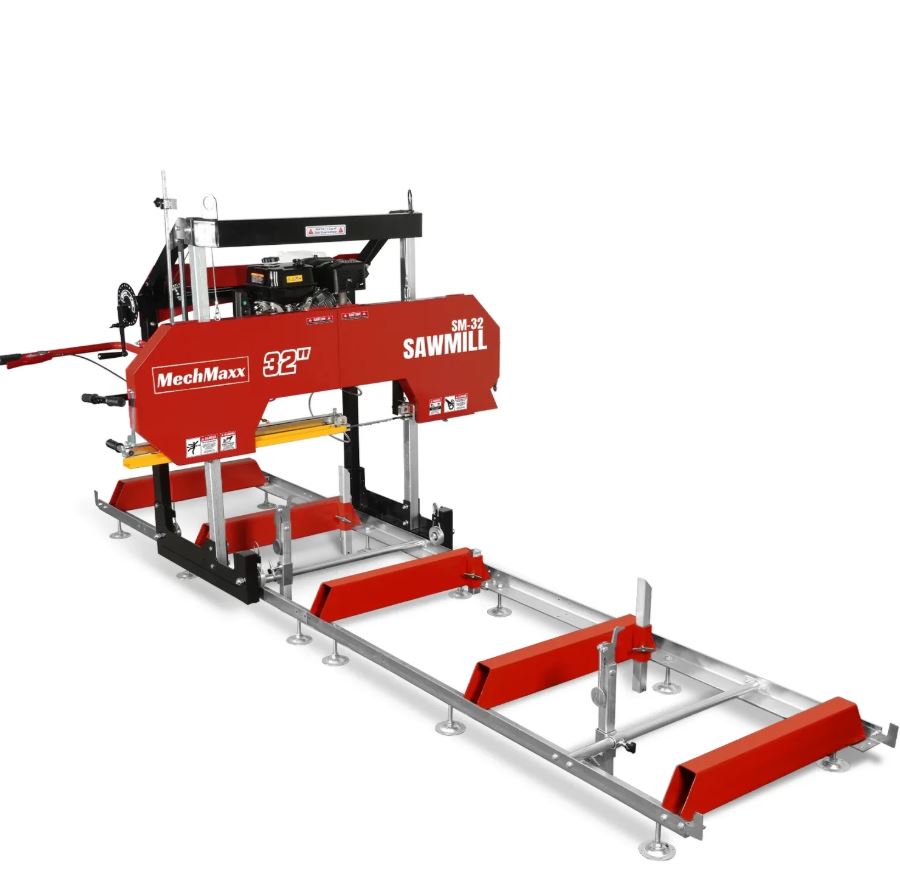

The MechMaxx SM-32 runs a 459cc 15HP ZONSEN GB460 engine with electric start, cutting logs up to 32" in diameter into boards up to 26.5" wide. This 13' track configuration handles cuts up to about 9.9' long on a 3-ton-rated frame, with a 6.4' extension available to lengthen the bed. A belt-driven centrifugal clutch turns the 19" cast iron bandwheel, backed by manual water-lube cooling and a galvanized steel finish.
- 459cc 15HP ZONSEN GB460 gas engine, electric start
- Cuts logs up to 32" diameter, 26.5" max board width
- 13' track, ~9.9' cutting length (6.4' extension available)
- Max board thickness 7", 3-ton track load rating
- 158" x 1.3" blade on a 19" cast iron bandwheel
- 2-year sawmill / 1-year engine warranty
| Engine | ZONSEN GB460 | Lubricant Tank Size | 2.6 gal |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Track Load-Bearing | 3 ton |
| Engine Displacement | 459 cc | Track Width | 3 ft 1 in |
| Horsepower | 15 HP | Track Length | 13 ft |
| Start | E-Start | Track Extension Length | 6.4 ft |
| Log Diameter | 32 in | Height (Max Head Position) | 83 in |
| Max Live Edge Width | 26.5 in | Leveling Feet | 12 |
| Standard Cutting Length | 9.9 ft | Log Rests | 2 Long and 2 Short Rests |
| Max Board Thickness | 7 in | Log Clamps | 2 x Quick Lock |
| Blade Engagement System | Centrifugal Clutch | Track Bunks | 3 x 6 in |
| Cast Iron Bandwheel Diameter | 19 in | 4 Post Head Design | Yes |
| Blade Wheel Engagement | Belt Drive | Finish | Powder Coat Paint Galvanized Steel |
| Blade Guide | By Block | Sawmill Warranty | 2 Years |
| Blade Tension | By Adjustable Lever | Engine Warranty | 1 Year |
| Blade Size | 158 x 1.3 in | Package Method | Wood |
| Blade Pitch | 7/8 in | Packing Size | 90 x 25 x 34 in |
| Blade Lubrication | Water Lube - Manual Valve | Weight (N.W./G.W.) | 790/884 lbs |
