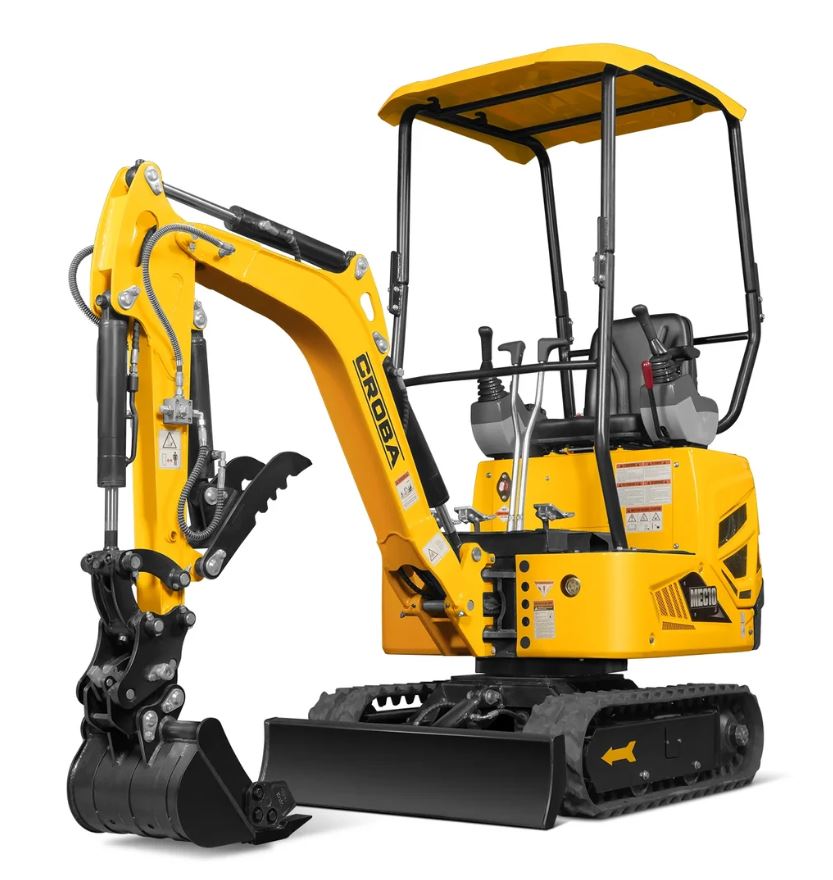

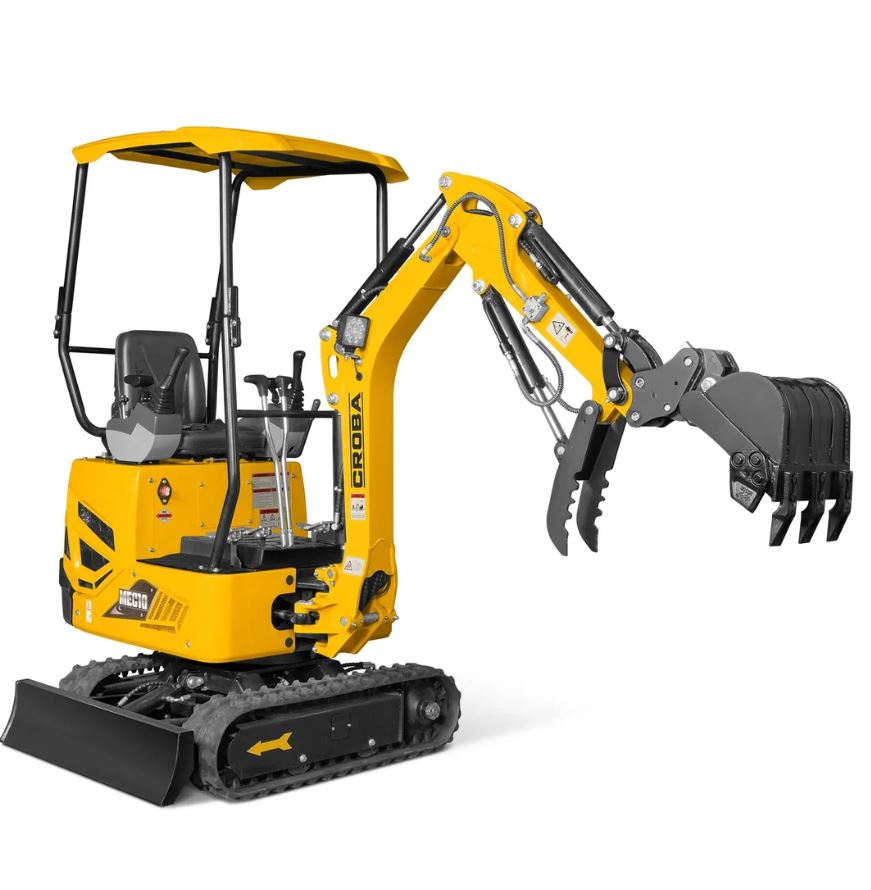

This MEC10 runs a Briggs & Stratton Vanguard 408cc single-cylinder engine rated at 14 hp and backed by a 3-year engine warranty. At 2,370 lb with a 65.7 in digging depth, it's a gas-powered mini excavator sized for landscaping, trenching, and residential site work where diesel is more machine than the job needs. An integrated dozer blade handles backfill and grading, and the boom swings left and right for digging tight to walls and foundations.

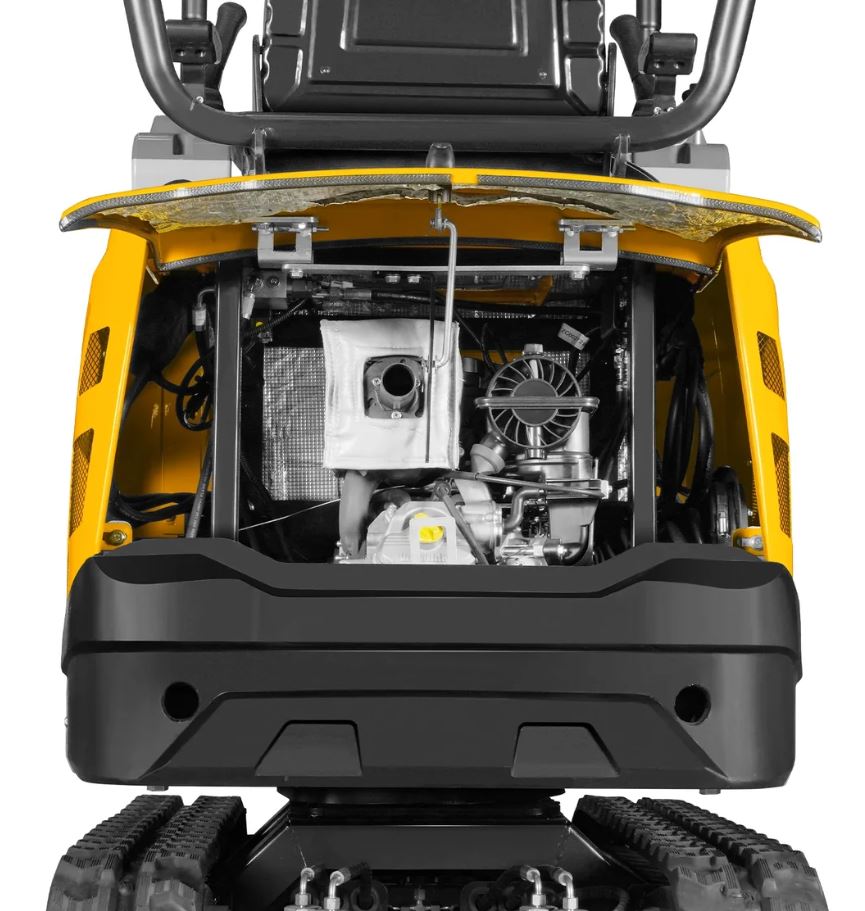

- Briggs & Stratton Vanguard 408cc single-cylinder engine, 14 hp, 3-year engine warranty
- 65.7 in max digging depth, 119 in max digging radius
- 2,370 lb operating weight
- 0.7 ft³ standard bucket, 15 in wide
- Integrated dozer blade for backfill and grading

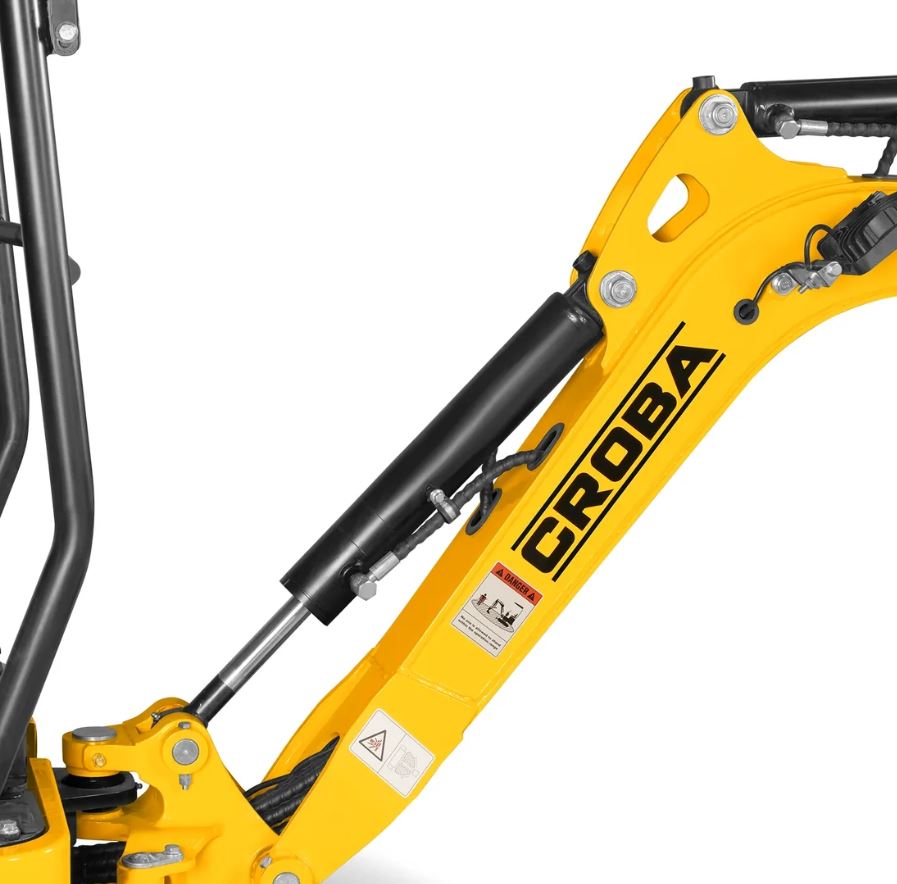

- Boom swing 53° left / 40° right for offset digging
| ENGINE | |||
| Model | Vanguard 25V000 | Displacement | 408cc |
| No.Of Cylinders | 1 | Engine Output | 14hp |
| Stroke | 2.638in | Warranty for Engine | 3-Year |
| Bore | 3.465in | Fuel Tank | 1.52 gal |
| Rated speed | 3600rpm | Engine Oil | 0.7gal |
| TRAVEL SYSTEM | |||
| Max. Travel Speed | 0.75 mile/h | Ground Pressure | 5.1psi |
| Maximum Traction Force | 3035 lbf | Gradeability - Maximum | Maximum 30 degrees |
| Ground Clearance | 15.9in | Operating Weight | 2370lbs |

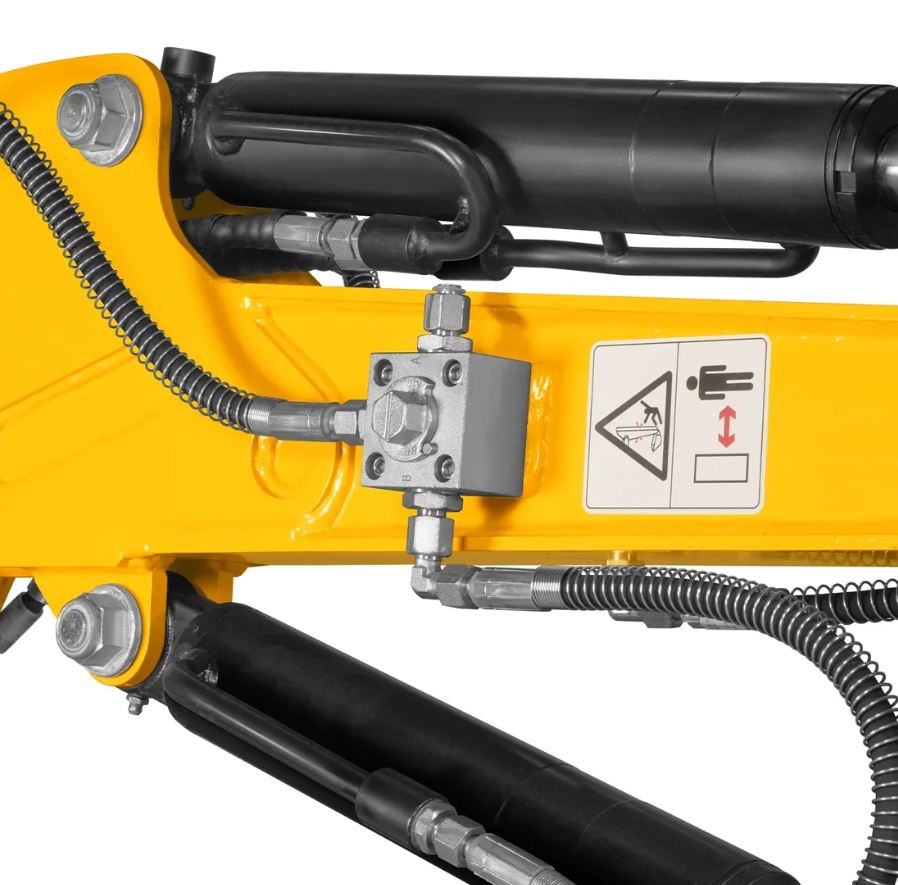

| HYDRAULIC SYSTEM | |||
| Hydraulic Oil Tank | 3.96gal | Max.Discharge Flow | 4.65 gpm |
| SWING SYSTEM | |||
| Swing Speed | 8rpm | Tail Swing Radius | 32.6in |
| DIGGING FORCE | |||
| Bucket Digging Force | 1619 lbf | Arm Digging Force | 1191 lbf |
| Bucket Capacity | 0.7 ft³ | Bucket Width | 15 in |
| SCOPE OF WORK | |||
| Max.Digging Height | 109 in | Min Turning Radius Of Working Device | 48.1in |
| Max.Dumping Height | 80 in | Max. Lifting Height Dozer Blade | 5.9in |
| Max.Digging Depth | 65.7in | Max. Depth Dozer Blade | 7.4in |
| Max.Vertical Digging Depth | 62.6in | Boom Swing - Left | 53° |
| Max Digging Radius | 119in | Boom Swing - Right | 40° |
| Max.digging Radius At Ground Level | 118.7in | ||
| DIMENSIONS | |||
| Transportation Length | 82in/115in | Crawler Wheel Base | 36in |
| Overall Width | 37in | Track Belt/Shoe Width | 7in |
| Overall Height（To Top Of Cab） | 88.5in | Track Length | 48.5in |
| Counter Weight Ground Clearance | 16in | Track Width | 37in |
| SERVICE | |||
| Package Method | Wood Case | Warranty for Machine | 1 Year |
| Packing Size | 91x40x98 in | Weight (N.W./G.W.) | 2180/2440 lbs |
