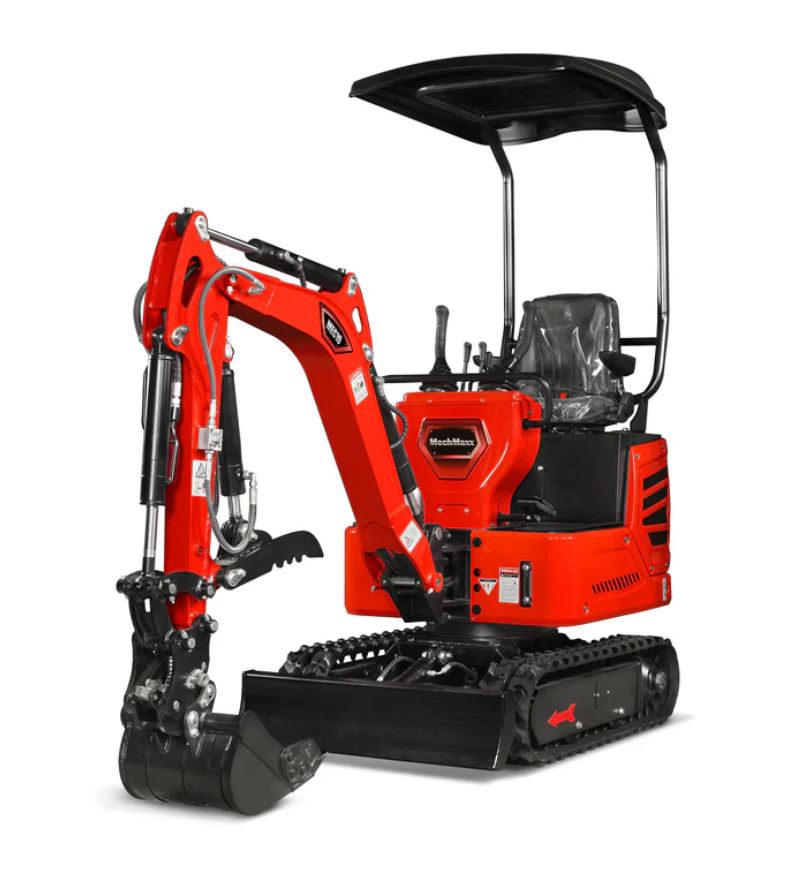

- MEC10 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
- Powered by Honda GX390 389cc 11.7HP air-cooled engine, high compression ratio for better fuel efficiency.
- Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
- 65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

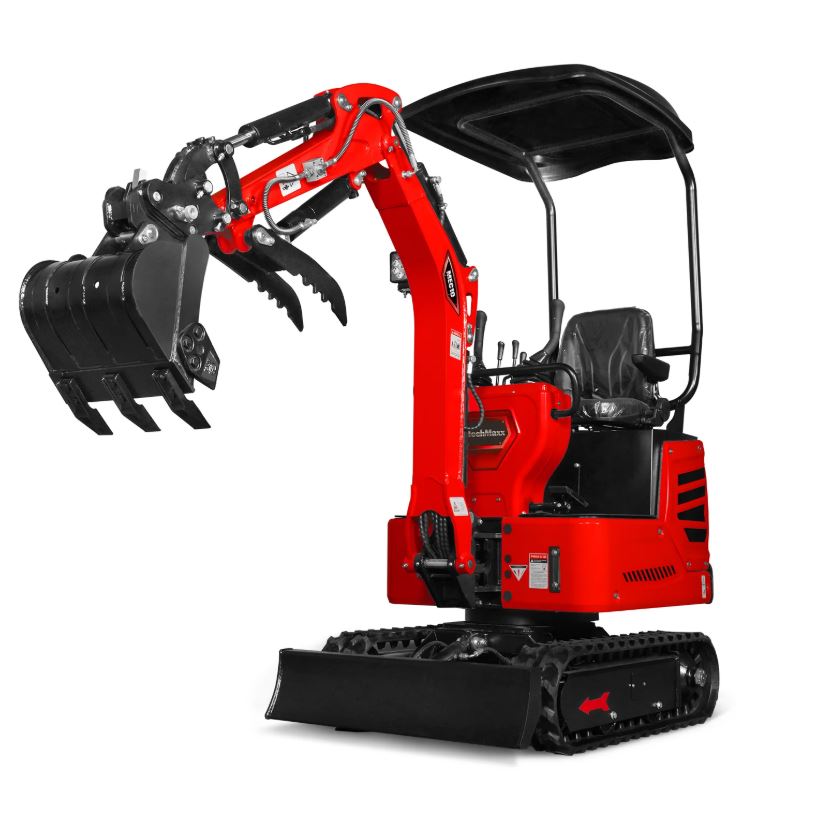

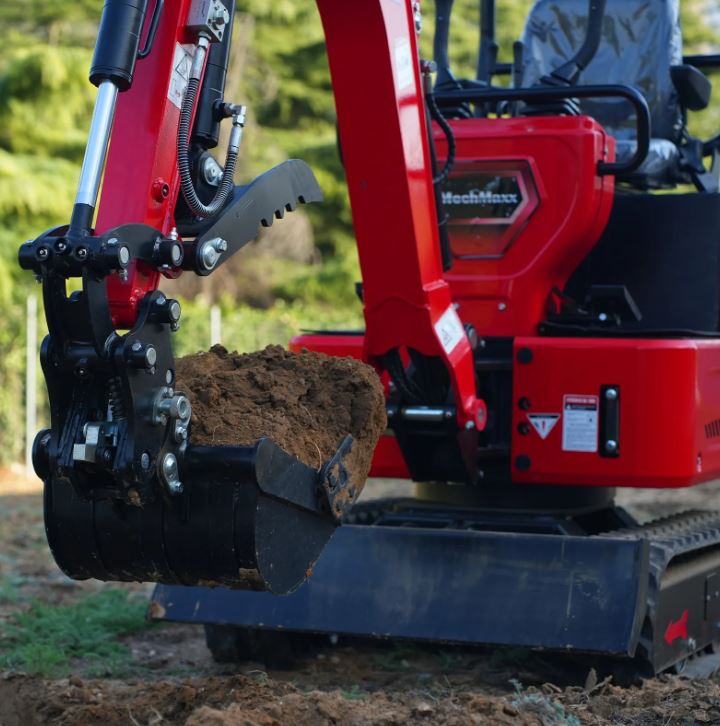

- Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
- Can rotate 360 degrees.
Note！
- The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
Specifications
|
Standard Bucket Capacity |
0.7 cu-ft |
Auxiliary Std Flow |
5.7 gal/min |
|
Standard Bucket Width |
15 in |
Max. Tractive Force |
3035 lbf |
|
Max. Travel Speed |
0.75 mile/h |
Arm Digging Force |
1191 lbf |
|
Slewing Speed |
11 rpm |
Bucket Digging Force |
1619 lbf |
|
Max. Gradeability |
30° |
Rated Lift Capacity |
728 lb |
|
Track Ground Pressure |
5.1 psi |
Lift Radius |
80 in |
|
Hydraulic Oil Tank Capacity |
3.96 gal |
Operating Weight |
2280 lb |
|

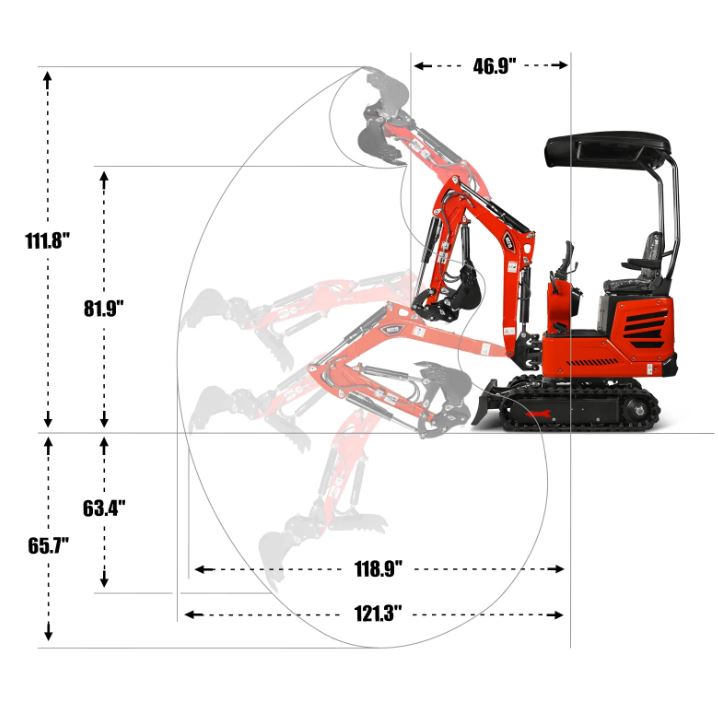

Operating Range |
|||
|
Max.Digging Radius On Ground |
119 in |
Max. Vertical Digging Depth |
63.3 in |
|
Max. Digging Depth |
65.7 in |
Min. Turning Radius |
46.8 in |
|
Overall Operating Height (Fully Raised) |
111.8 in |
Max. Lifting Height Dozer Blade |
5.9 in |
|
Max. Digging Radius |
121 in |
Max. Depth Dozer Blade |
7.4 in |
|
Max. Unloading Height |
81.8 in |
||
|

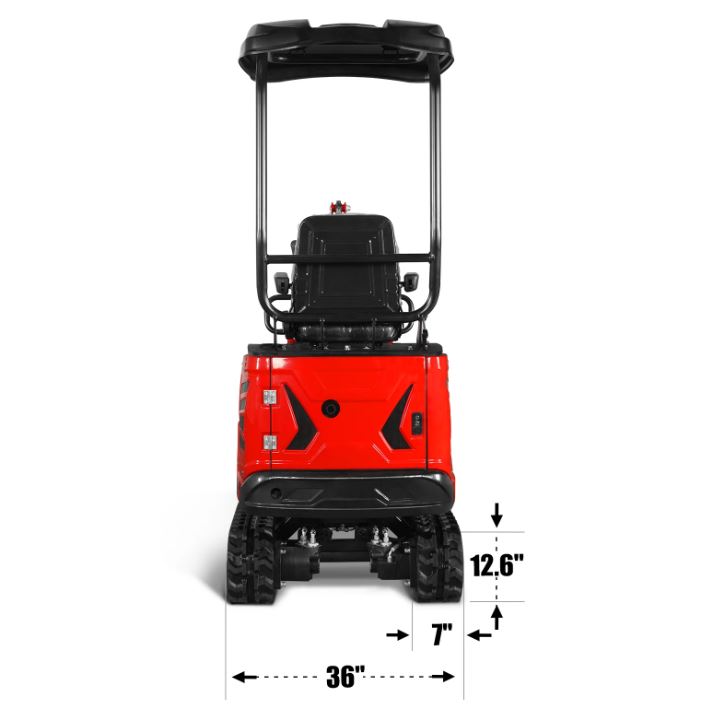

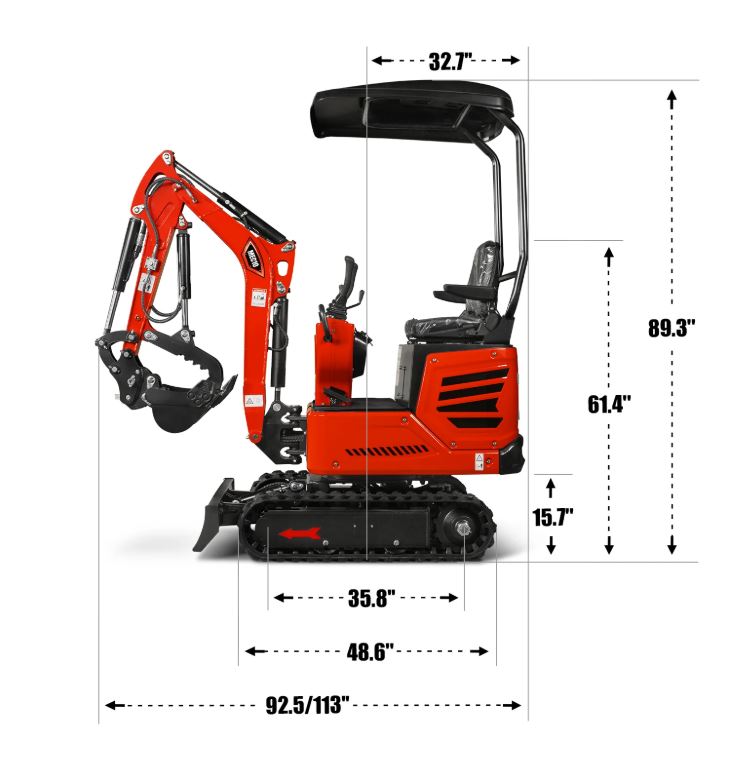

Main Dimensions |
|||
|
Wheel Track |
35.8 in |
Track Height |
12.6 in |
|
Track Length |
48.6 in |
Transportation Length |
92.5/113 in |
|
Upper Chassis Ground Clearance |
15.7 in |
Height Of Seat To Ground |
61.4 in |
|
Counterweight Turning Radius |
32.6 in |
Overall Height |
89.3 in |
|
Chassis Width |
36 in |
Boom Swing-Right |
40° |
|
Track Width |
7 in |
Boom Swing-Left |
53° |
|
Engine |
|||
|
Model |
Honda GX390 |
Max. Net Torque |
26.5 N.m/2500 RPM |
|
Displacement |
389 cc; 11.7 HP |
Fuel Tank Capacity |
1.6 gal |
|
Engine Type |
4-stroke, overhead valve, single cylinder |
Engine Oil Capacity |
0.3 gal |
|
Start Type |
Electric start |
Engine Oil Type |
10W-30 |
|
Rated Power |
8.7 KW/3600 RPM |
Warranty |
1 Year |
|

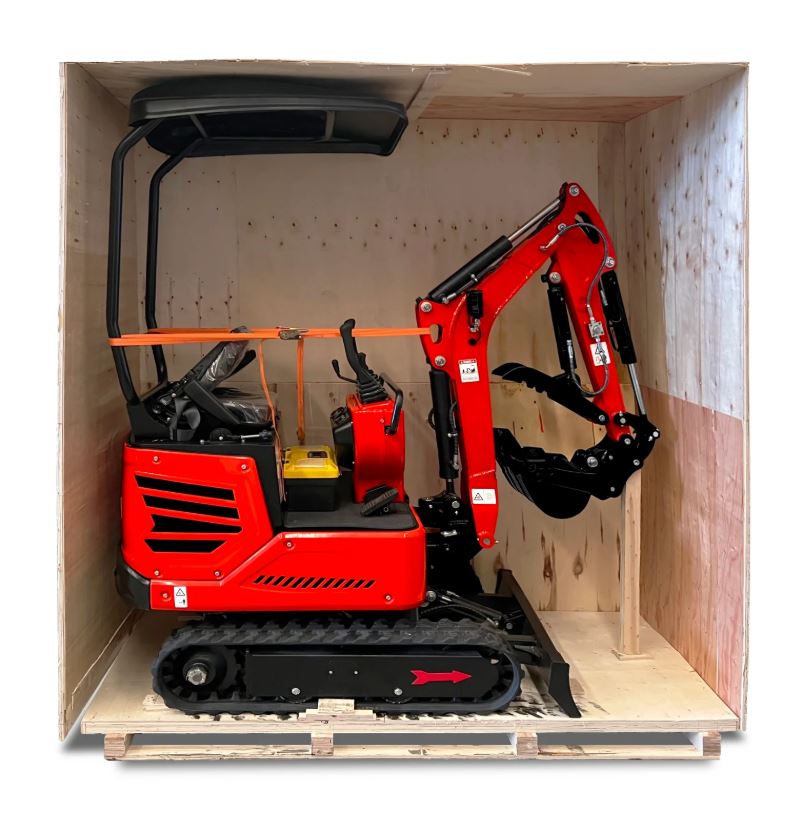

Package |
|||
|
Package Method |
Plywood Case |
Weight (N.W./G.W.) |
2100/2376 lb |
|
Dimensions |
91x40x98 in |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
