Model: 4032-6 / Three-Level 6-Car Storage Lift / 18,000 lb. Capacity / Extended Length, Width & Height / 251.46″ L × 185″ W / Ships Free
Model: 4032-6. Designed for high-capacity, three-level vehicle storage with U-Platform and L-Platform configuration. Features a heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety.

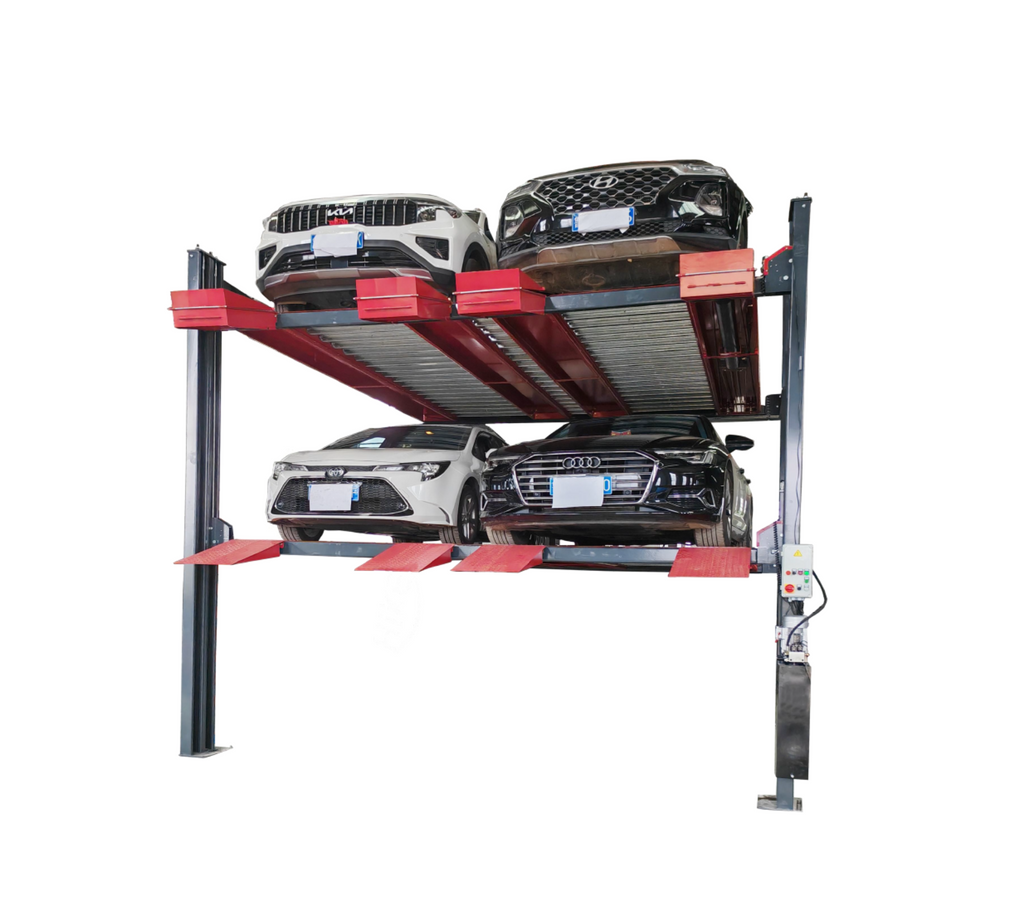

Expand your parking space with the 4032-6 Car Stacking lift!
The Six-Stacker is designed to stack and store four vehicles in one parking space. Maximizes vertical space by stacking vehicles across one ground level and three elevated platforms. Ideal for residential, commercial, and fleet applications where space efficiency is critical. Features reliable mechanical operation, automatic locking at every level, and simple push-button or key-switch control.
Lifting Capacity (U-Platform): 9,000 lbs. | Lifting Capacity (L-Platform): 9,000 lbs. Overall Height: 168"| Overall Width: 212.4" | Overall Length: 196.85″
*Special Order Only. See Company Policies for more details.

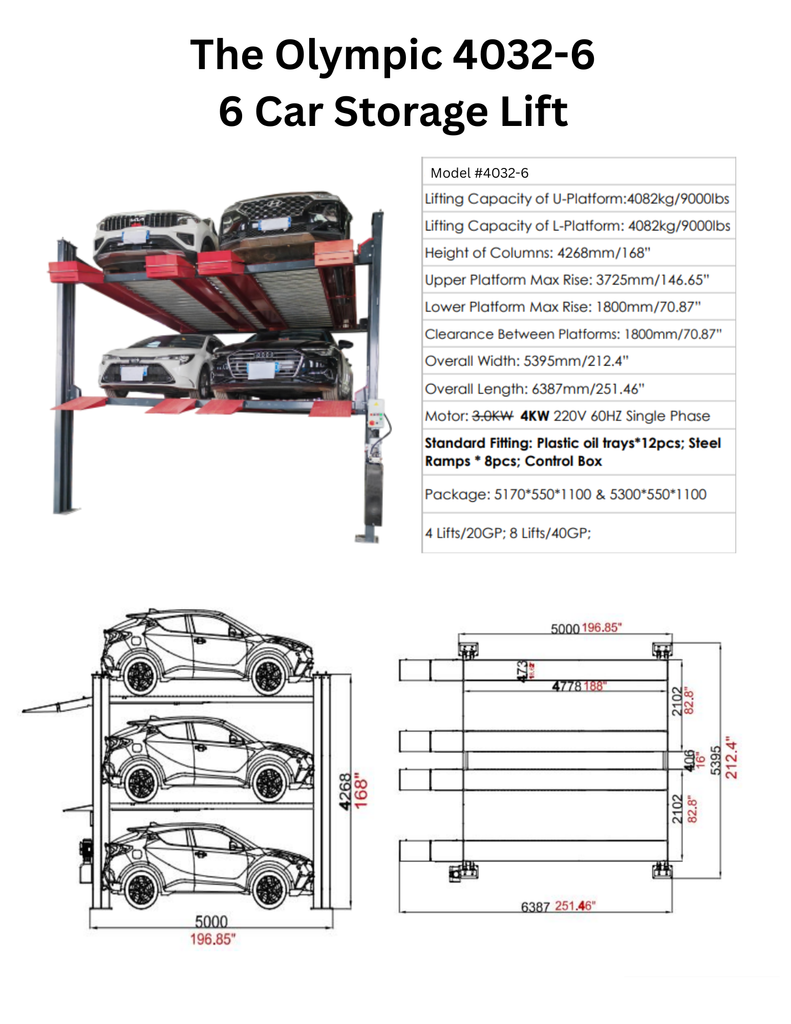

Specifications
| Product | Three-Level 6-Car Storage Lift |
|---|---|
| Model | 4032-6 |
| Lifting Capacity (U-Platform) | 9,000 lbs |
| Lifting Capacity (L-Platform) | 9,000 lbs |
| Height of Columns | 168″ |
| Upper Platform Max Rise | 147.44″ |
| Lower Platform Max Rise | 70.87″ |
| Clearance Between Platforms | 70.87″ |
| Column-to-Column Distance | 196.85″ |
| Drive-Thru Clearance | 171.57″ |
| Overall Width | 212.4″ |
| Overall Length | 251.46″ |
| Runway Length | 188″ |
| Park Width | 74.96″ |
| Runway Width | 212.4″ |
| Release Mode | Electric |
| Lock System | All-way anti-falling |
| Control | Button control |
| Surface Treatment | Powder coated |
| POWER UNIT | 220V / 5.5HP / 4.0 KW / 60Hz / 1 Ph. |
