INTRODUCING THE "Double Stacker" 6,000 lb. Two-Post Hydraulic StoRAGE Lift
Special order only. Choose your colors!

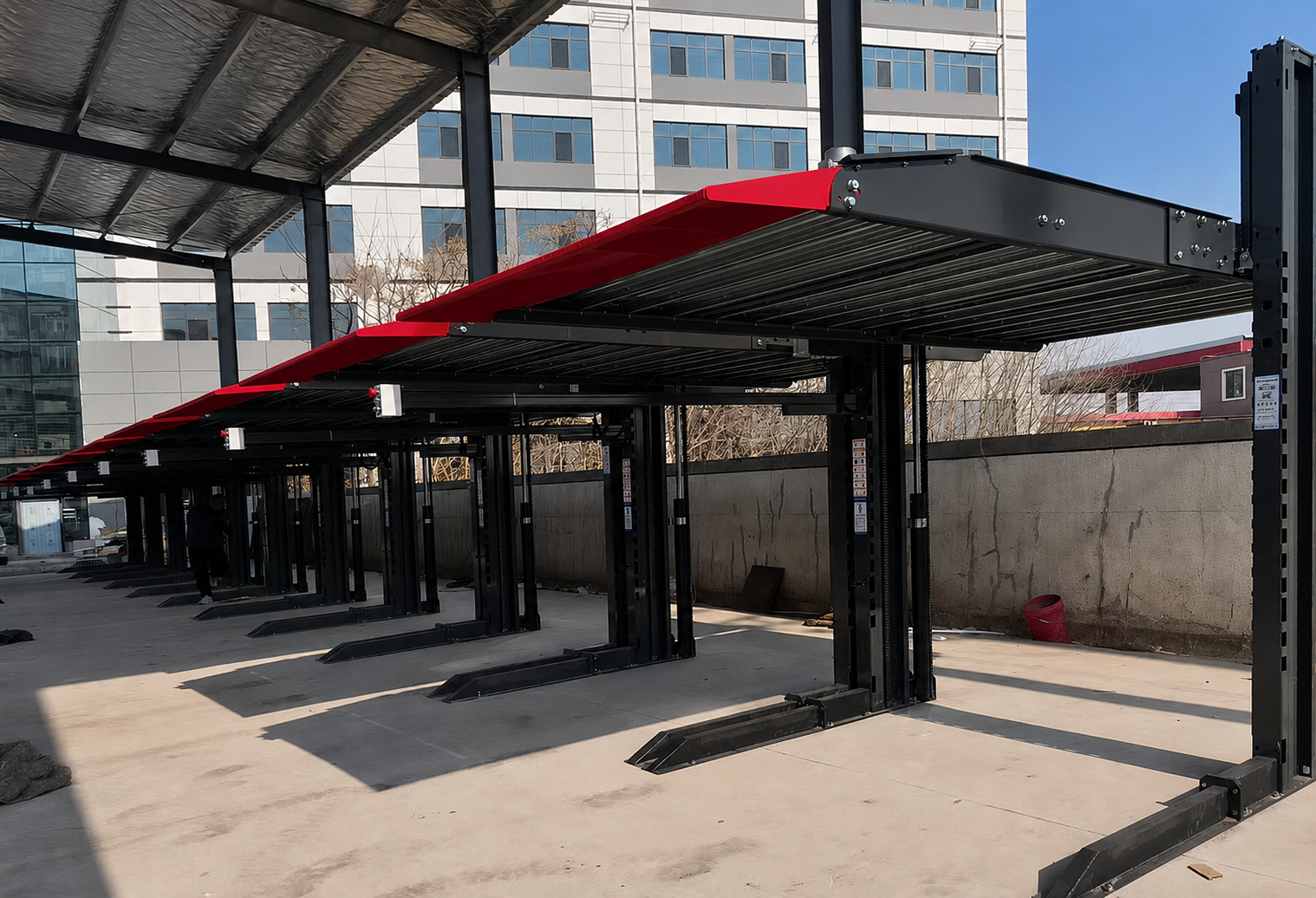

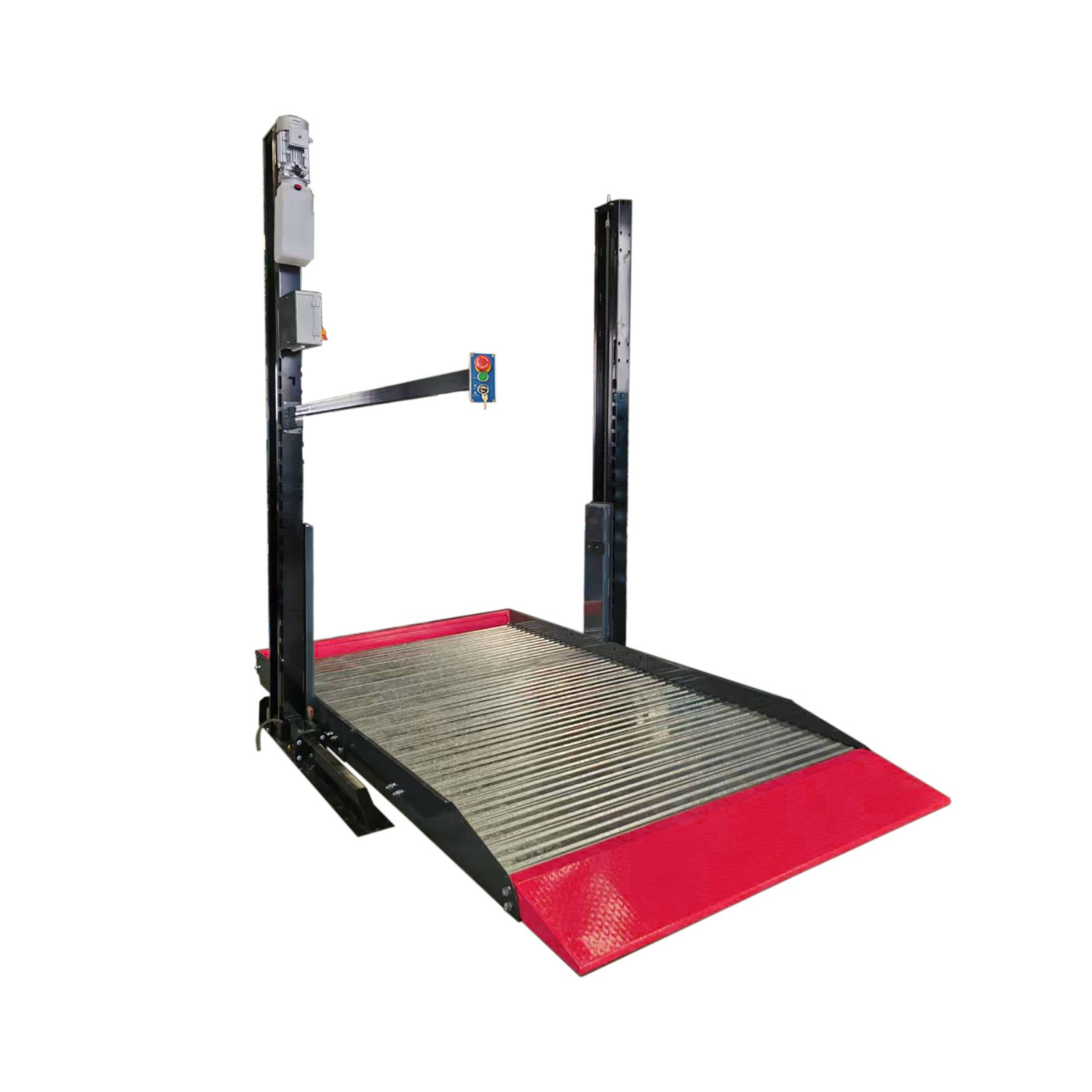

NEW FOR 2026. The "Double Stacker" is Olympic Equipment's premium two-post parking lift engineered for safe, reliable long-term vehicle storage. Featuring dual hydraulic cylinders synchronized by heavy-duty steel chains, automatic mechanical safety locks, and smooth push-button operation, it delivers commercial-grade performance while maximizing valuable parking space.
Perfect for collectors, residential garages, dealerships, fleet storage, apartment complexes, and commercial parking facilities.
Capacity: 6,000 lbs. | Platform Length: 162.9" | Drive-Thru Width: 88" | Lifting Height: 82.68"
Key Features
- Industry Best 10-Year Warranty
- 6,000 lb. lifting capacity
- Designed for residential and commercial parking applications

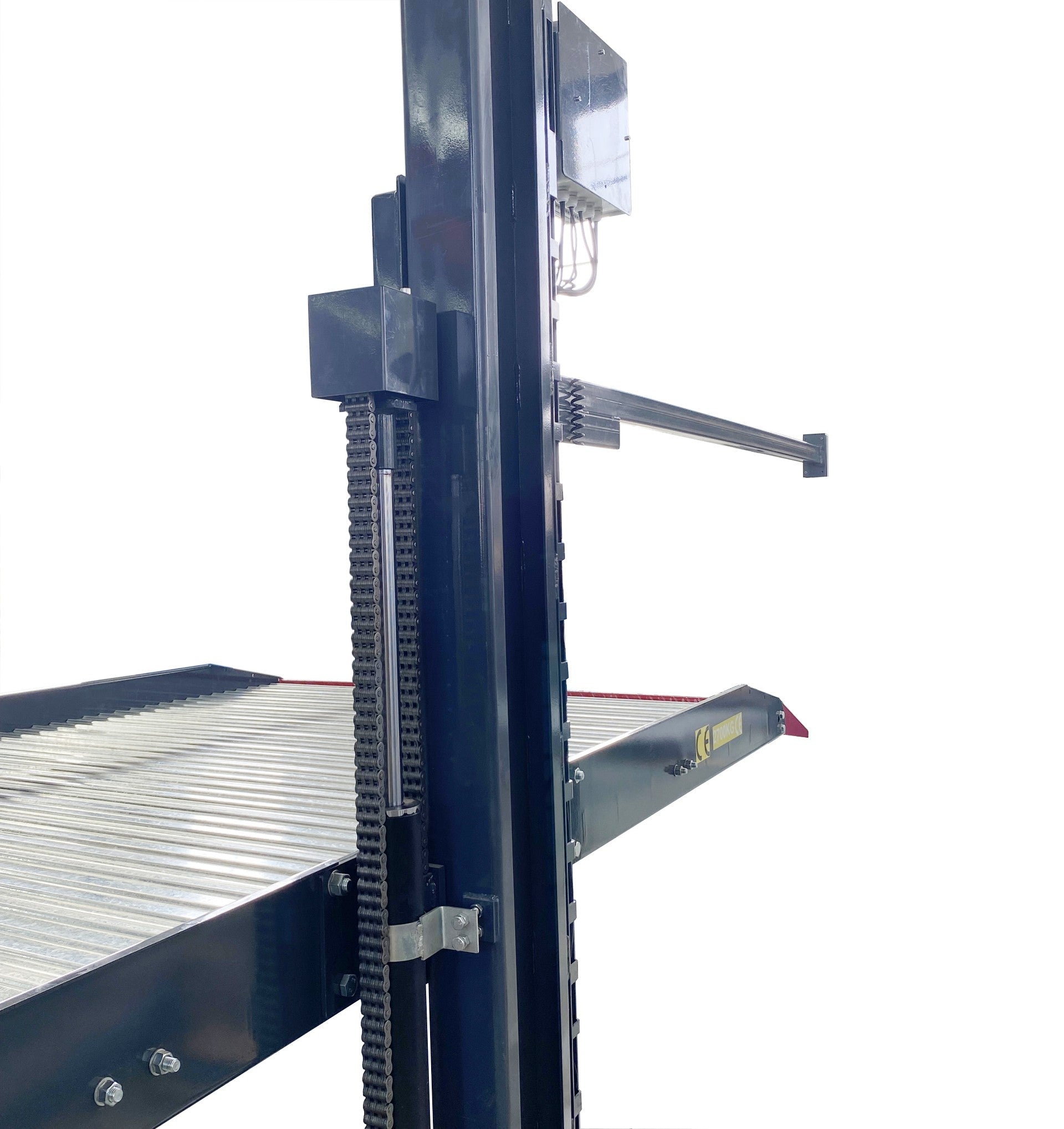

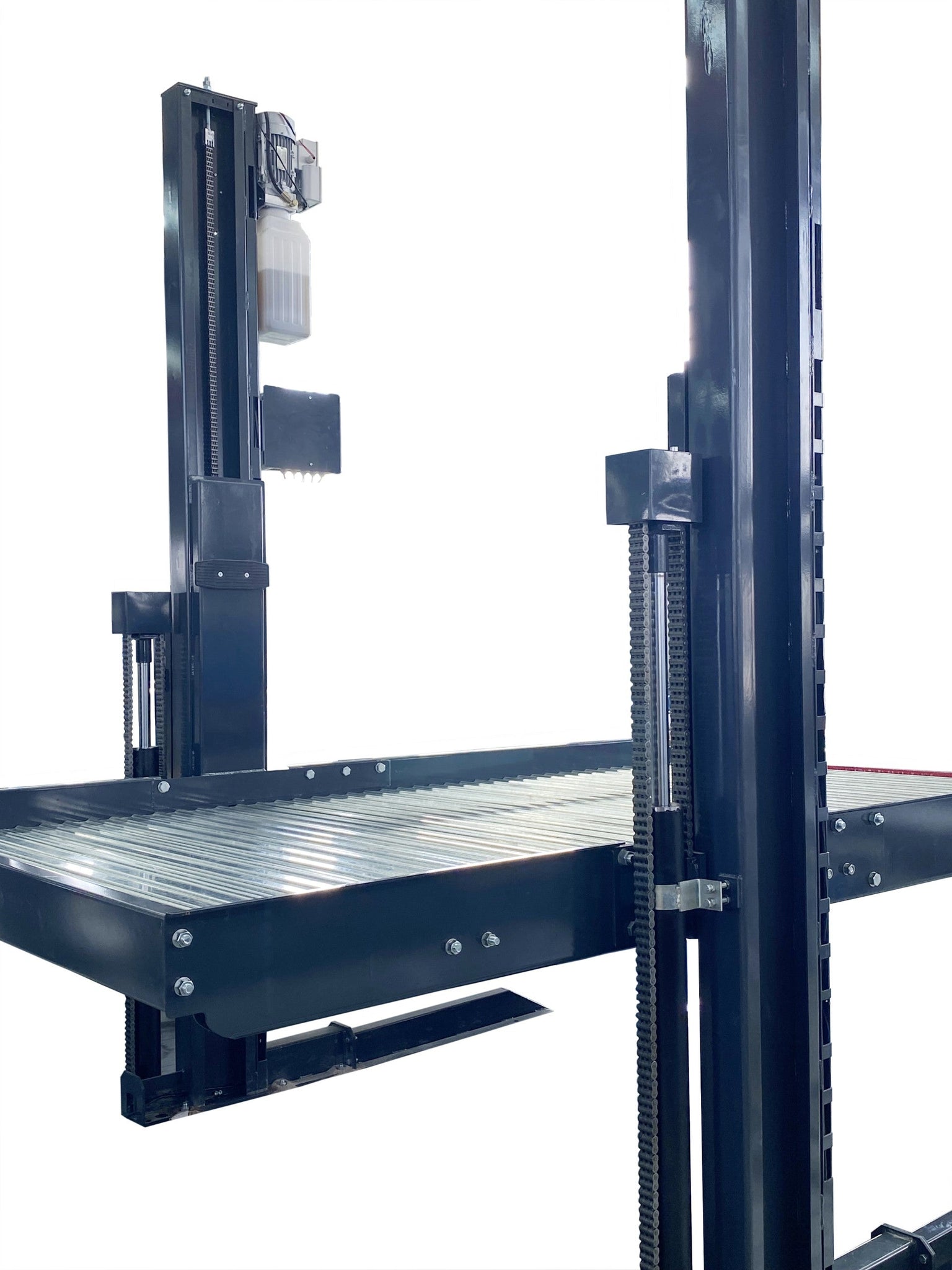

- Dual hydraulic cylinders with synchronized steel-chain lifting system
- Automatic mechanical safety locks
- Multiple locking heights accommodate different vehicles and ceiling heights
- Commercial-grade Q235 structural steel construction
- Smooth, quiet hydraulic lifting operation
- Heavy-duty powder-coated finish

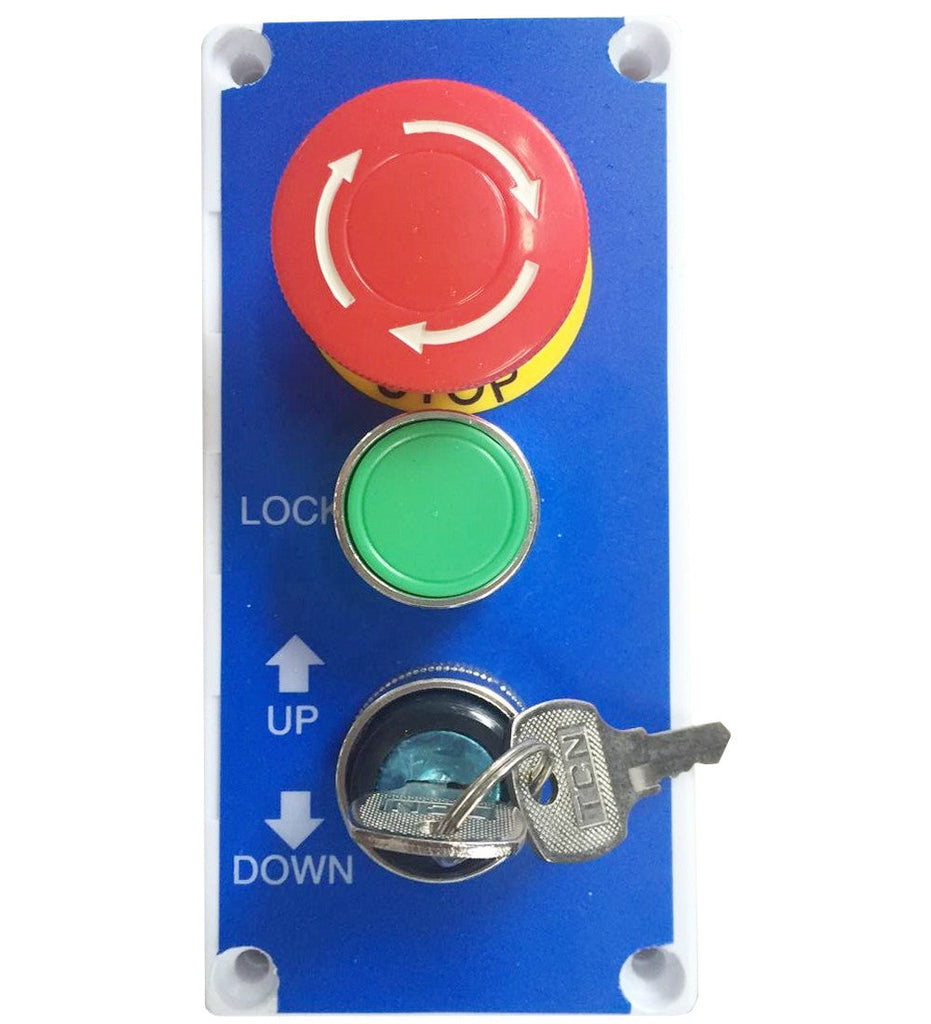

- Electric push-button controls with keyed security switch
- Automatic lock release system
- 2.2KW hydraulic power unit
- 82.68" lifting height
- 88" drive-through width
- 162.9" platform length
- 101" overall width
- 139.8" overall height
- Compatible with post-sharing parking layouts
- Laser-cut precision manufactured components
- Commercial-grade extended carriage design for improved stability
- Premium Aston hydraulic seals for reduced noise and leak-free operation
- Certified & tested before shipment
Specifications
| Style | 2-Post Hydraulic Parking Lift |
|---|---|
| Model Number | 2PDS-6 "2-Post Double Stacker 6,000" |
| Capacity | 6,000 lbs. (2,700 kg) |
| Overall Height | 139.8" |
| Overall Width | 101" |
| Platform Length | 162.9" |
| Platform Width | 82.68" |
| Drive-Through Width | 88" |
| Lifting Height | 82.68" |
| Support Length | 99" |
| Recommended Wall Clearance | 31.5" |
| Rear Platform Extension | 38.2" |
| Motor | 2.2KW Hydraulic Power Unit (110V / 220V / 380V) |
| Lift System | Dual Hydraulic Cylinders with Steel Chain Synchronization |
| Lock System | Automatic Mechanical Safety Locks |
| Steel Type | Q235 Structural Steel |
| Post Thickness | 4.75mm |
| Platform Thickness | 2mm Steel Wave Plate |
| Finish | Heavy-Duty Powder Coated |
| Controls | Push Button with Key Switch |
Why Choose The Vault?
The Olympic Equipment "Double Stacker" is engineered for customers who need maximum parking efficiency without sacrificing safety or reliability. Whether you're storing collector cars, increasing dealership inventory, or expanding parking capacity in a commercial facility, The Vault delivers dependable hydraulic performance, commercial-grade construction, and long-term durability backed by Olympic Equipment's industry-leading 10-Year Warranty.
